Order By Duct Opening Measurements
16" X 20" AirGrilles.com Heavy Duty Steel Return Air Filter Grille [Removable Face/Door] for 1-inch Filters HVAC Duct Cover Grill, White | Outer Dimensions: 18 5/8"W X 22 5/8"H for 16x20 Duct Opening

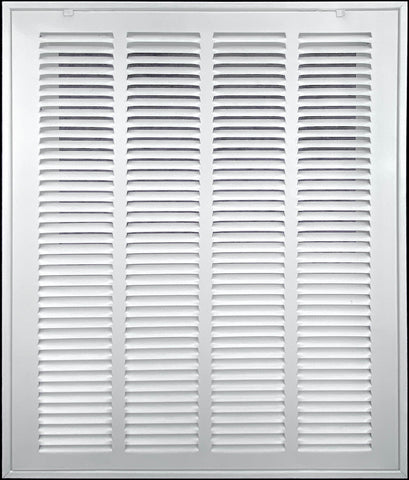

Return Air Filter Grille for 16"x20" Duct Opening, White, Steel
* 1/2"spaced fins set at 40 degrees.
* Effectively conceals filter.
* Use standard 1" thick disposable filters (not included).
* Removable face for easy installation and cleaning.
* Equipped with adjustable filter retainers.
* Primary use: Side wall and ceiling.
* Screws are included with the system, standard.
* Sturdy construction with Heavy Duty thicker steel.
* Durable white powder coated.
* Standard color is white (Ral9016).
How To Measure A Grille
Always measure the size of the duct opening (the "hole" in the duct/wall). Do not measure the entire size of the register itself. Each grille has a front face frame, that will overlay at wall joint. Entire outer size of the grille is; listed size +2 5/8-inch.
Understanding Width & Height
In a grille size, the first number always represents the width and the second one is the height. As an Example: If the hole on your wall/duct is 16" wide by 20" tall, order a 16x20. If the hole is 20" wide by 16" tall, order an 20x16.
For this particular product you're viewing at the moment, the hole on your wall/duct opening should be 16"Wx20"H.
Click the 'Add To Cart' button now to order your Return Air Filter Grille!
