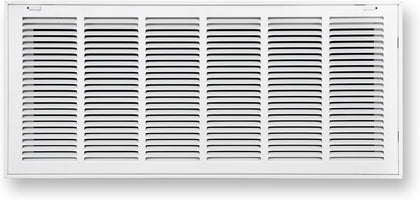

Steel Return Filter Grilles / Removable Door

4.9 186 reviews Steel Return Filter Grilles / Removable Door

Removable door for the fastest filter change and cleaning access.
40-degree angled fins for maximum airflow; stamped with no sharp edges.
Widths from 8 to 32 inches, heights from 6 to 32 inches, in black and white.
Bulk pricing up to 30%, with custom production on 500+ unit projects.

Performance Data model 110202, all sizes

Only the sizes offered for this model are listed. Values are given across face velocities (FPM). A_k = effective area, A_n = neck area. Static pressure in inches of water gauge (in. w.g.); throw in feet. A dash (–) means the value is not published.
Duct Size (in)	A_k (sq ft)	Metric	Face Velocity (FPM)
Duct Size (in)	A_k (sq ft)	Metric	300.0	400.0	500.0	600.0
14×6	0.39	Air Volume (CFM)	117	156	195	234
14×6	0.39	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.076
12×12	0.67	Air Volume (CFM)	201	268	335	402
12×12	0.67	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
14×14	0.9	Air Volume (CFM)	270	360	450	540
14×14	0.9	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
20×10	0.9	Air Volume (CFM)	276	368	460	552
20×10	0.9	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
20×12	1.1	Air Volume (CFM)	330	440	550	660
20×12	1.1	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
14×20 / 20×14	1.28	Air Volume (CFM)	384	512	640	768
14×20 / 20×14	1.28	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
24×12	1.3	Air Volume (CFM)	390	520	650	780
24×12	1.3	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
16×20 / 20×16	1.45	Air Volume (CFM)	435	580	725	870
16×20 / 20×16	1.45	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
18×18	1.47	Air Volume (CFM)	441	588	735	882
18×18	1.47	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
14×24 / 24×14	1.53	Air Volume (CFM)	459	612	765	918
14×24 / 24×14	1.53	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
30×12	1.65	Air Volume (CFM)	495	660	825	990
30×12	1.65	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.07
16×25 / 20×20	1.81	Air Volume (CFM)	543	724	905	1086
16×25 / 20×20	1.81	Static Pressure (in. w.g.)	0.016	0.032	0.052	0.072
14×30	1.9	Air Volume (CFM)	570	760	950	1140
14×30	1.9	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.072
24×18	1.95	Air Volume (CFM)	585	780	975	1170
24×18	1.95	Static Pressure (in. w.g.)	0.016	0.031	0.048	0.071
24×20	2.18	Air Volume (CFM)	654	872	1090	1308
24×20	2.18	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
20×25 / 25×20	2.25	Air Volume (CFM)	675	900	1125	1350
20×25 / 25×20	2.25	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
24×24	2.59	Air Volume (CFM)	777	1036	1295	1554
24×24	2.59	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
20×30 / 30×20	2.7	Air Volume (CFM)	810	1080	1350	1620
20×30 / 30×20	2.7	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.064

Performance Data model 110203, all sizes

Only the sizes offered for this model are listed. Values are given across face velocities (FPM). A_k = effective area, A_n = neck area. Static pressure in inches of water gauge (in. w.g.); throw in feet. A dash (–) means the value is not published.
Duct Size (in)	A_k (sq ft)	Metric	Face Velocity (FPM)
Duct Size (in)	A_k (sq ft)	Metric	300.0	400.0	500.0	600.0
14×6	0.39	Air Volume (CFM)	117	156	195	234
14×6	0.39	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.076
12×12	0.67	Air Volume (CFM)	201	268	335	402
12×12	0.67	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
14×14	0.9	Air Volume (CFM)	270	360	450	540
14×14	0.9	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
20×10	0.9	Air Volume (CFM)	276	368	460	552
20×10	0.9	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
20×12	1.1	Air Volume (CFM)	330	440	550	660
20×12	1.1	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
14×18	1.15	Air Volume (CFM)	345	460	575	690
14×18	1.15	Static Pressure (in. w.g.)	0.019	0.032	0.052	0.07
14×20 / 20×14	1.28	Air Volume (CFM)	384	512	640	768
14×20 / 20×14	1.28	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
24×12	1.3	Air Volume (CFM)	390	520	650	780
24×12	1.3	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
16×20 / 20×16	1.45	Air Volume (CFM)	435	580	725	870
16×20 / 20×16	1.45	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
18×18	1.47	Air Volume (CFM)	441	588	735	882
18×18	1.47	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
14×24 / 24×14	1.53	Air Volume (CFM)	459	612	765	918
14×24 / 24×14	1.53	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
30×12	1.65	Air Volume (CFM)	495	660	825	990
30×12	1.65	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.07
16×25 / 20×20	1.81	Air Volume (CFM)	543	724	905	1086
16×25 / 20×20	1.81	Static Pressure (in. w.g.)	0.016	0.032	0.052	0.072
14×30	1.9	Air Volume (CFM)	570	760	950	1140
14×30	1.9	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.072
24×18	1.95	Air Volume (CFM)	585	780	975	1170
24×18	1.95	Static Pressure (in. w.g.)	0.016	0.031	0.048	0.071
24×20	2.18	Air Volume (CFM)	654	872	1090	1308
24×20	2.18	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
20×25 / 25×20	2.25	Air Volume (CFM)	675	900	1125	1350
20×25 / 25×20	2.25	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
24×24	2.59	Air Volume (CFM)	777	1036	1295	1554
24×24	2.59	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
20×30 / 30×20	2.7	Air Volume (CFM)	810	1080	1350	1620
20×30 / 30×20	2.7	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.064

Item No:	Nominal Size	Size (Duct Opening)	Model	Slots	Neck Size	Actual Size	Material	Outer Dimensions	Color	Airflow Direction	Type	Bulk Pricing						Order
Item No:	Nominal Size	Size (Duct Opening)	Model	Slots	Neck Size	Actual Size	Material	Outer Dimensions	Color	Airflow Direction	Type	1	2-10	11-20	21-49	50+	100+	Order

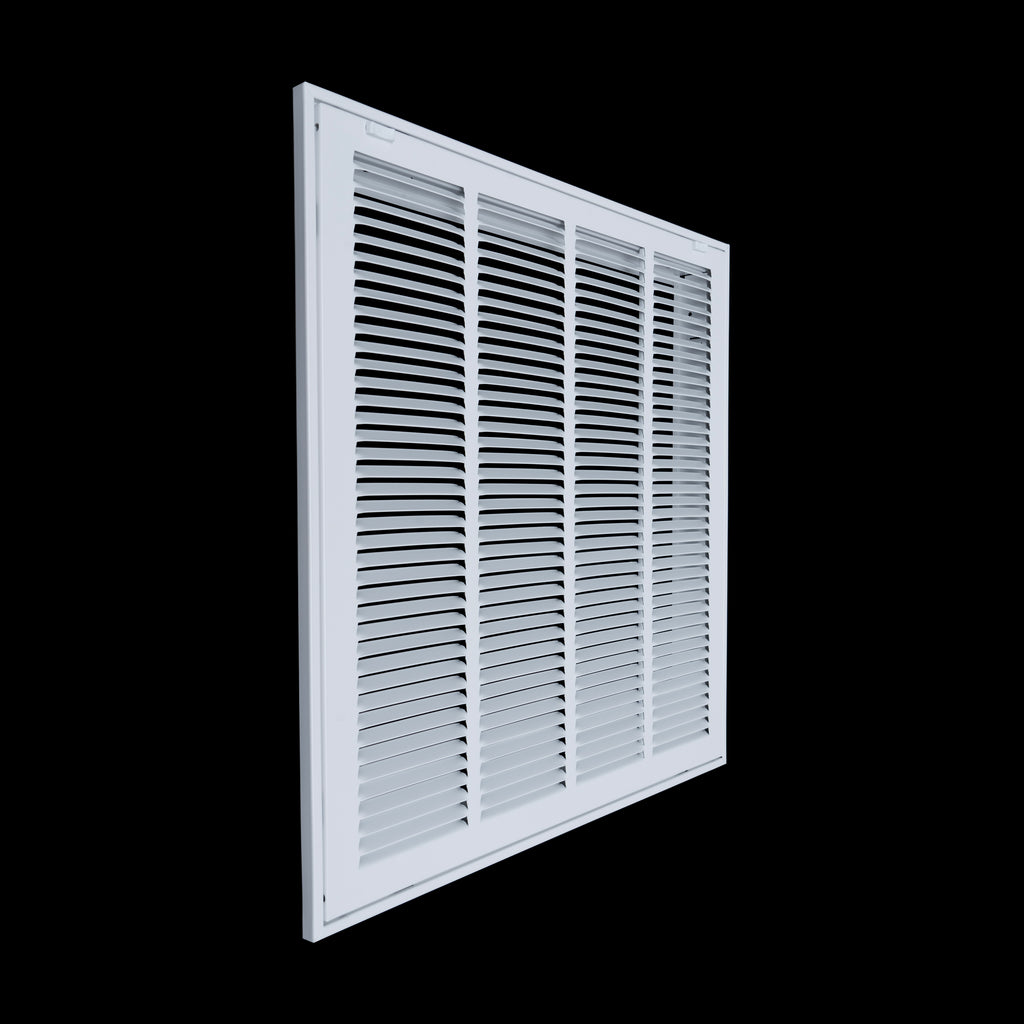

110203-14 20x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	20x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		20"W x 20"HFilter-ready					Steel	22-5/8"W X 22-5/8"H	White			$31.19Filter-ready	$29.64	$29.64	$29.64	$29.64		Quantity for 20x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 1133 in stock

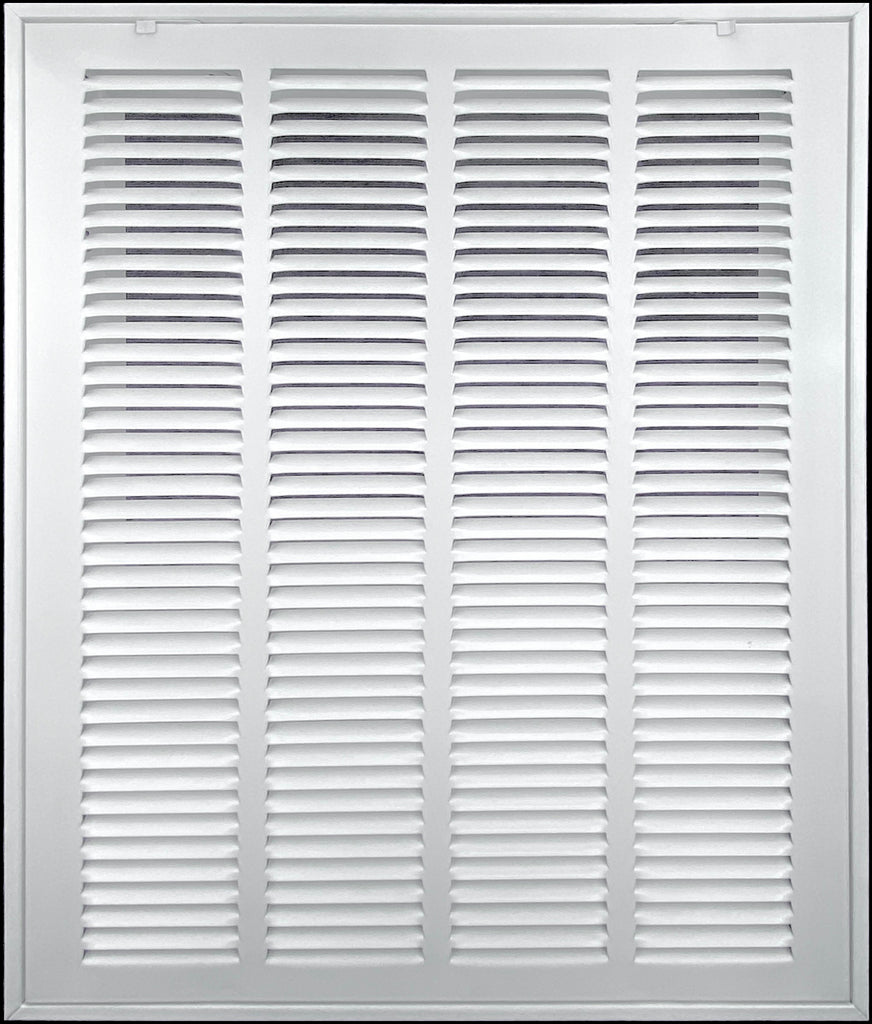

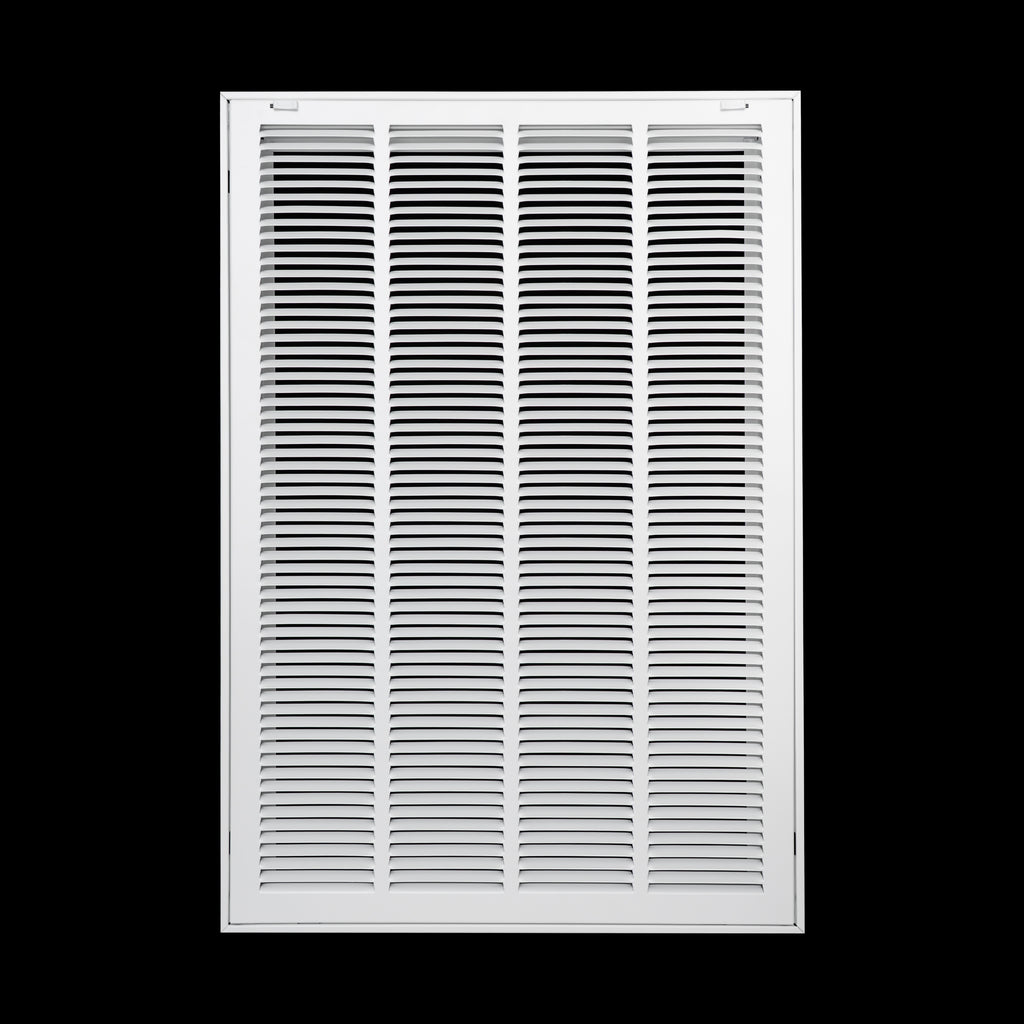

110203-16 20x30 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	20x30 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		20"W x 30"HFilter-ready					Steel	22-5/8"W X 32-5/8"H	White			$56.19Filter-ready	$53.39	$53.39	$53.39	$53.39		Quantity for 20x30 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 114 in stock

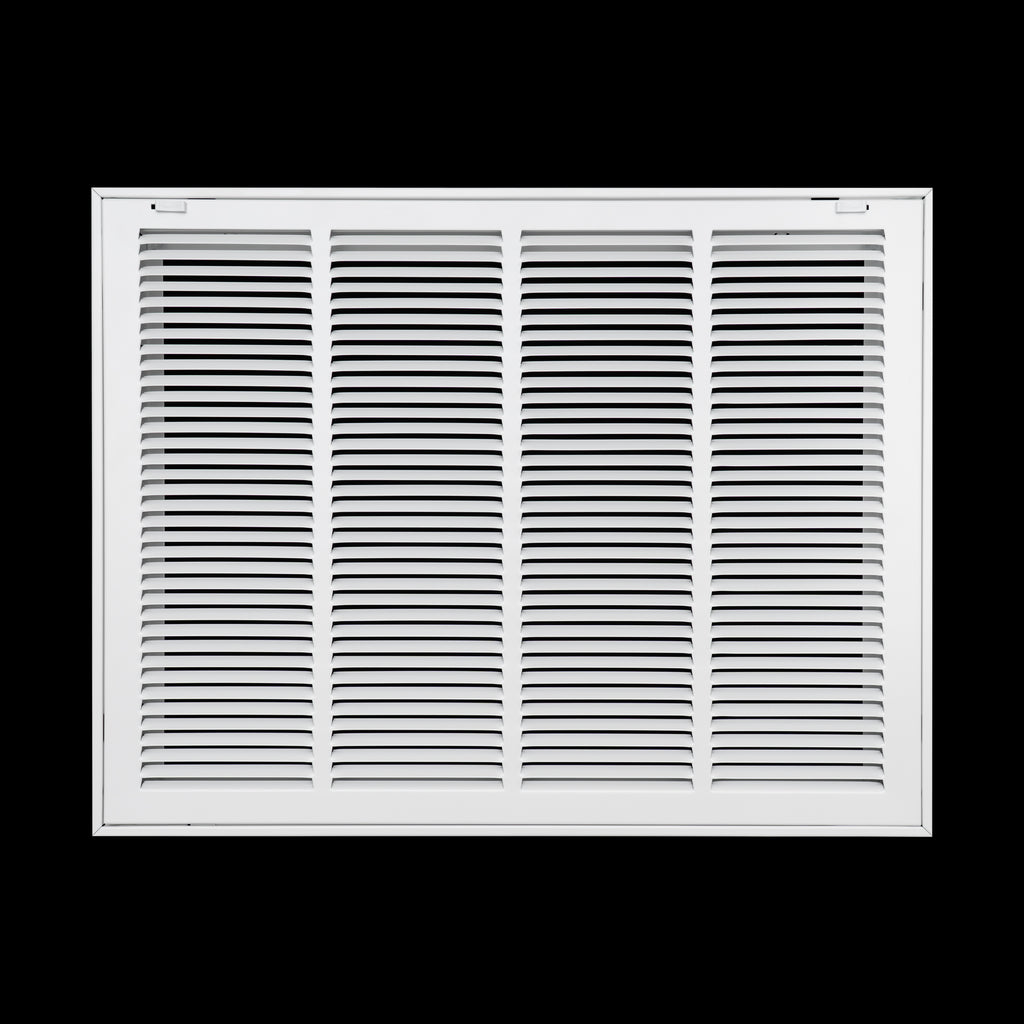

110203-19 24x18 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	24x18 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		24"W x 18"HFilter-ready					Steel	26-5/8"W X 20-5/8"H	White			$45.09Filter-ready	$42.84	$42.84	$42.84	$42.84		Quantity for 24x18 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 80 in stock

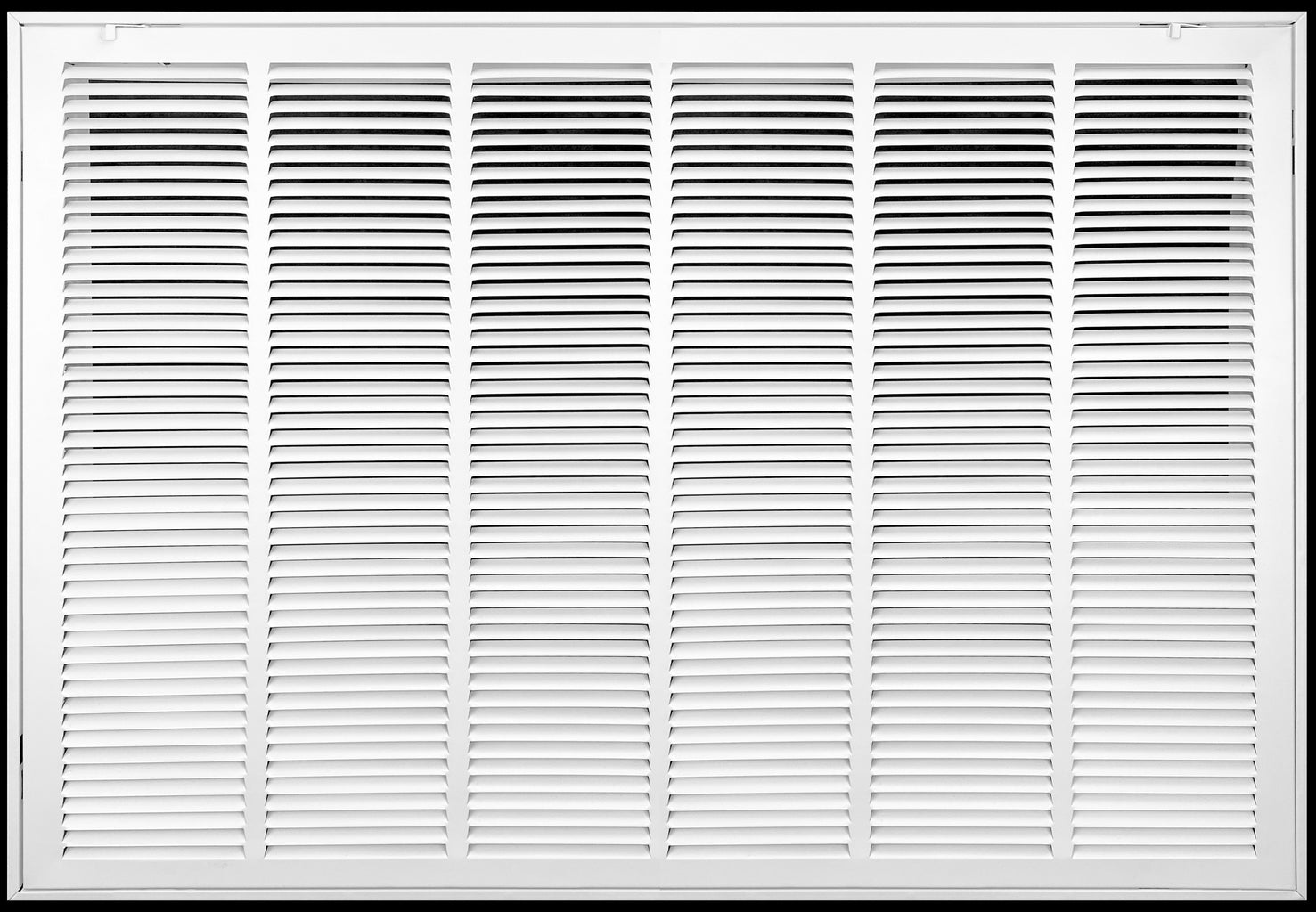

110203-24 30x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	30x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		30"W x 20"HFilter-ready					Steel	32-5/8"W X 22-5/8"H	White			$47.49Filter-ready	$45.12	$45.12	$45.12	$45.12		Quantity for 30x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 212 in stock

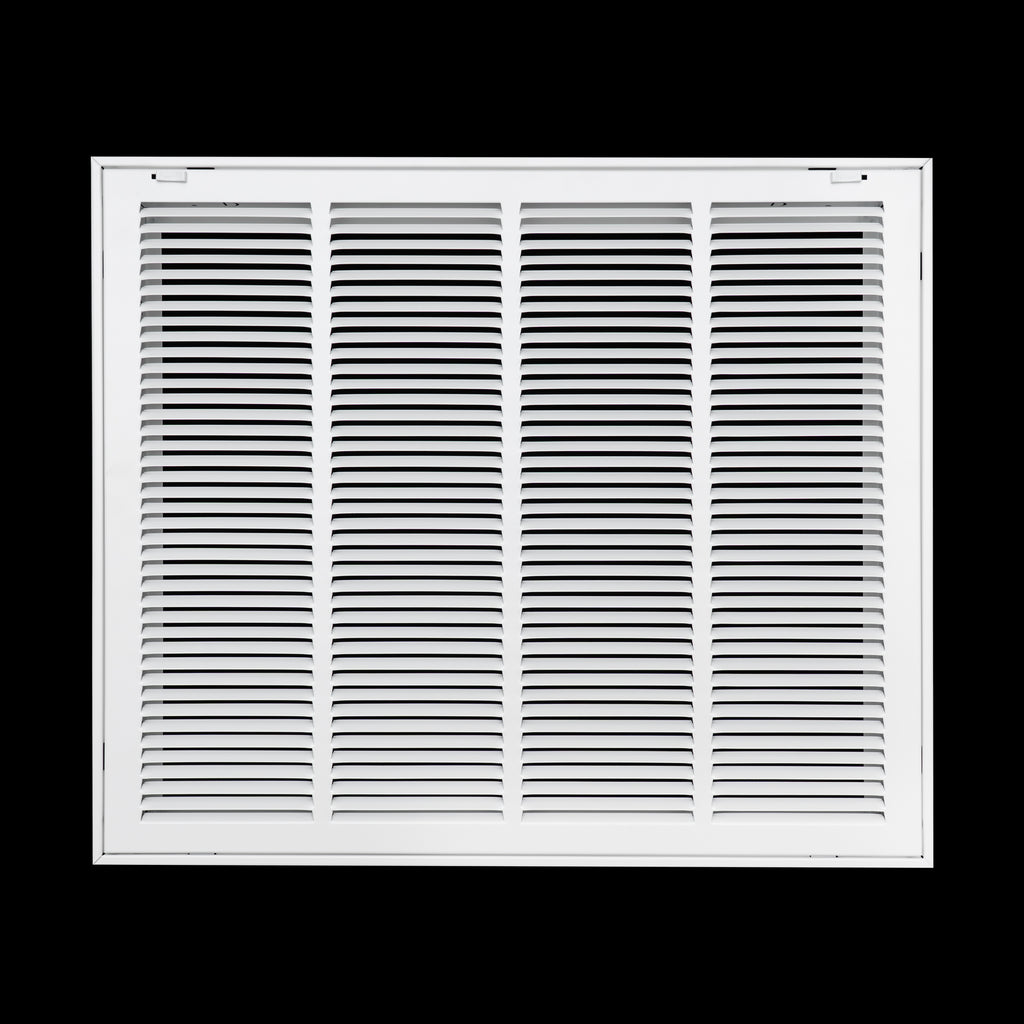

110203-20 24x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	24x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		24"W x 20"HFilter-ready					Steel	26-5/8"W X 22-5/8"H	White			$45.09Filter-ready	$42.84	$42.84	$42.84	$42.84		Quantity for 24x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 58 in stock

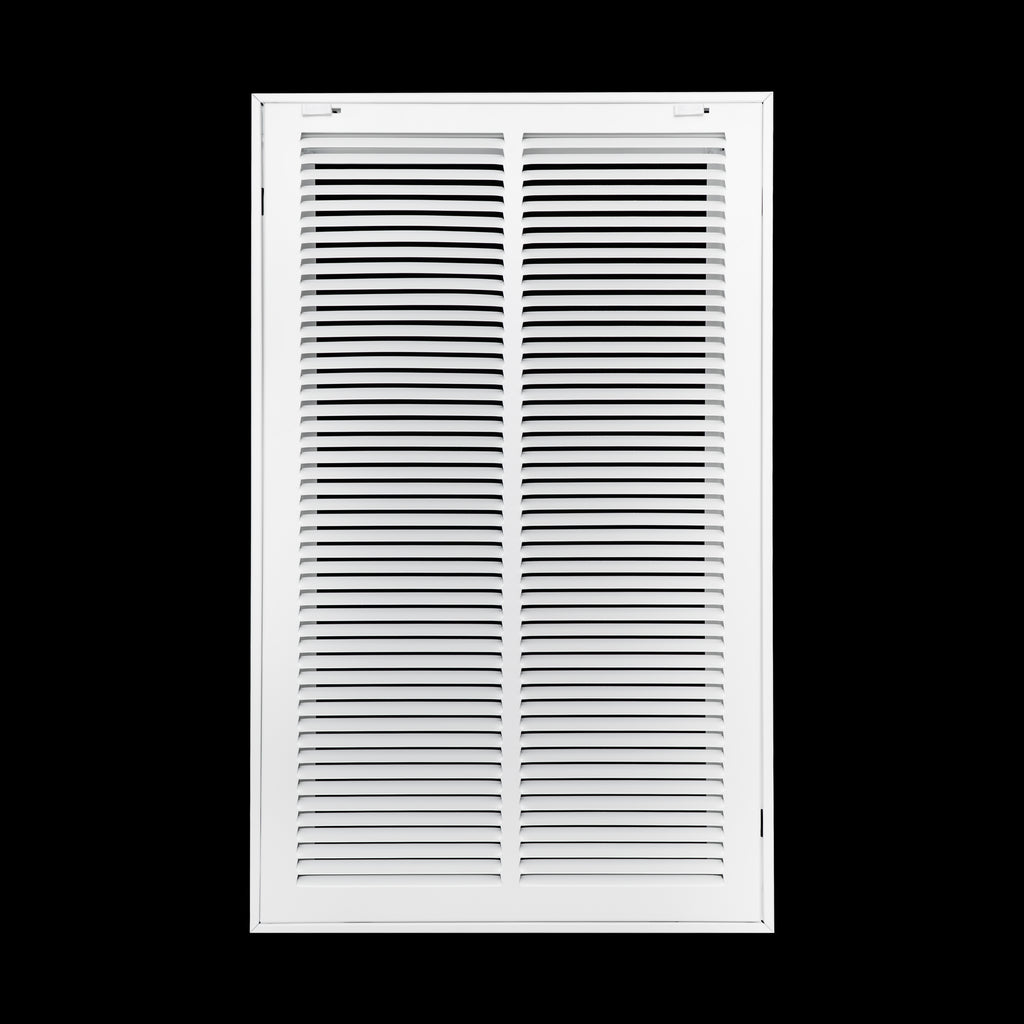

110203-4 14x24 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	14x24 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		14"W x 24"HFilter-ready					Steel	16-5/8"W X 26-5/8"H	White			$40.89Filter-ready	$38.85	$38.85	$38.85	$38.85		Quantity for 14x24 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 62 in stock

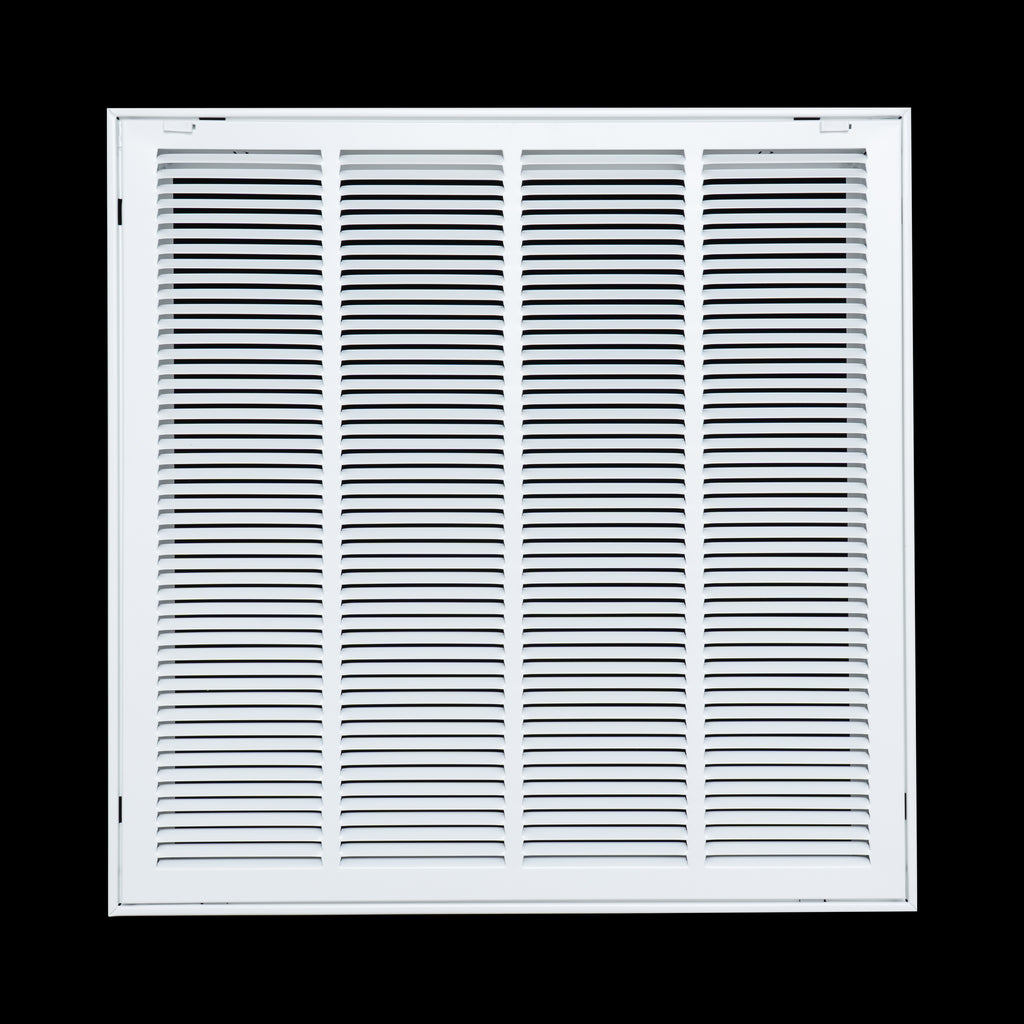

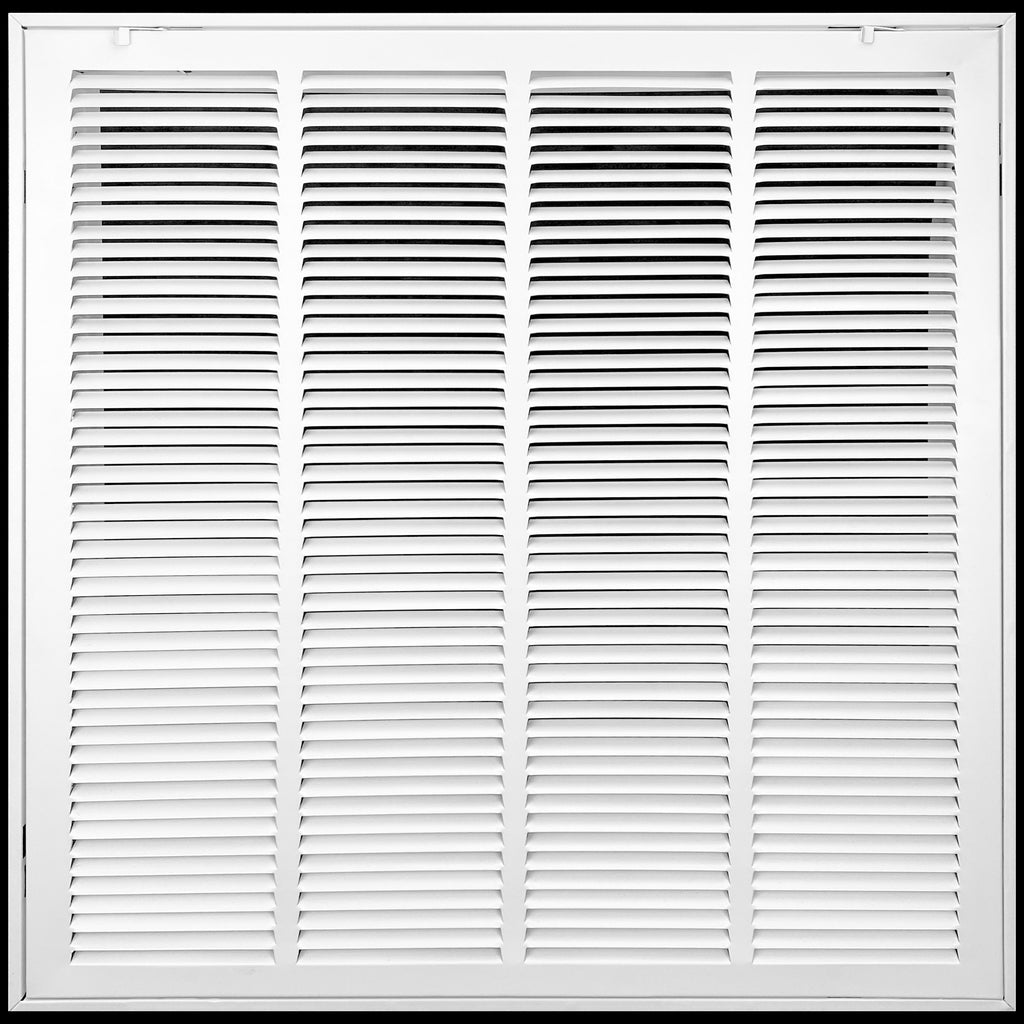

110203-21 24x24 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	24x24 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		24"W x 24"HFilter-ready					Steel	26-5/8"W X 26-5/8"H	White			$45.19Filter-ready	$42.94	$42.94	$42.94	$42.94		Quantity for 24x24 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 69 in stock

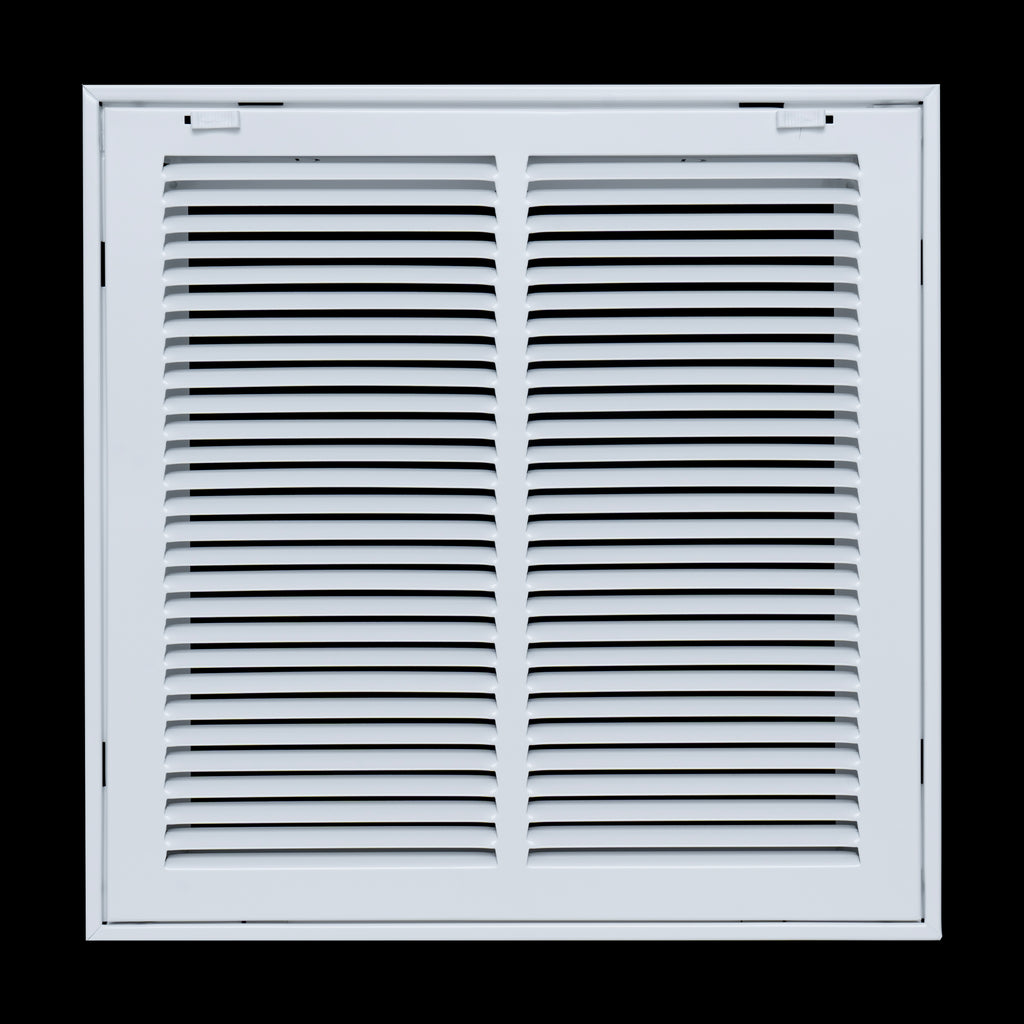

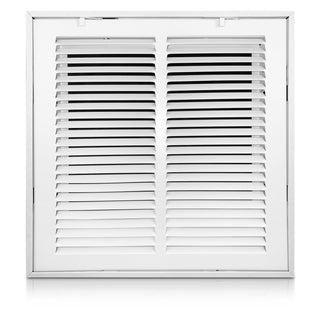

110203-1 12x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	12x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		12"W x 12"HFilter-ready					Steel	14-5/8"W X 14-5/8"H	White			$19.19Filter-ready	$18.24	$18.24	$18.24	$18.24		Quantity for 12x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 90 in stock

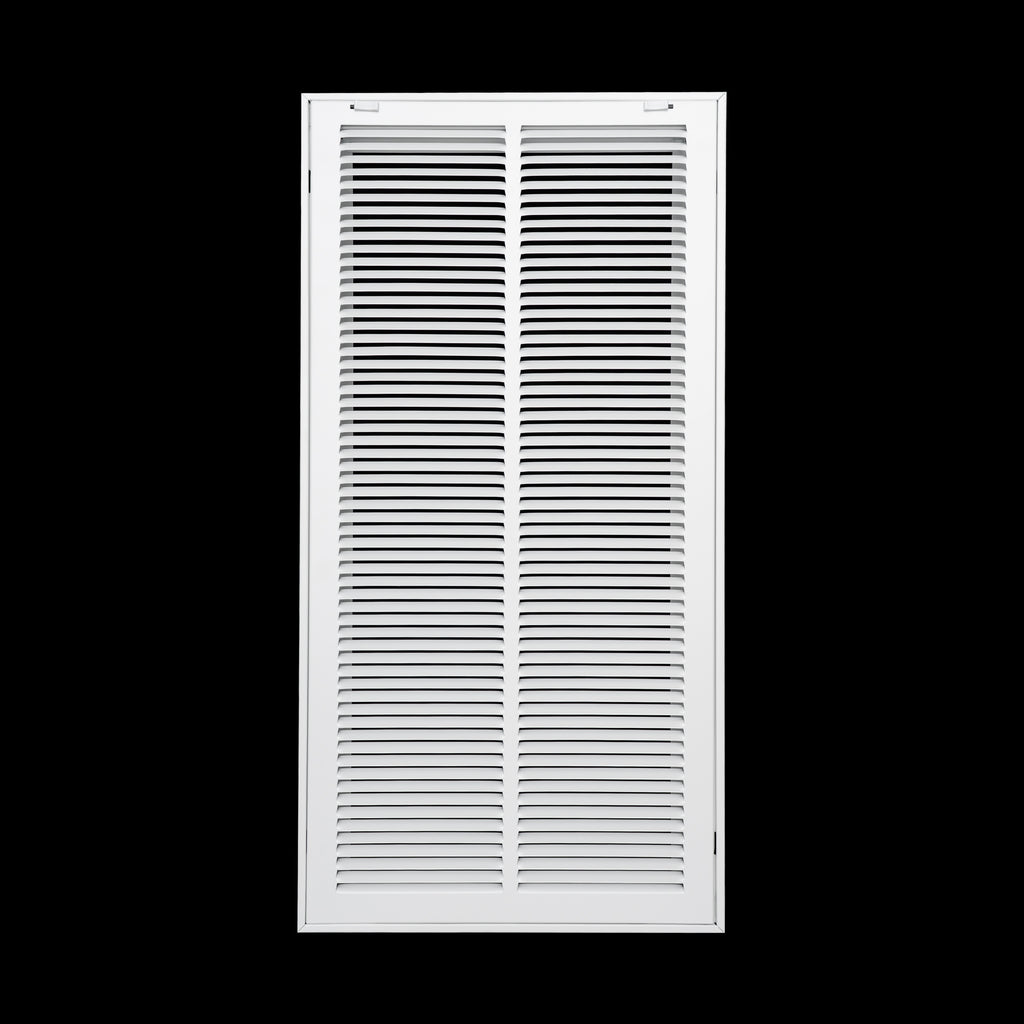

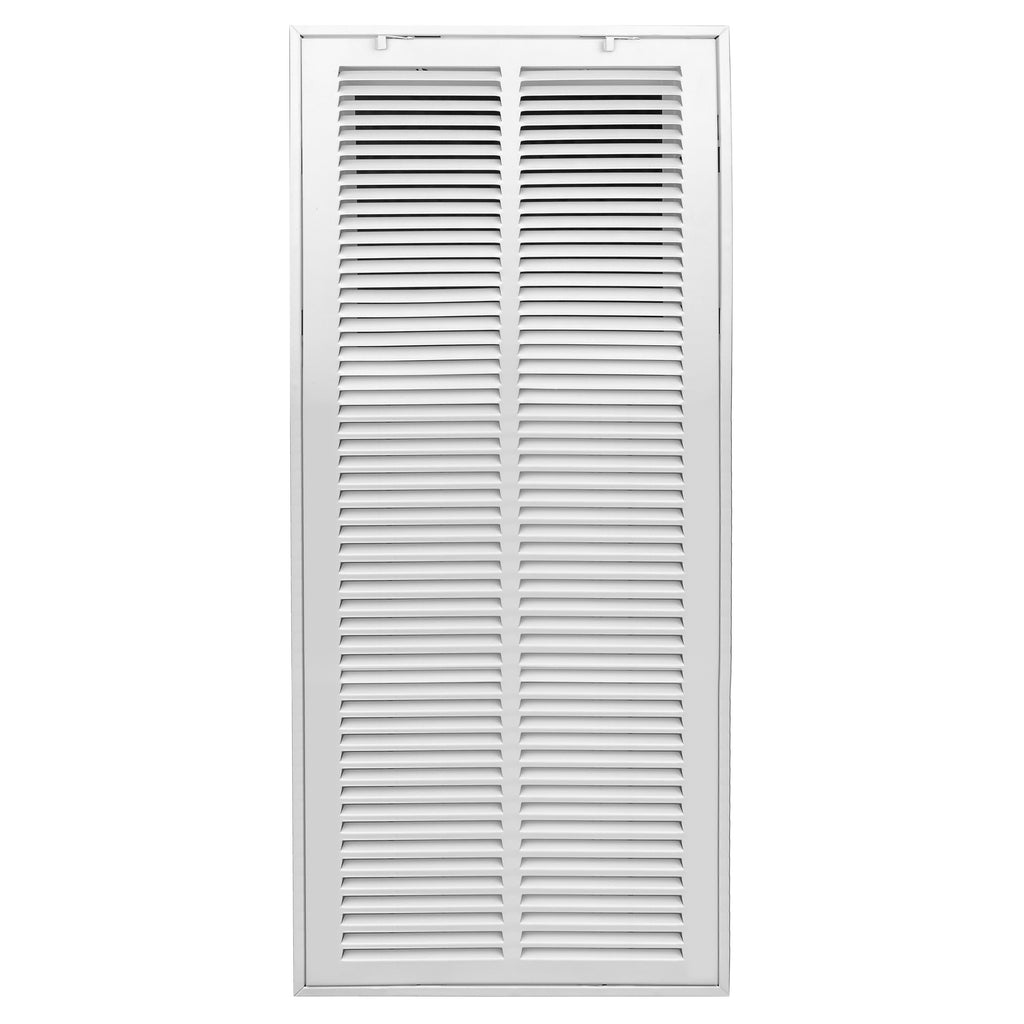

110203-5 14x30 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	14x30 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		14"W x 30"HFilter-ready					Steel	16-5/8"W X 32-5/8"H	White			$45.09Filter-ready	$42.84	$42.84	$42.84	$42.84		Quantity for 14x30 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 117 in stock

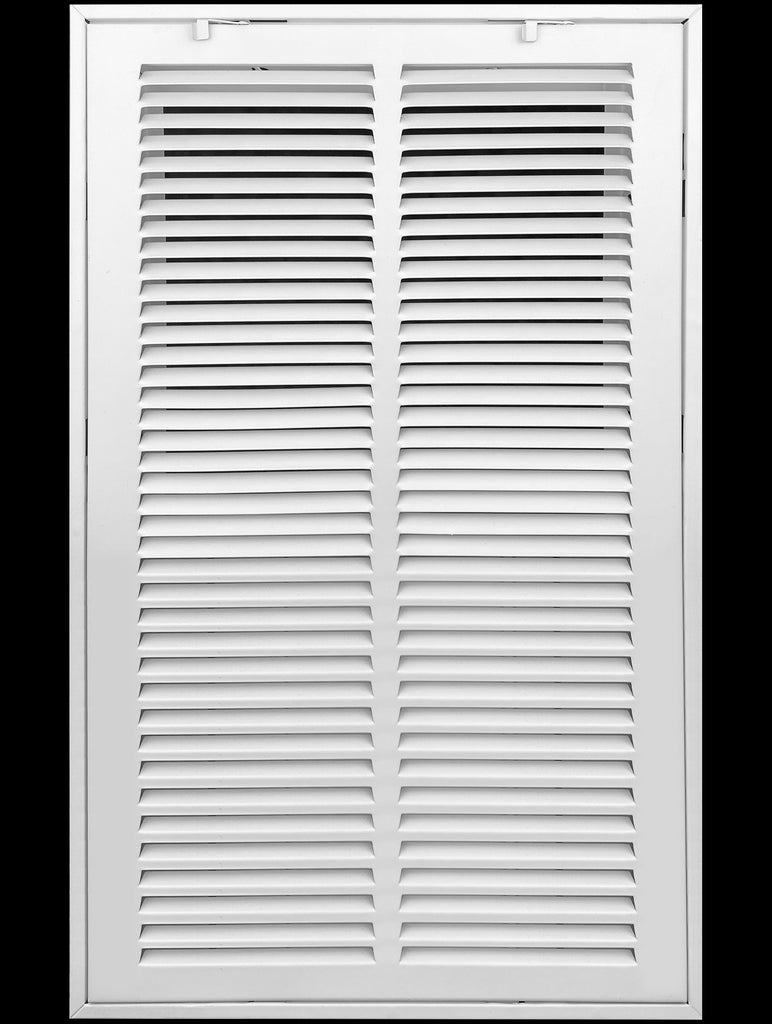

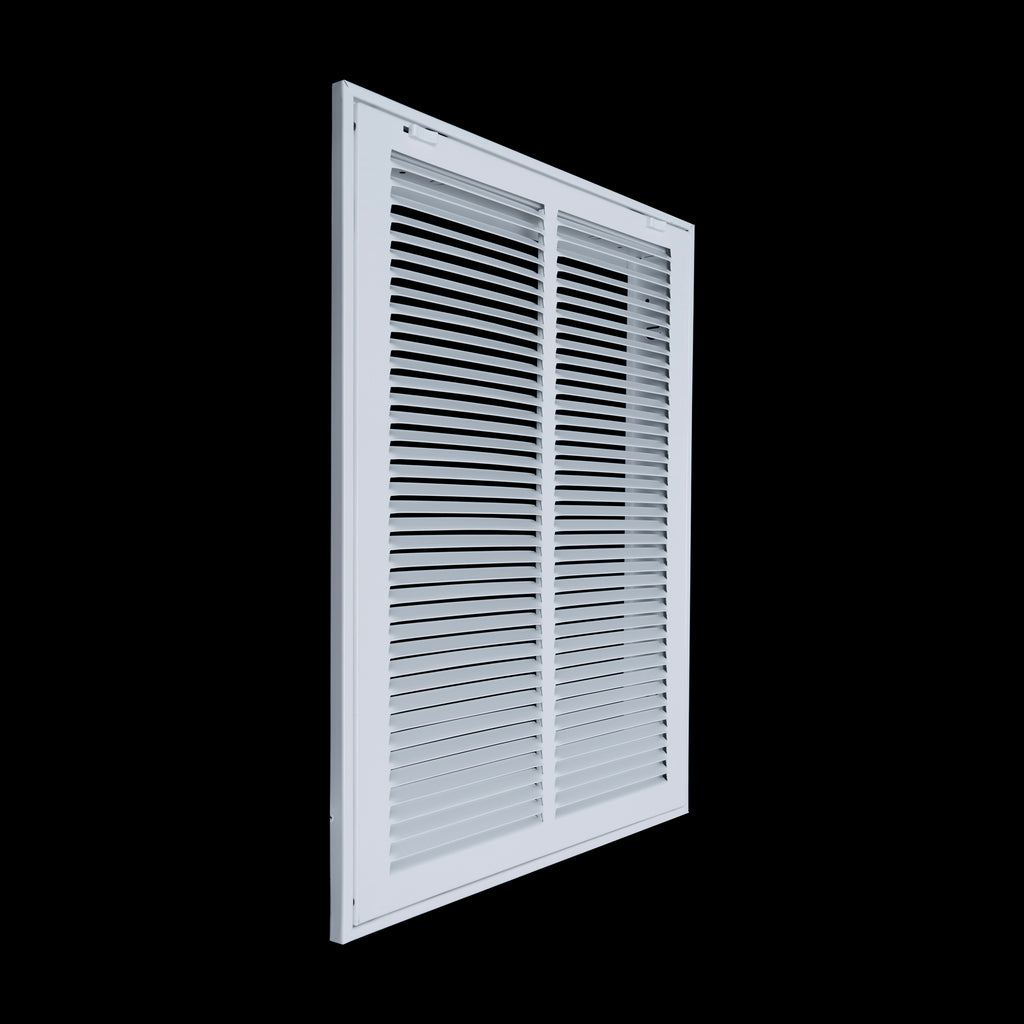

110203-3 14x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	14x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		14"W x 20"HFilter-ready					Steel	16-5/8"W X 22-5/8"H	White			$35.59Filter-ready	$33.82	$33.82	$33.82	$33.82		Quantity for 14x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 211 in stock

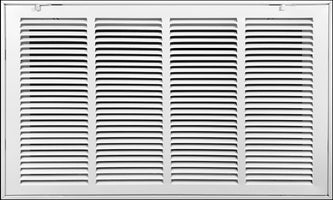

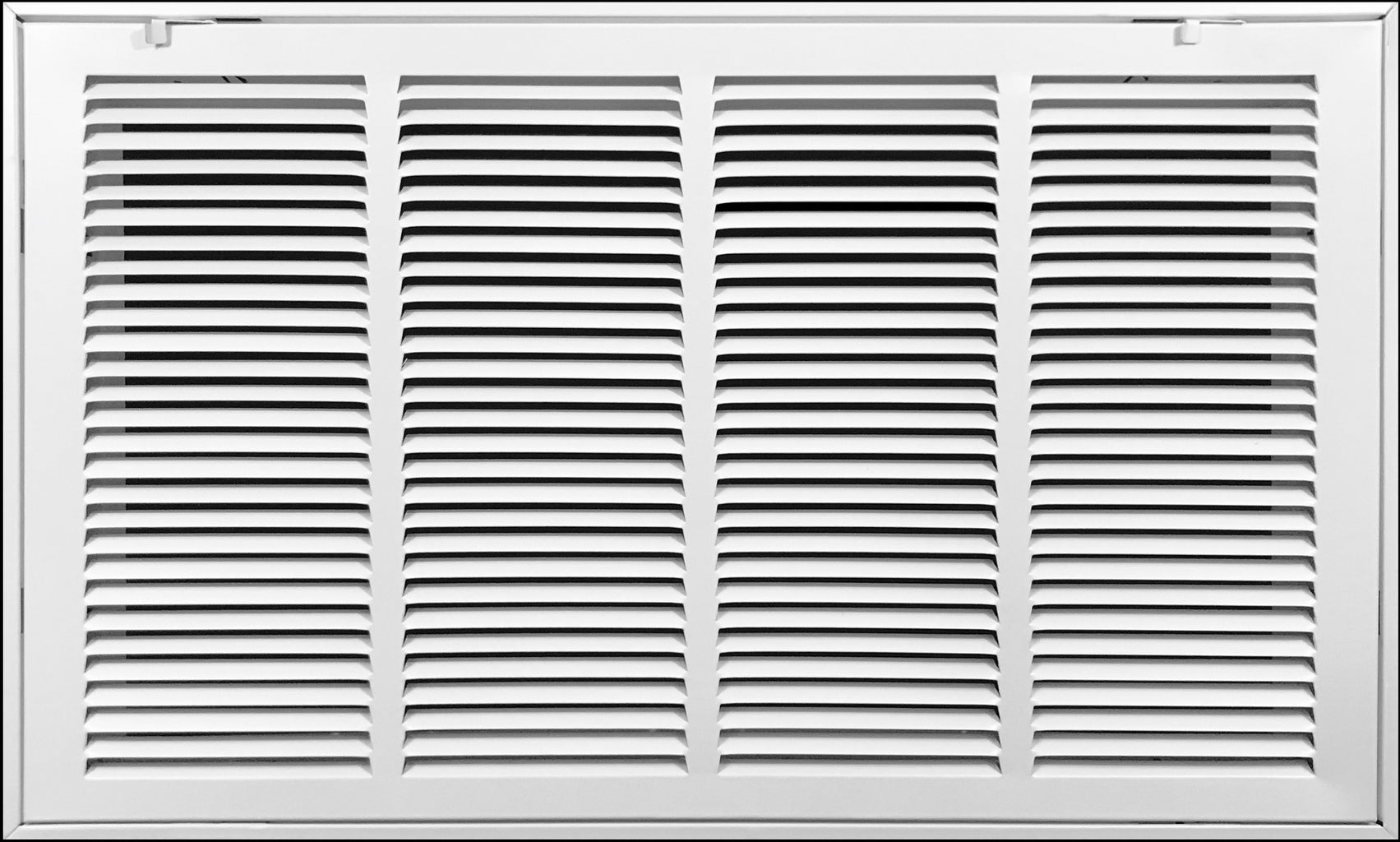

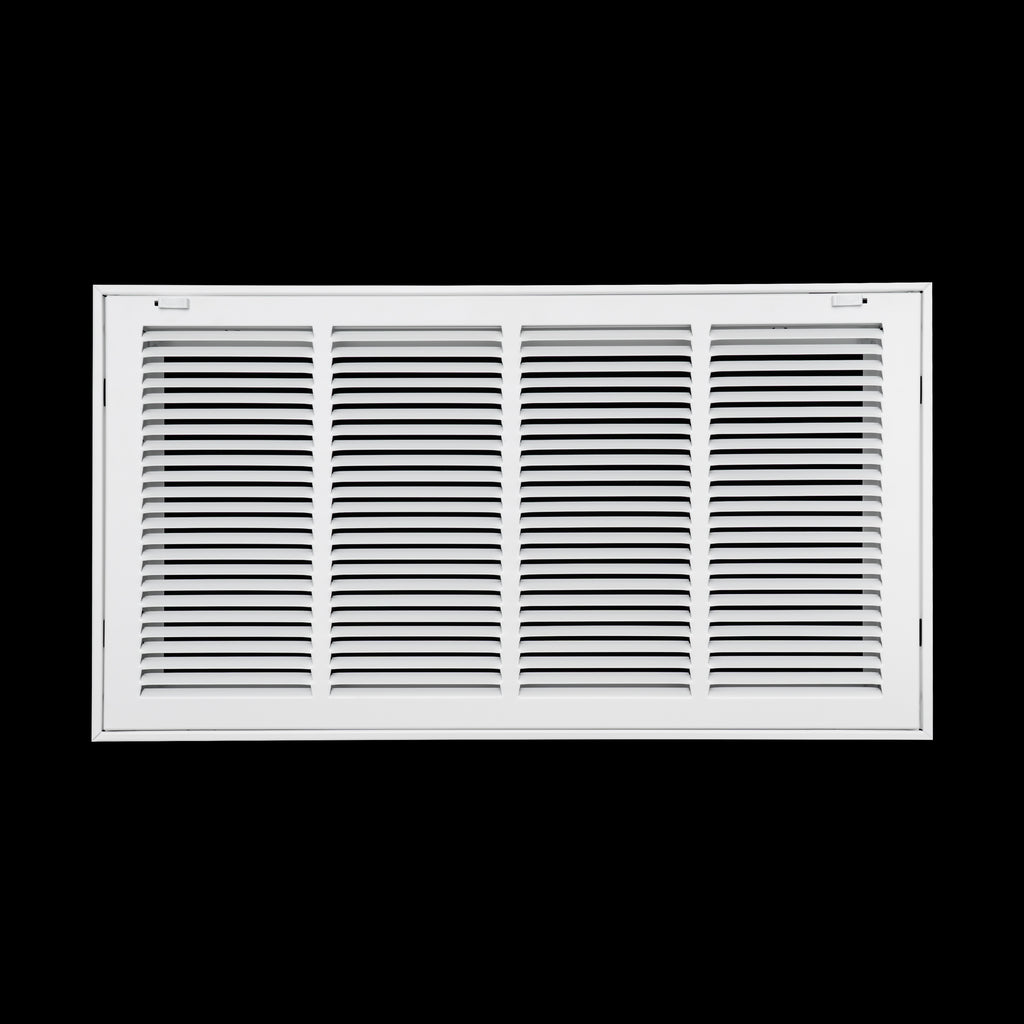

110203-17 24x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	24x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		24"W x 12"HFilter-ready					Steel	26-5/8"W X 14-5/8"H	White			$36.99Filter-ready	$35.15	$35.15	$35.15	$35.15

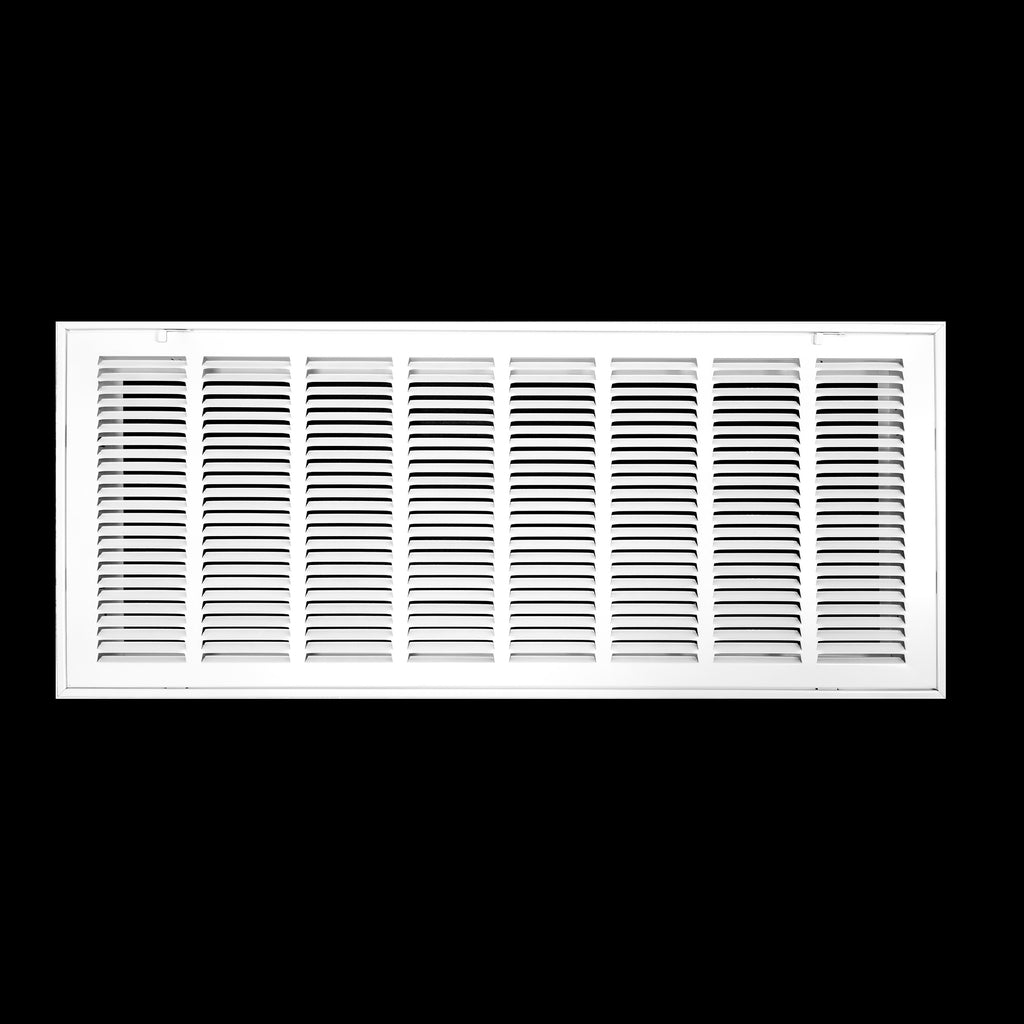

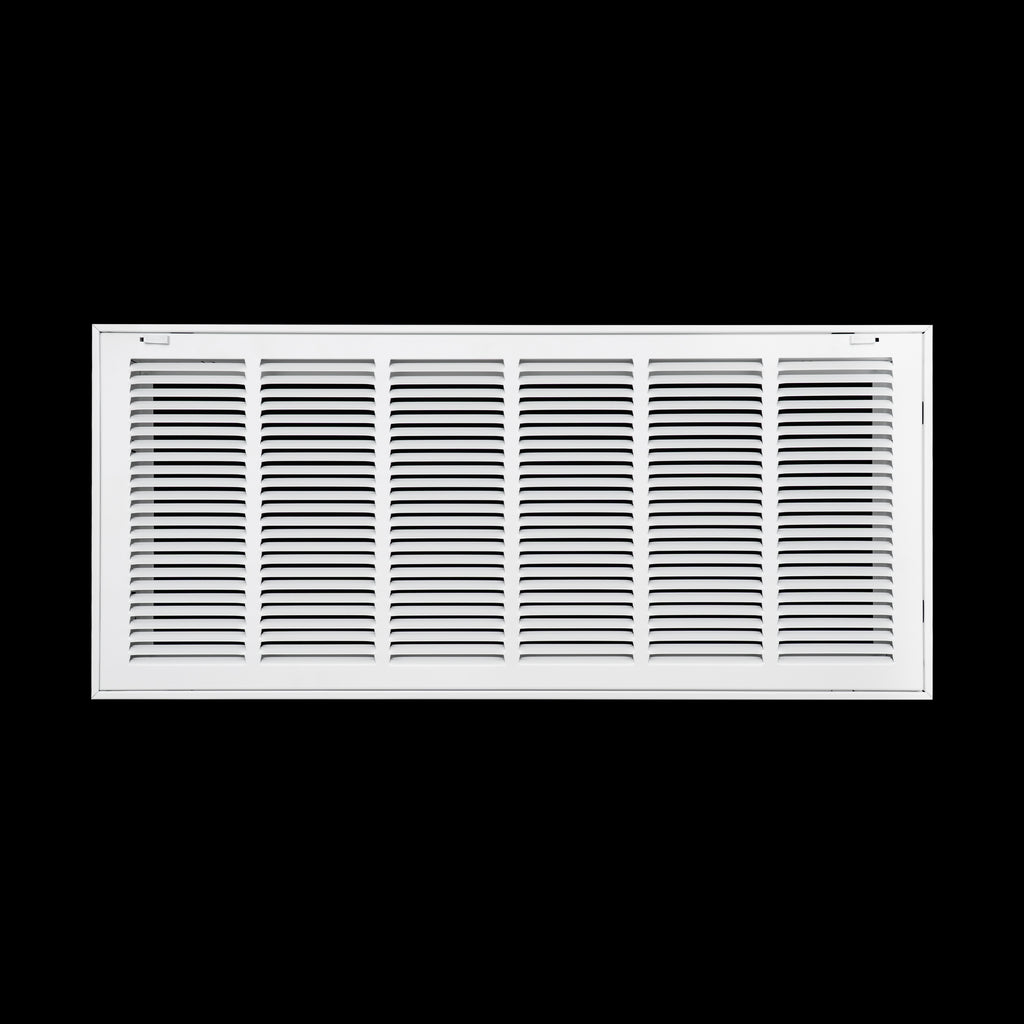

110203-23 30x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	30x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		30"W x 12"HFilter-ready					Steel	32-5/8"W X 14-5/8"H	White			$36.79Filter-ready	$34.96	$34.96	$34.96	$34.96		Quantity for 30x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 23 in stock

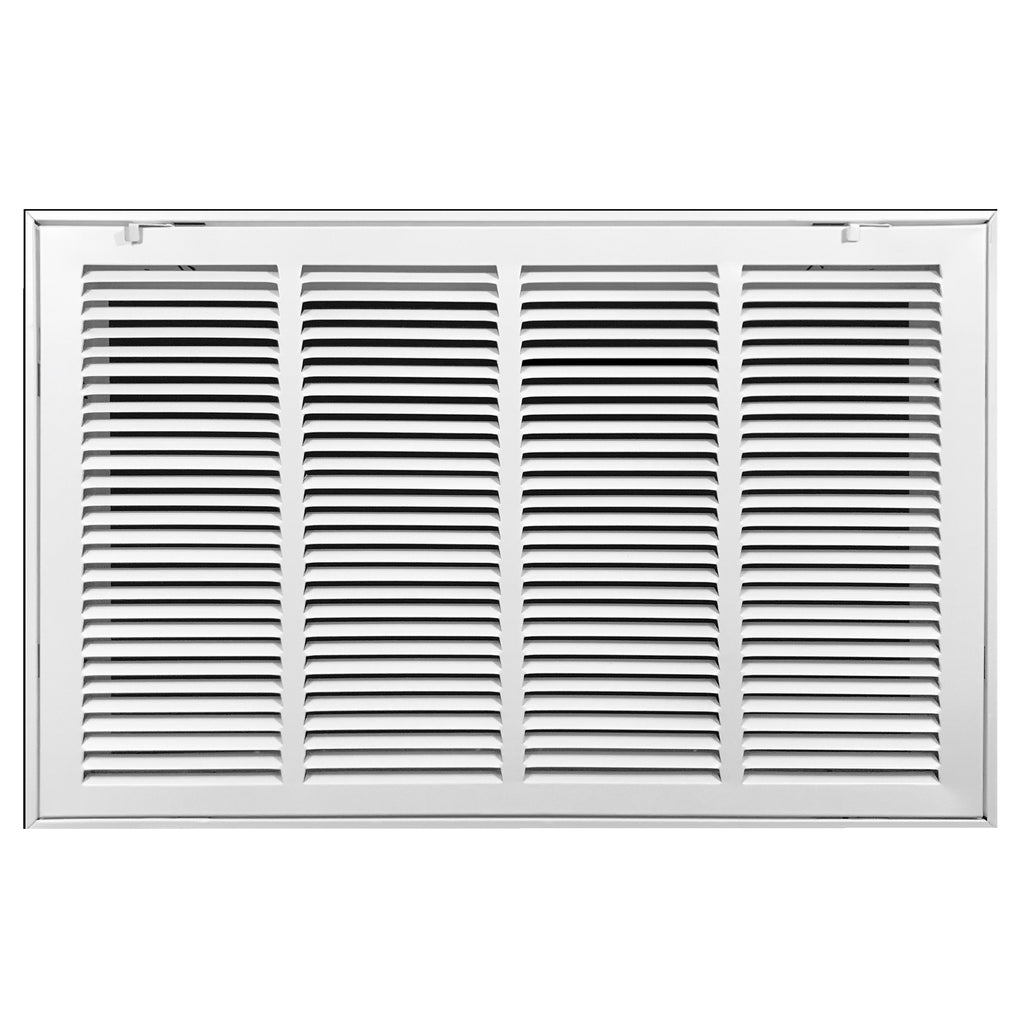

110203-11 20x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	20x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		20"W x 12"HFilter-ready					Steel	22-5/8"W X 14-5/8"H	White			$33.59Filter-ready	$31.92	$31.92	$31.92	$31.92		Quantity for 20x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 45 in stock

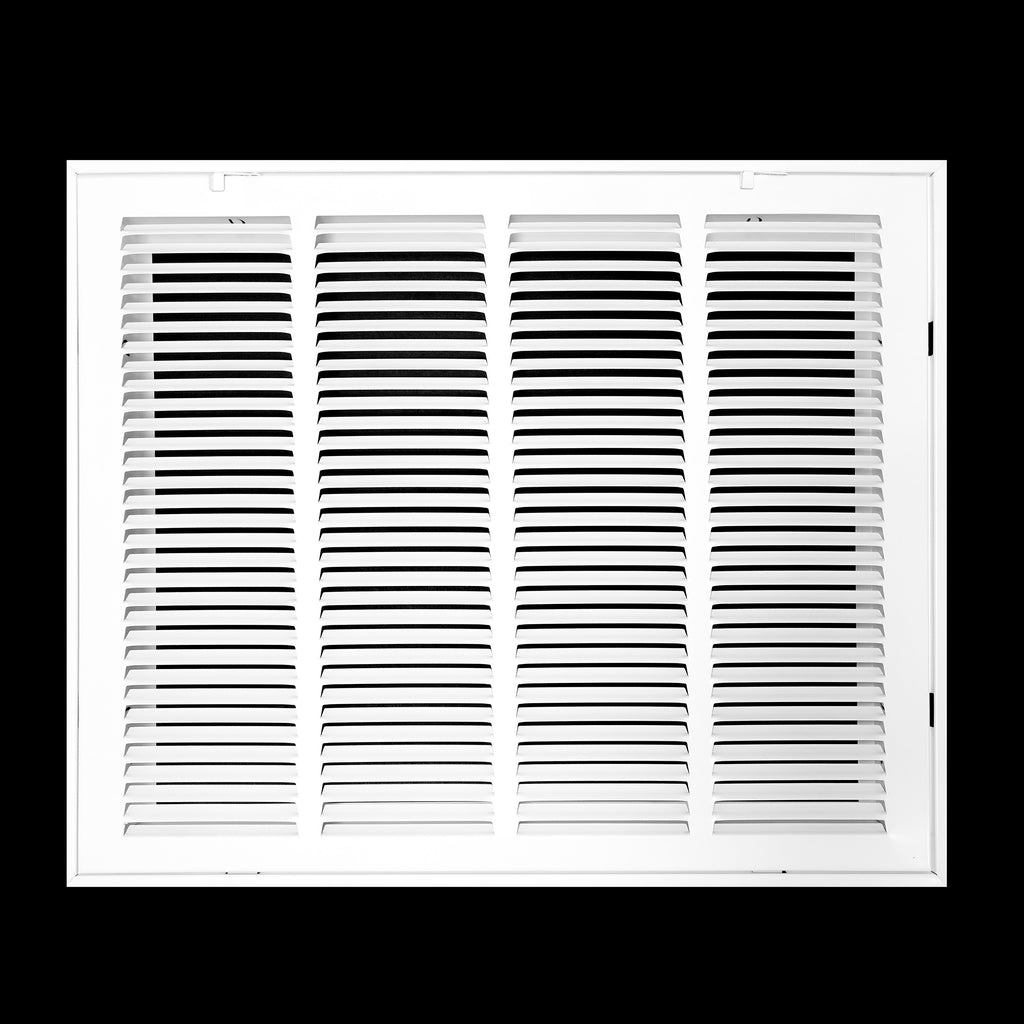

110203-13 20x16 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	20x16 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		20"W x 16"HFilter-ready					Steel	22-5/8"W X 18-5/8"H	White			$45.09Filter-ready	$42.84	$42.84	$42.84	$42.84		Quantity for 20x16 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 278 in stock
110202-6 20x25 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	20x25 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		20"W x 25"HFilter-ready					Steel	22-5/8"W X 27-5/8"H	White			$36.89Filter-ready	$35.05	$35.05	$35.05	$35.05		Quantity for 20x25 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 48 in stock

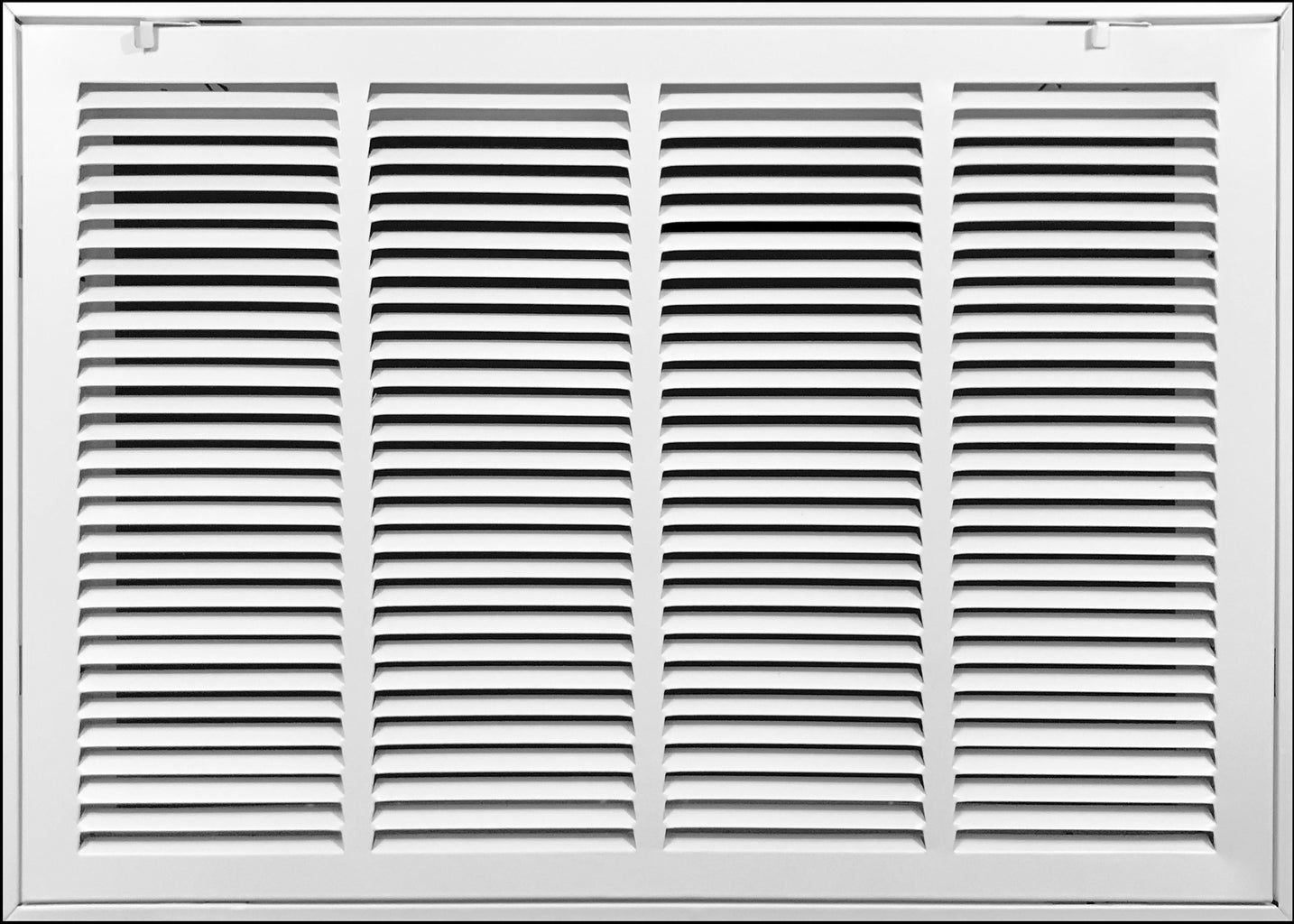

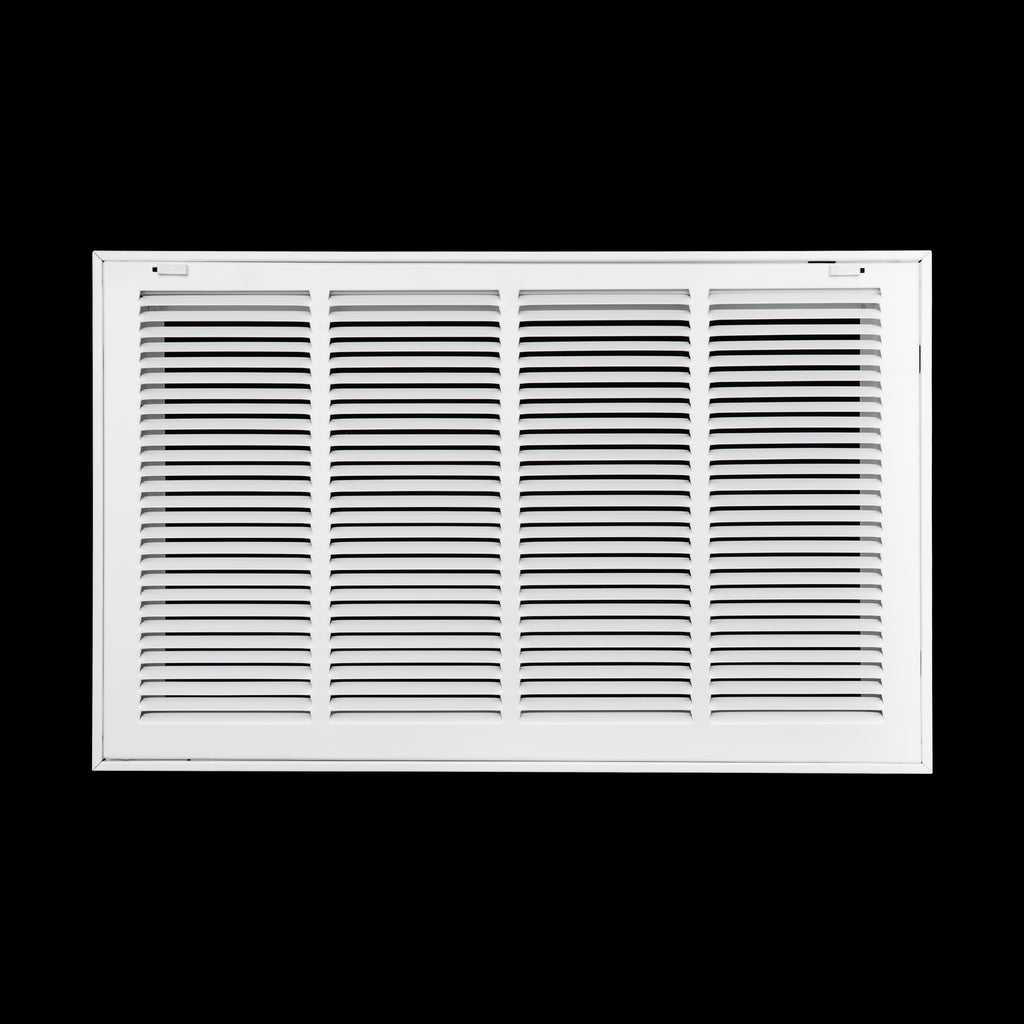

110203-18 24x14 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	24x14 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		24"W x 14"HFilter-ready					Steel	26-5/8"W X 16-5/8"H	White			$42.19Filter-ready	$40.09	$40.09	$40.09	$40.09		Quantity for 24x14 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 85 in stock

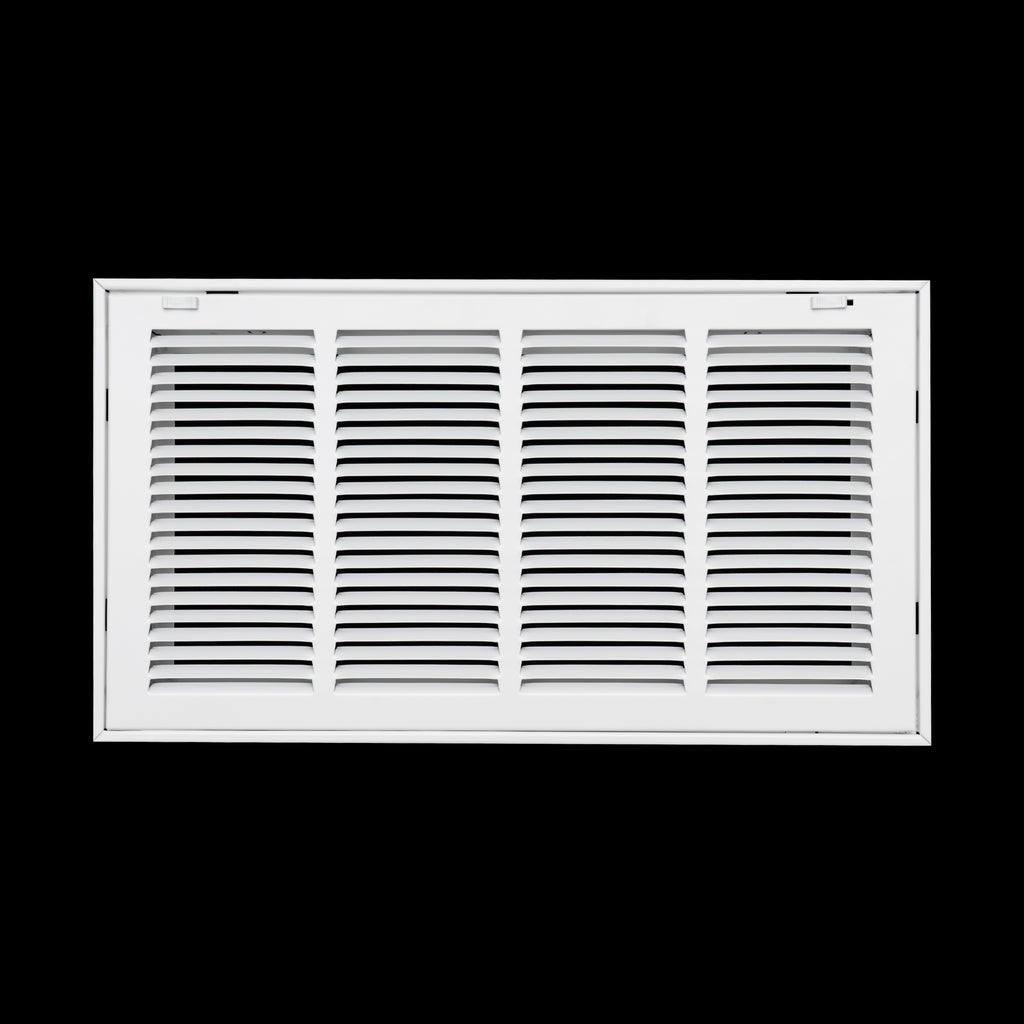

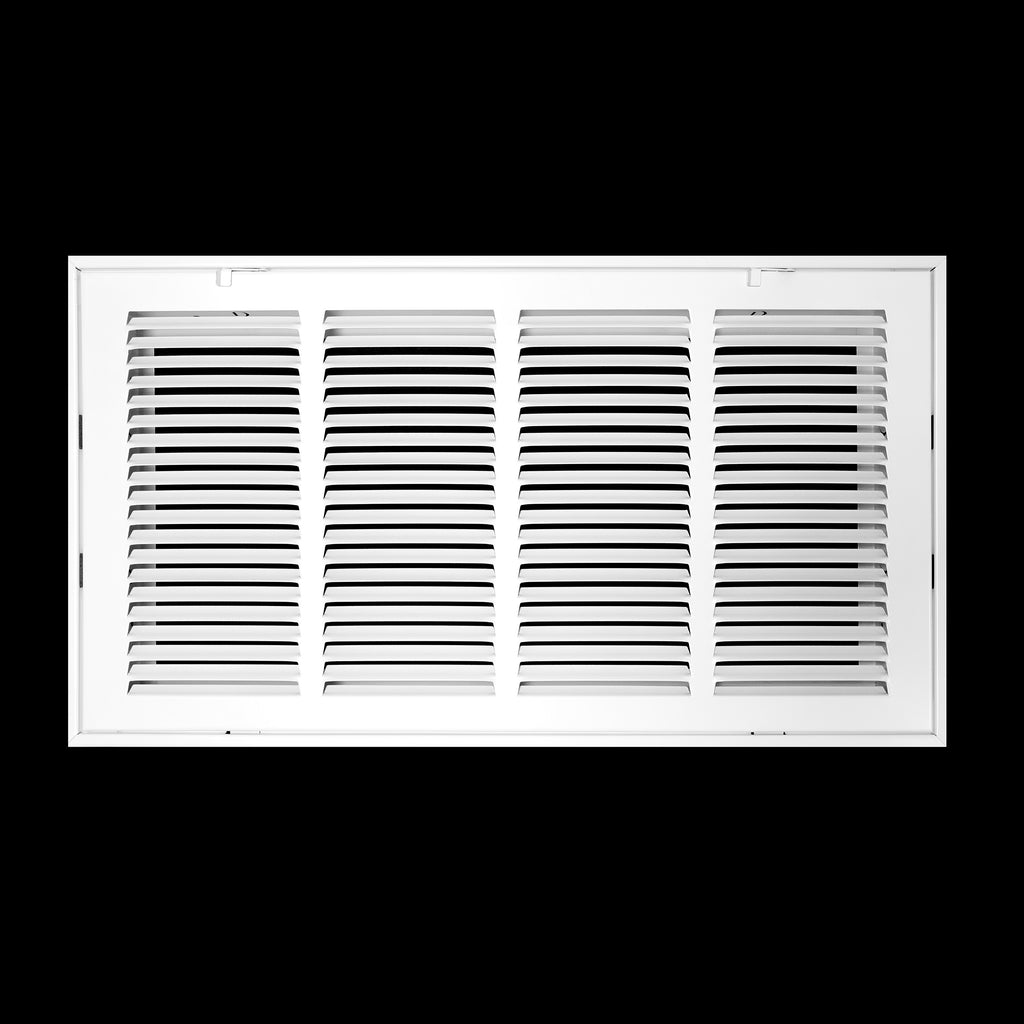

110203-10 20x10 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	20x10 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		20"W x 10"HFilter-ready					Steel	22-5/8"W X 12-5/8"H	White			$44.59Filter-ready	$42.37	$42.37	$42.37	$42.37

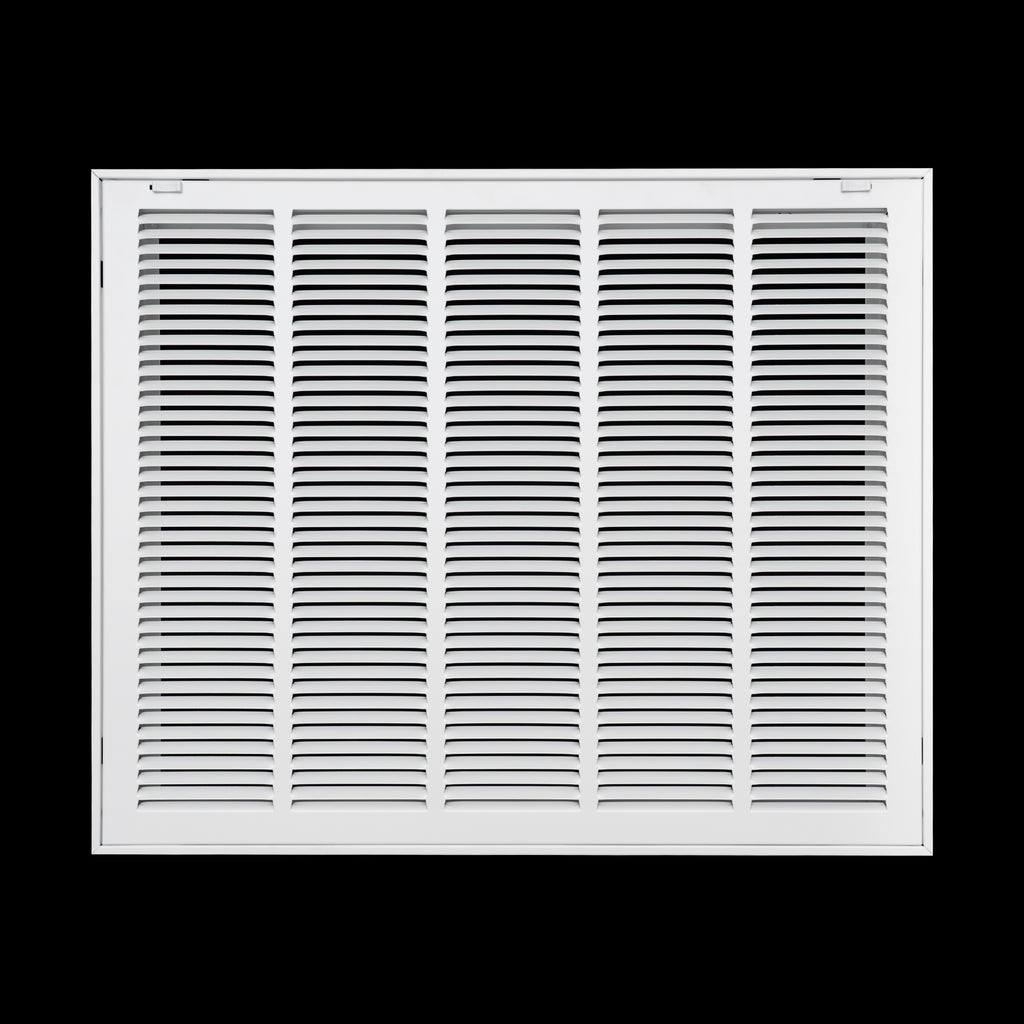

110203-22 25x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	25x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		25"W x 20"HFilter-ready					Steel	27-5/8"W X 22-5/8"H	White			$43.49Filter-ready	$41.32	$41.32	$41.32	$41.32		Quantity for 25x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 13 in stock

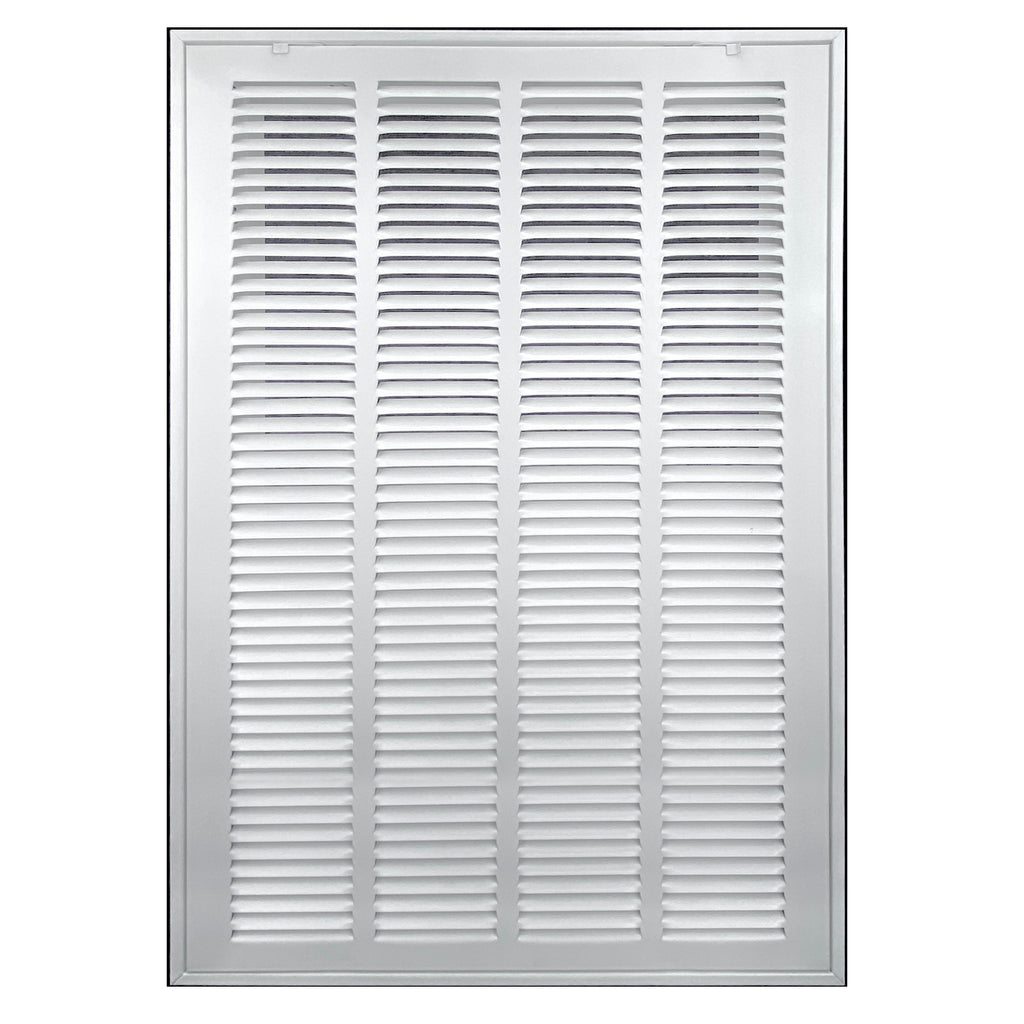

110203-15 20x25 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	20x25 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		20"W x 25"HFilter-ready					Steel	22-5/8"W X 27-5/8"H	White			$41.19Filter-ready	$39.14	$39.14	$39.14	$39.14		Quantity for 20x25 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 50 in stock
110202-4 16x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	16x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		16"W x 20"HFilter-ready					Steel	18-5/8"W X 22-5/8"H	White			$36.09Filter-ready	$34.29	$34.29	$34.29	$34.29		Quantity for 16x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 48 in stock

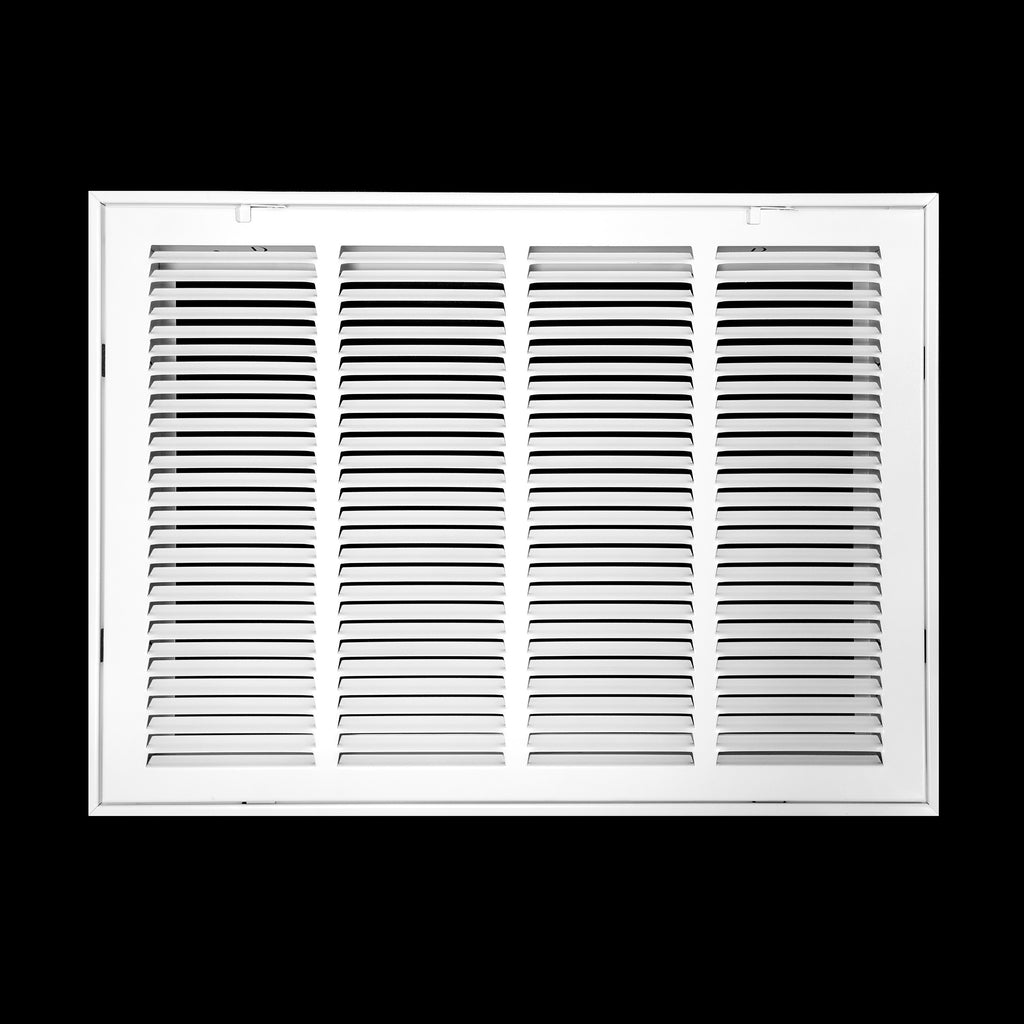

110203-12 20x14 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	20x14 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		20"W x 14"HFilter-ready					Steel	22-5/8"W X 16-5/8"H	White			$28.59Filter-ready	$27.17	$27.17	$27.17	$27.17		Quantity for 20x14 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 107 in stock
110202-2 14x14 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	14x14 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		14"W x 14"HFilter-ready					Steel	16-5/8"W X 16-5/8"H	White			$22.19Filter-ready	$21.09	$21.09	$21.09	$21.09		Quantity for 14x14 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 226 in stock
110202-7 24x24 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	24x24 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		24"W x 24"HFilter-ready					Steel	26-5/8"W X 26-5/8"H	White			$45.49Filter-ready	$43.22	$43.22	$43.22	$43.22
110202-3 14x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	14x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		14"W x 20"HFilter-ready					Steel	16-5/8"W X 22-5/8"H	White			$32.19Filter-ready	$30.59	$30.59	$30.59	$30.59

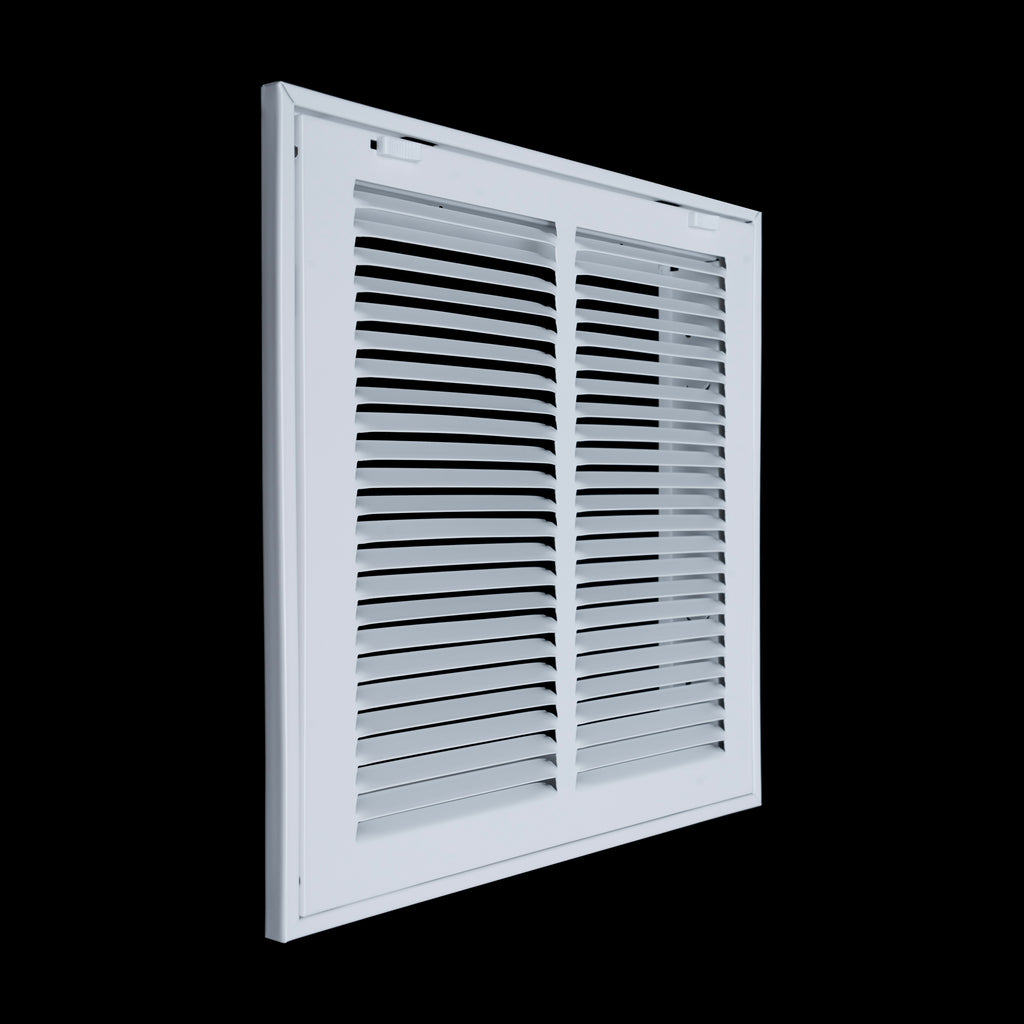

110203-2 14x14 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	14x14 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		14"W x 14"HFilter-ready					Steel	16-5/8"W X 16-5/8"H	White			$22.69Filter-ready	$21.56	$21.56	$21.56	$21.56		Quantity for 14x14 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 104 in stock

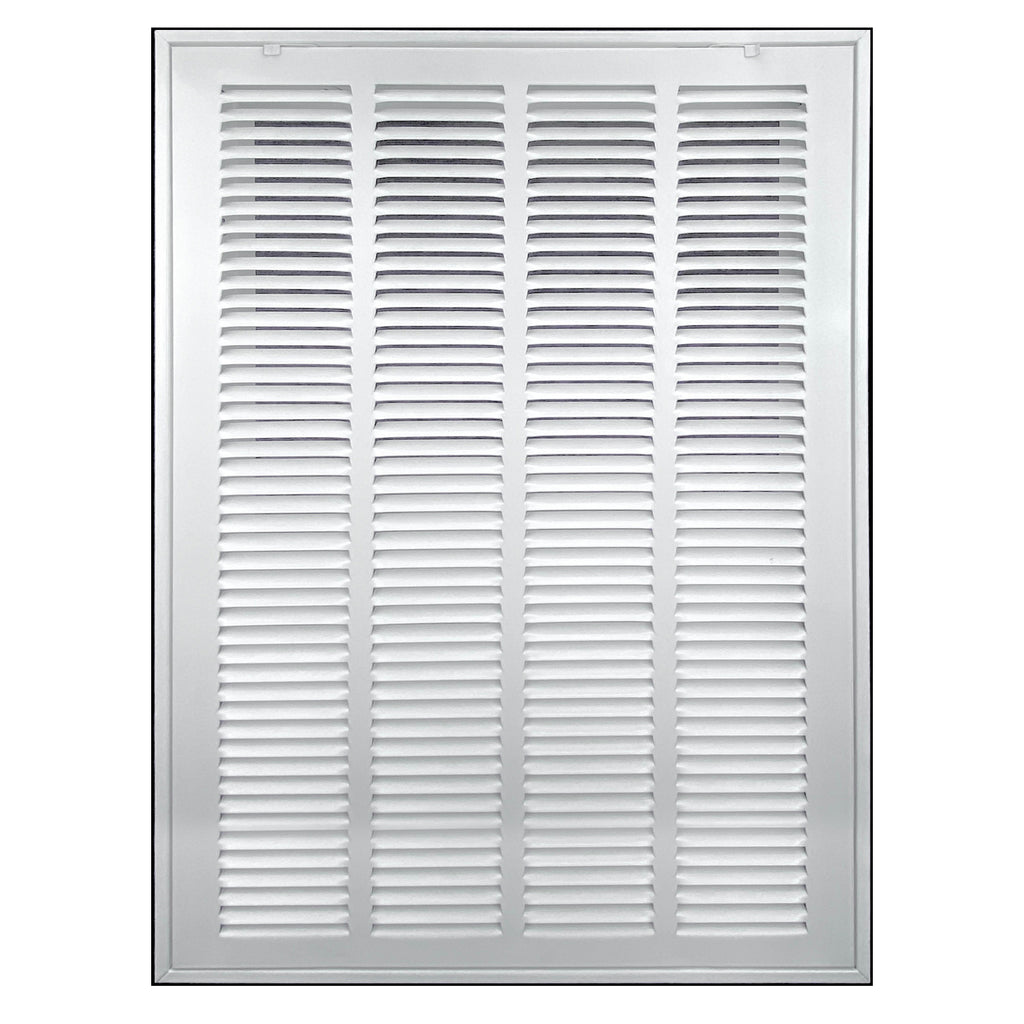

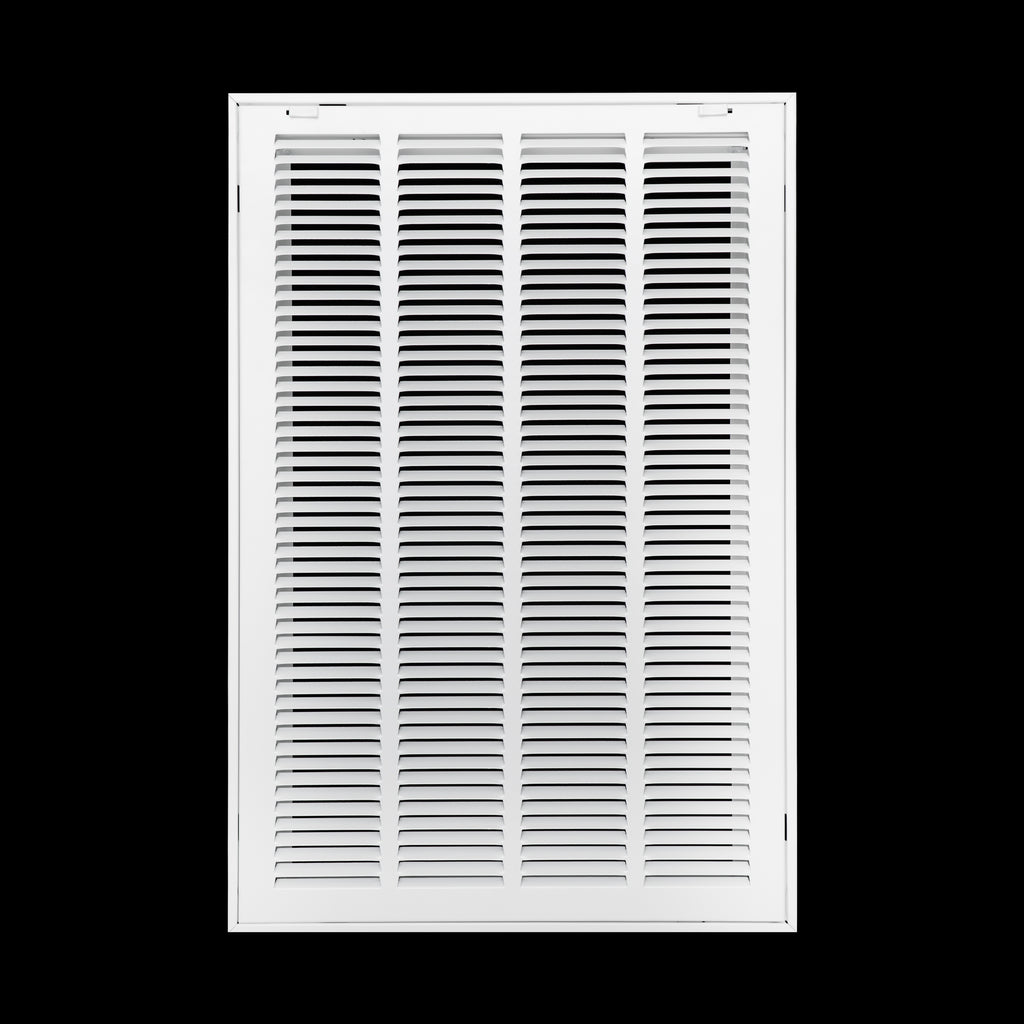

110203-8 16x25 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	16x25 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		16"W x 25"HFilter-ready					Steel	18-5/8"W X 27-5/8"H	White			$34.19Filter-ready	$32.49	$32.49	$32.49	$32.49		Quantity for 16x25 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 44 in stock

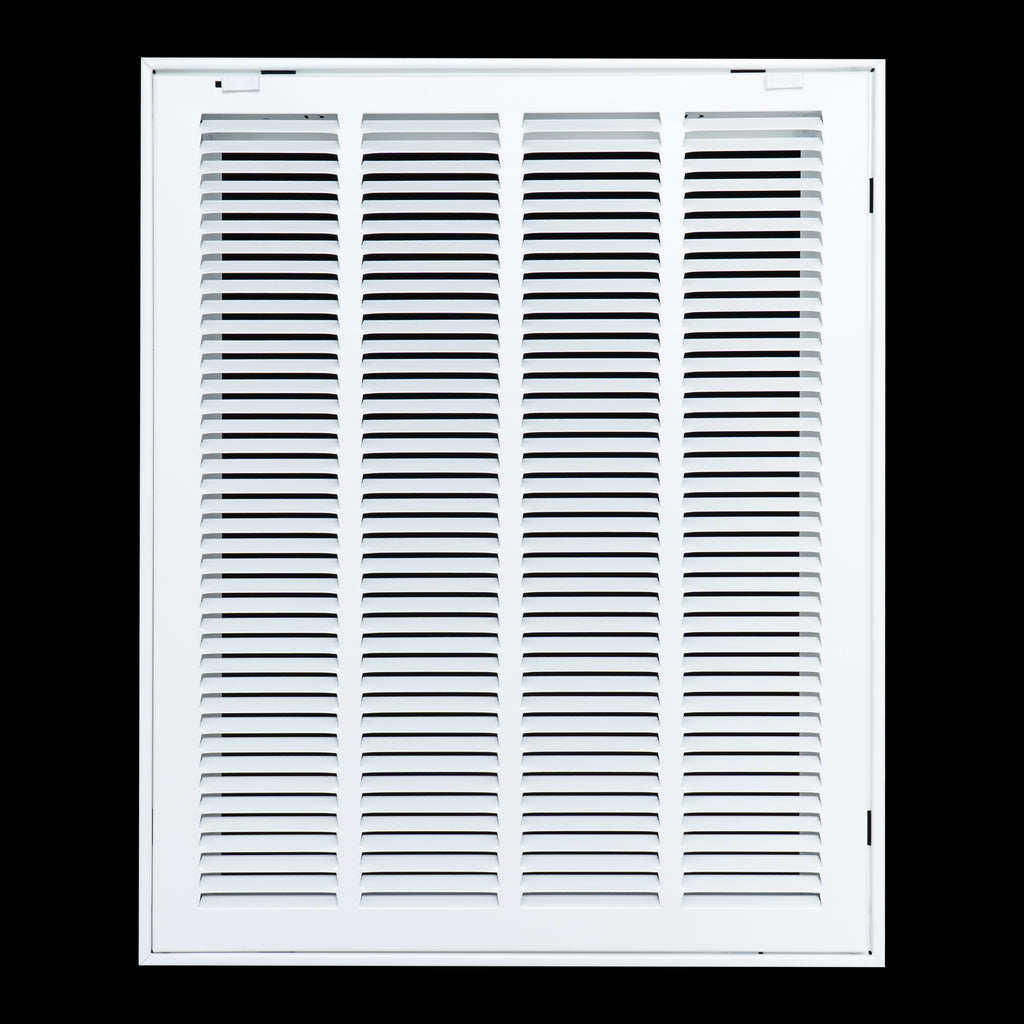

110203-7 16x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	16x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		16"W x 20"HFilter-ready					Steel	18-5/8"W X 22-5/8"H	White			$36.09Filter-ready	$34.29	$34.29	$34.29	$34.29		Quantity for 16x20 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 135 in stock
110202-14 20x10 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	20x10 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		20"W x 10"HFilter-ready					Steel	22-5/8"W X 12-5/8"H	White			$34.29Filter-ready	$32.58	$32.58	$32.58	$32.58		Quantity for 20x10 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 97 in stock

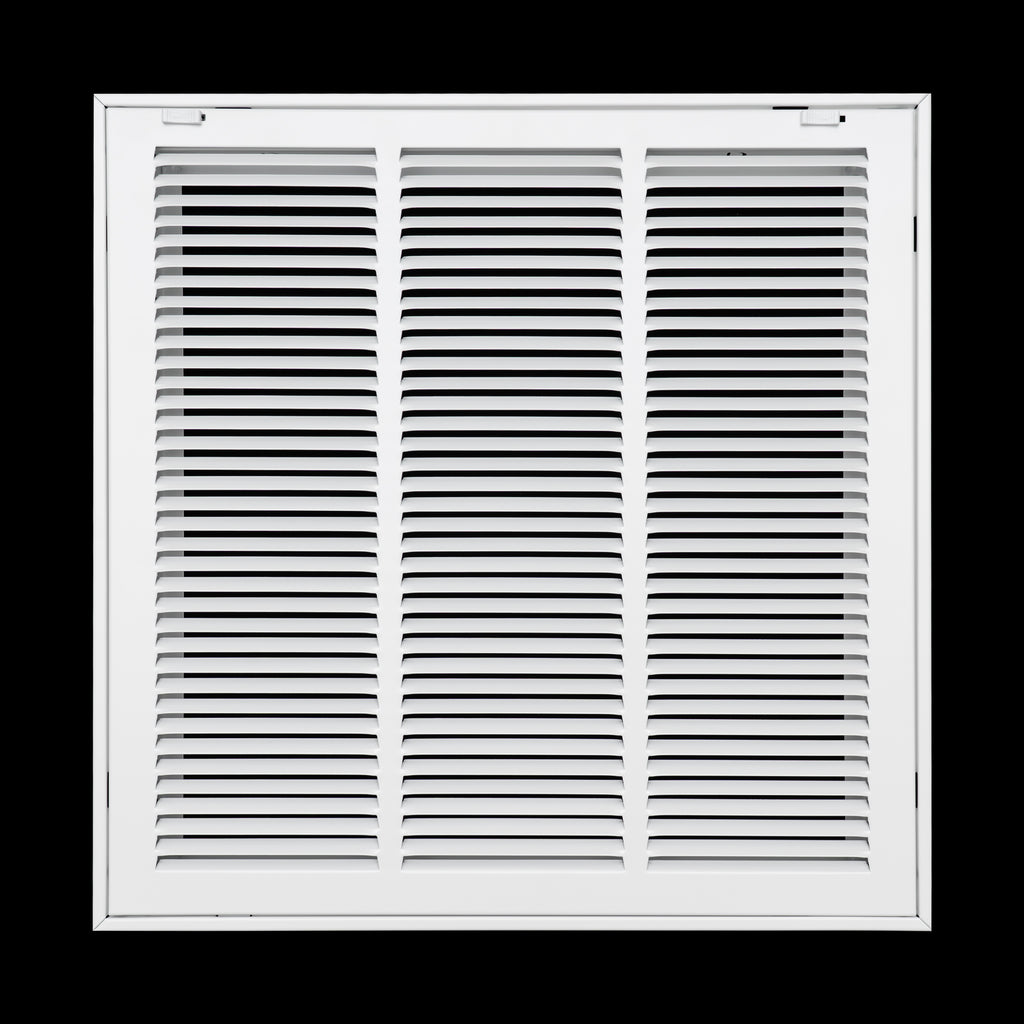

110203-9 18x18 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	18x18 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		18"W x 18"HFilter-ready					Steel	20-5/8"W X 20-5/8"H	White			$31.99Filter-ready	$30.40	$30.40	$30.40	$30.40		Quantity for 18x18 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 86 in stock

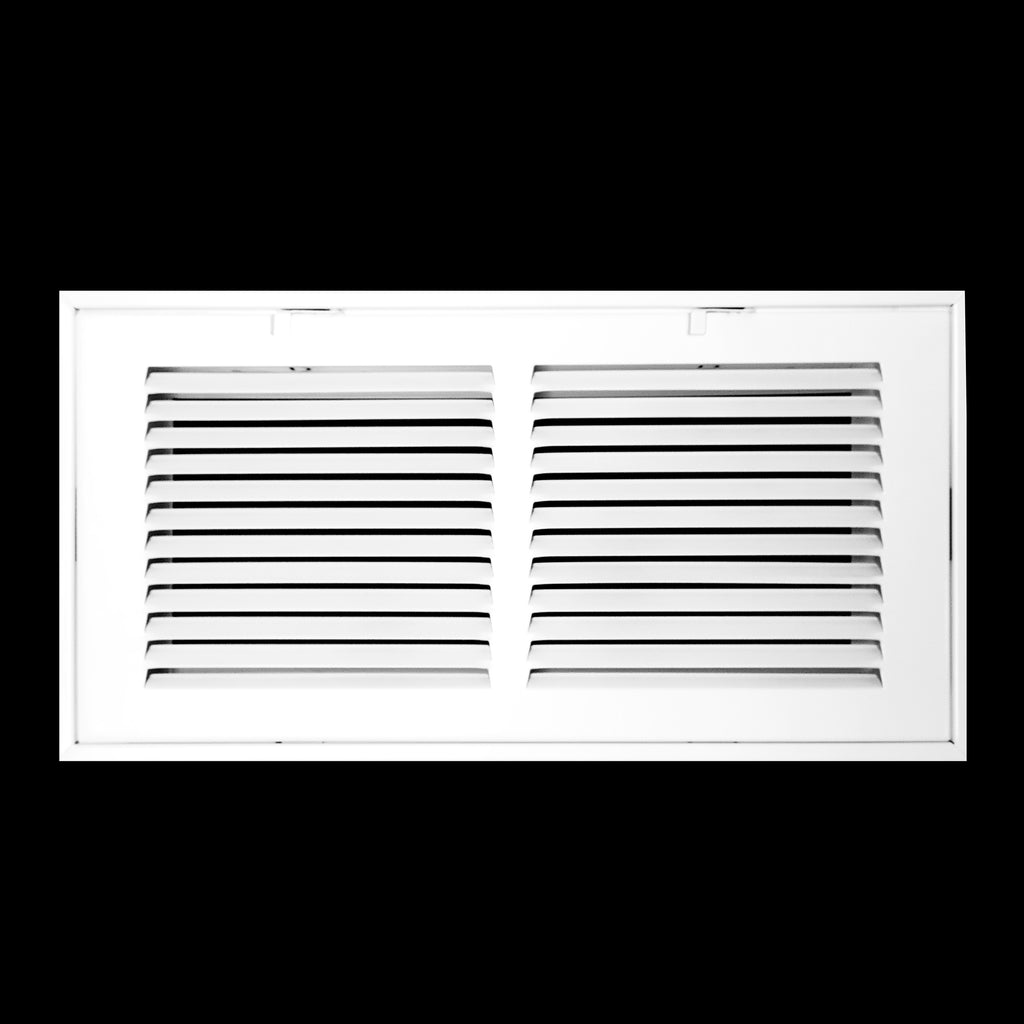

110202-11 14x6 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	14x6 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		14"W x 6"HFilter-ready					Steel	16-5/8"W X 8-5/8"H	White			$26.69Filter-ready	$25.36	$25.36	$25.36	$25.36		Quantity for 14x6 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 222 in stock

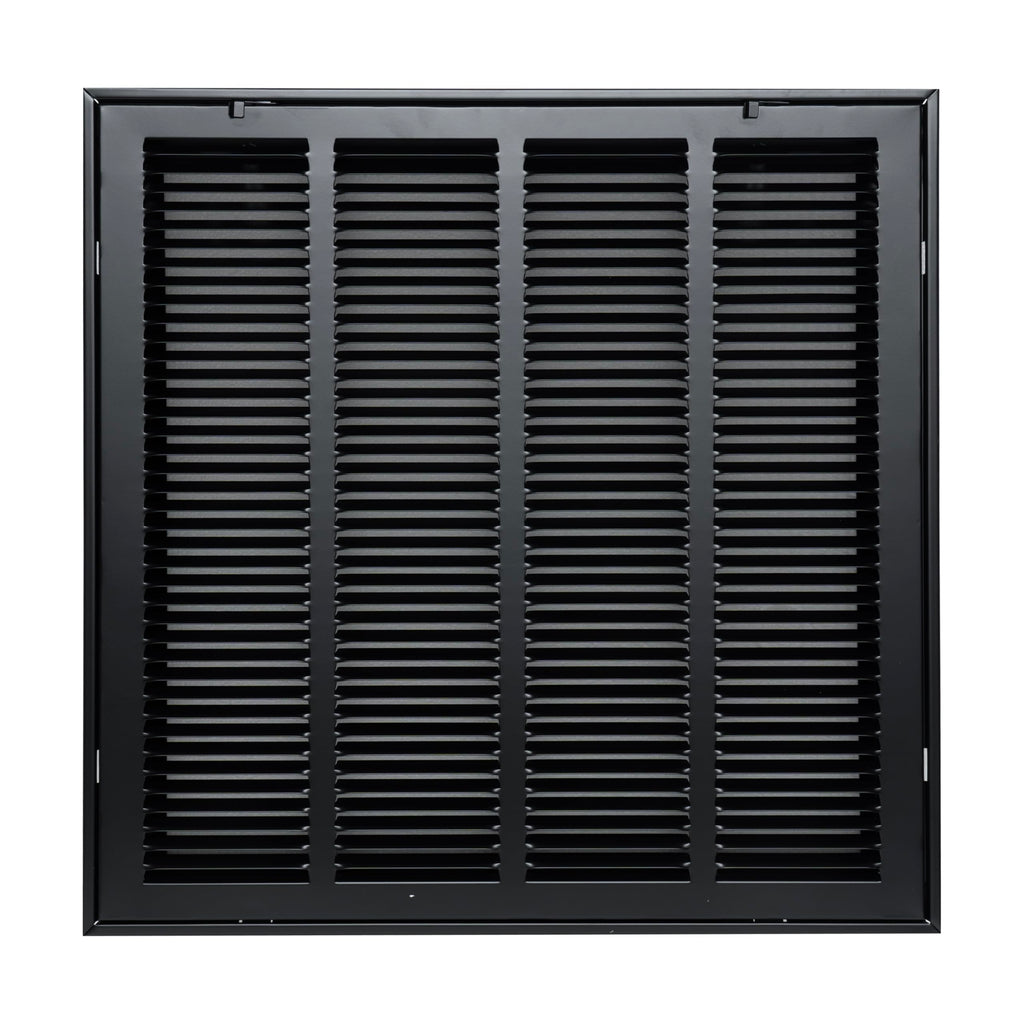

110203-27 20x20 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	20x20 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		20"W x 20"HFilter-ready					Steel	22-5/8"W X 22-5/8"H	Black			$66.24Filter-ready	$62.93	$60.95	$58.96	$56.31		Quantity for 20x20 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 14 in stock

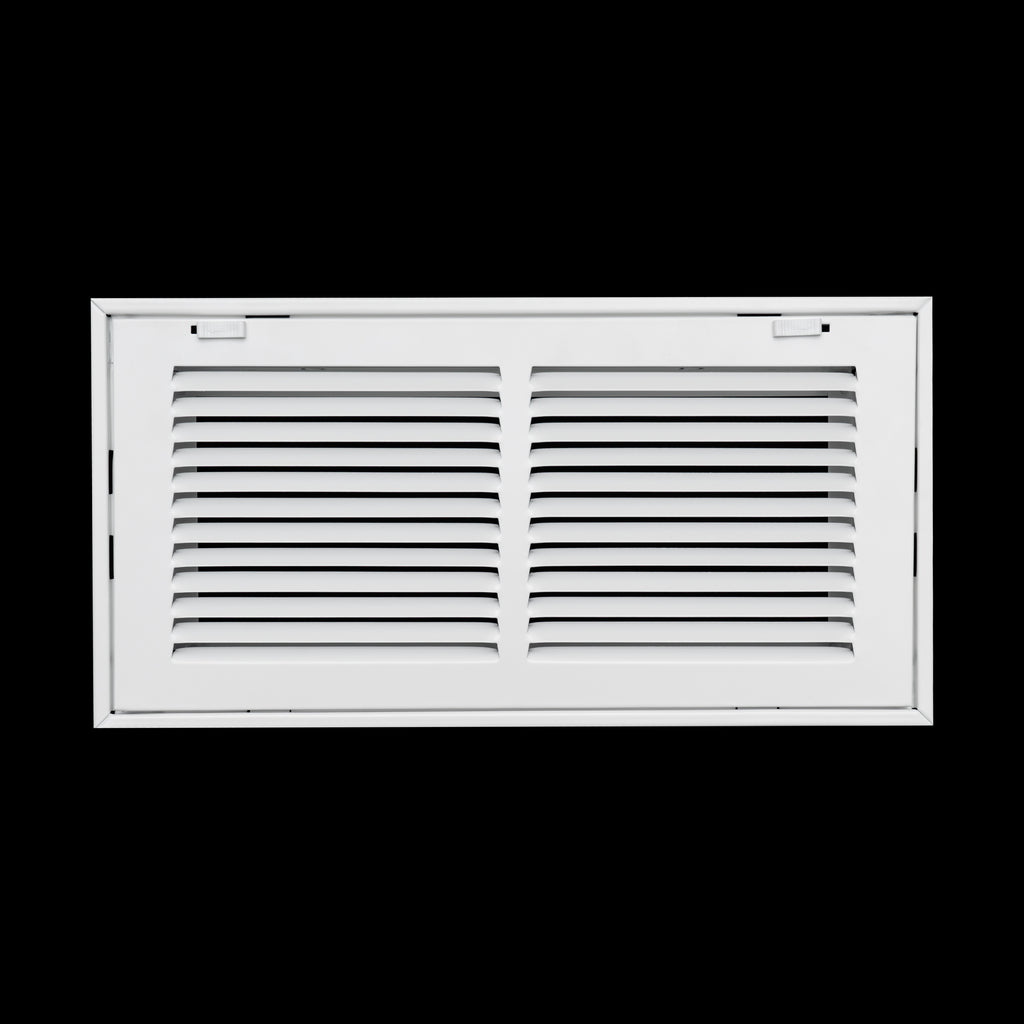

110203-6 14x6 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	14x6 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		14"W x 6"HFilter-ready					Steel	16-5/8"W X 8-5/8"H	White			$28.69Filter-ready	$27.26	$27.26	$27.26	$27.26
110202-16 20x14 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	20x14 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		20"W x 14"HFilter-ready					Steel	22-5/8"W X 16-5/8"H	White			$20.79Filter-ready	$19.76	$19.76	$19.76	$19.76		Quantity for 20x14 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 89 in stock
110202-5 20x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	20x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		20"W x 20"HFilter-ready					Steel	22-5/8"W X 22-5/8"H	White			$31.19Filter-ready	$29.64	$29.64	$29.64	$29.64		Quantity for 20x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 622 in stock
110202-13 18x18 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	18x18 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		18"W x 18"HFilter-ready					Steel	20-5/8"W X 20-5/8"H	White			$31.39Filter-ready	$29.83	$29.83	$29.83	$29.83		Quantity for 18x18 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 19 in stock
110202-15 20x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	20x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		20"W x 12"HFilter-ready					Steel	22-5/8"W X 14-5/8"H	White			$33.59Filter-ready	$31.92	$31.92	$31.92	$31.92		Quantity for 20x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 149 in stock
110202-21 24x18 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	24x18 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		24"W x 18"HFilter-ready					Steel	26-5/8"W X 20-5/8"H	White			$45.09Filter-ready	$42.84	$42.84	$42.84	$42.84		Quantity for 24x18 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 2 in stock
110202-24 30x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	30x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		30"W x 12"HFilter-ready					Steel	32-5/8"W X 14-5/8"H	White			$35.49Filter-ready	$33.72	$33.72	$33.72	$33.72		Quantity for 30x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 22 in stock
110202-10 14x30 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	14x30 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		14"W x 30"HFilter-ready					Steel	16-5/8"W X 32-5/8"H	White			$45.09Filter-ready	$42.84	$42.84	$42.84	$42.84		Quantity for 14x30 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 27 in stock
110202-18 20x30 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	20x30 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		20"W x 30"HFilter-ready					Steel	22-5/8"W X 32-5/8"H	White			$56.19Filter-ready	$53.39	$53.39	$53.39	$53.39		Quantity for 20x30 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 27 in stock
110202-8 30x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	30x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		30"W x 20"HFilter-ready					Steel	32-5/8"W X 22-5/8"H	White			$47.09Filter-ready	$44.74	$44.74	$44.74	$44.74		Quantity for 30x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 45 in stock

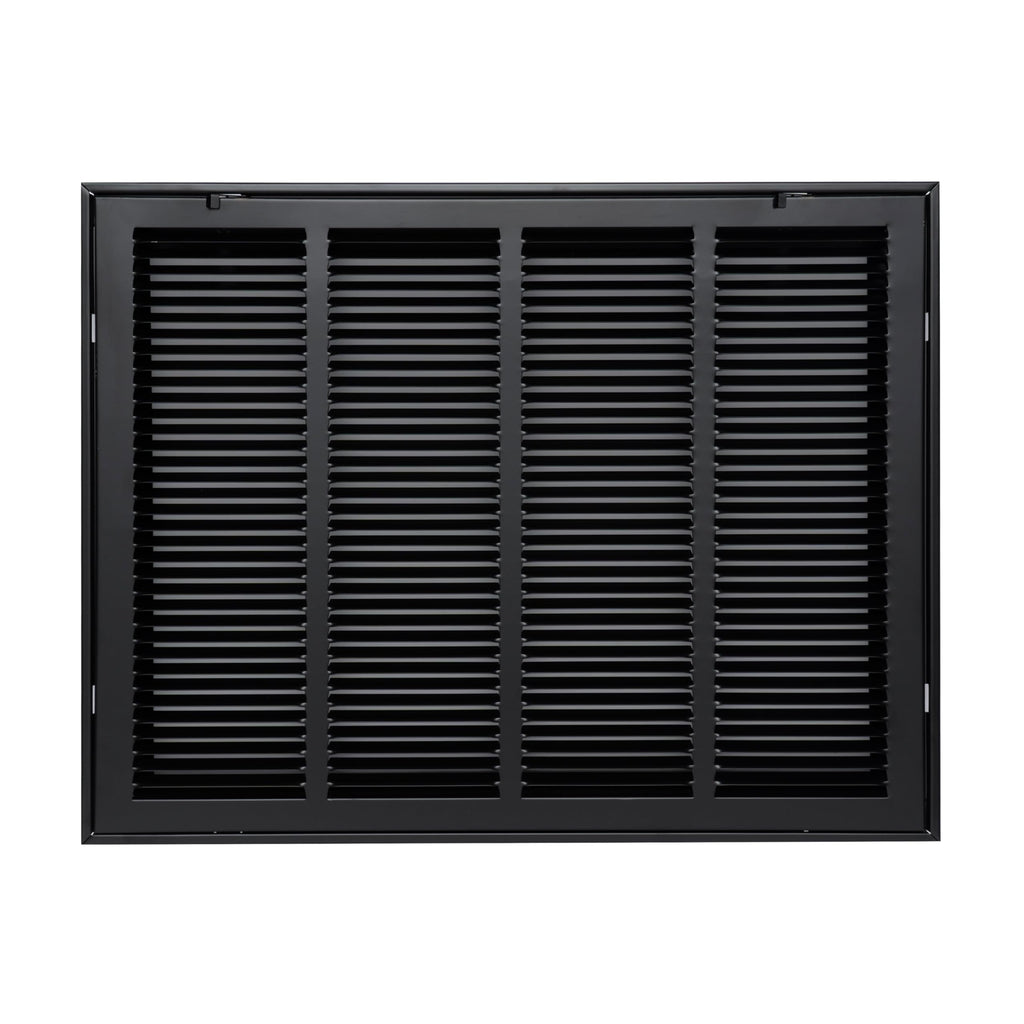

110203-30 24x18 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	24x18 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		24"W x 18"HFilter-ready					Steel	26-5/8"W X 20-5/8"H	Black			$67.59Filter-ready	$64.22	$62.19	$60.16	$57.46		Quantity for 24x18 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 110 in stock
110202-19 24x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	24x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		24"W x 12"HFilter-ready					Steel	26-5/8"W X 14-5/8"H	White			$36.99Filter-ready	$35.15	$35.15	$35.15	$35.15		Quantity for 24x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 149 in stock

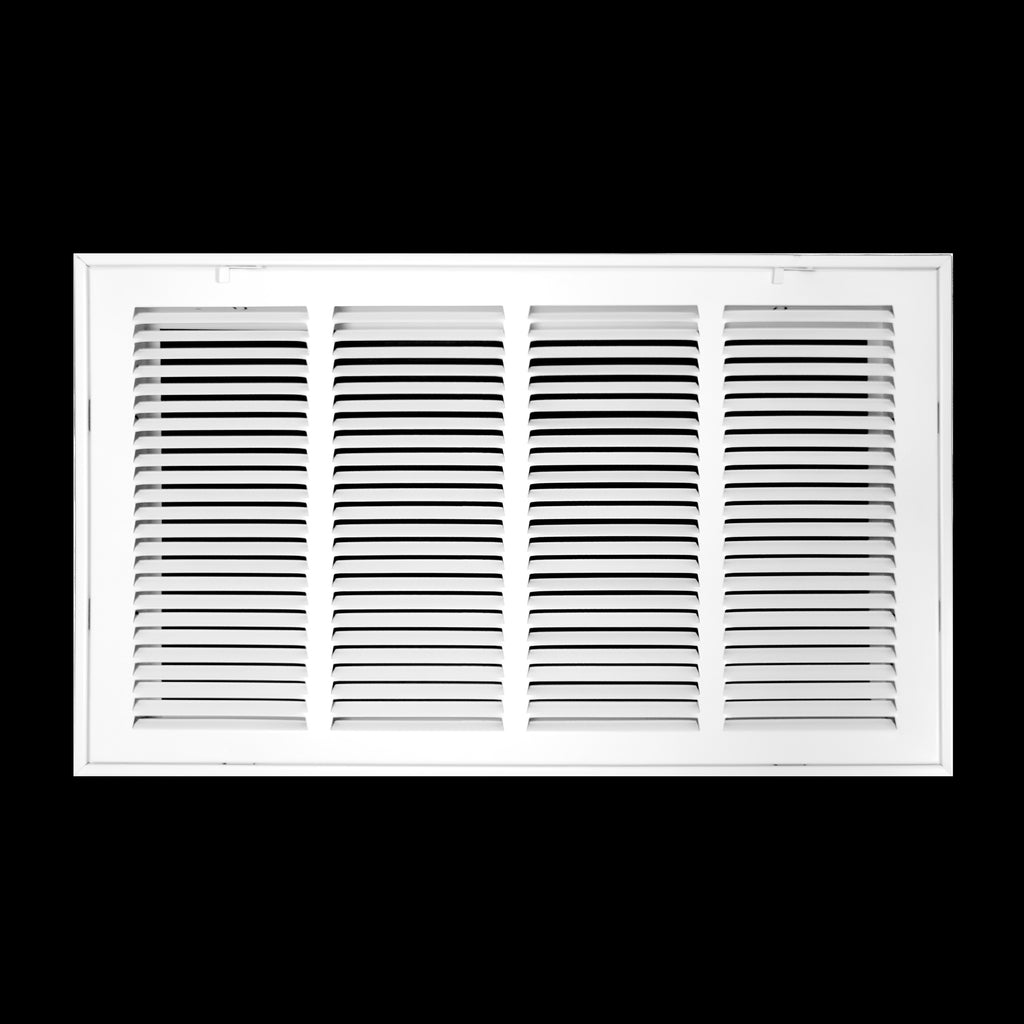

110203-35 22x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	22x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		22"W x 12"HFilter-ready					Steel	24-5/8"W X 14-5/8"H	White			$78.59Filter-ready	$74.67	$73.09	$71.52	$70.74

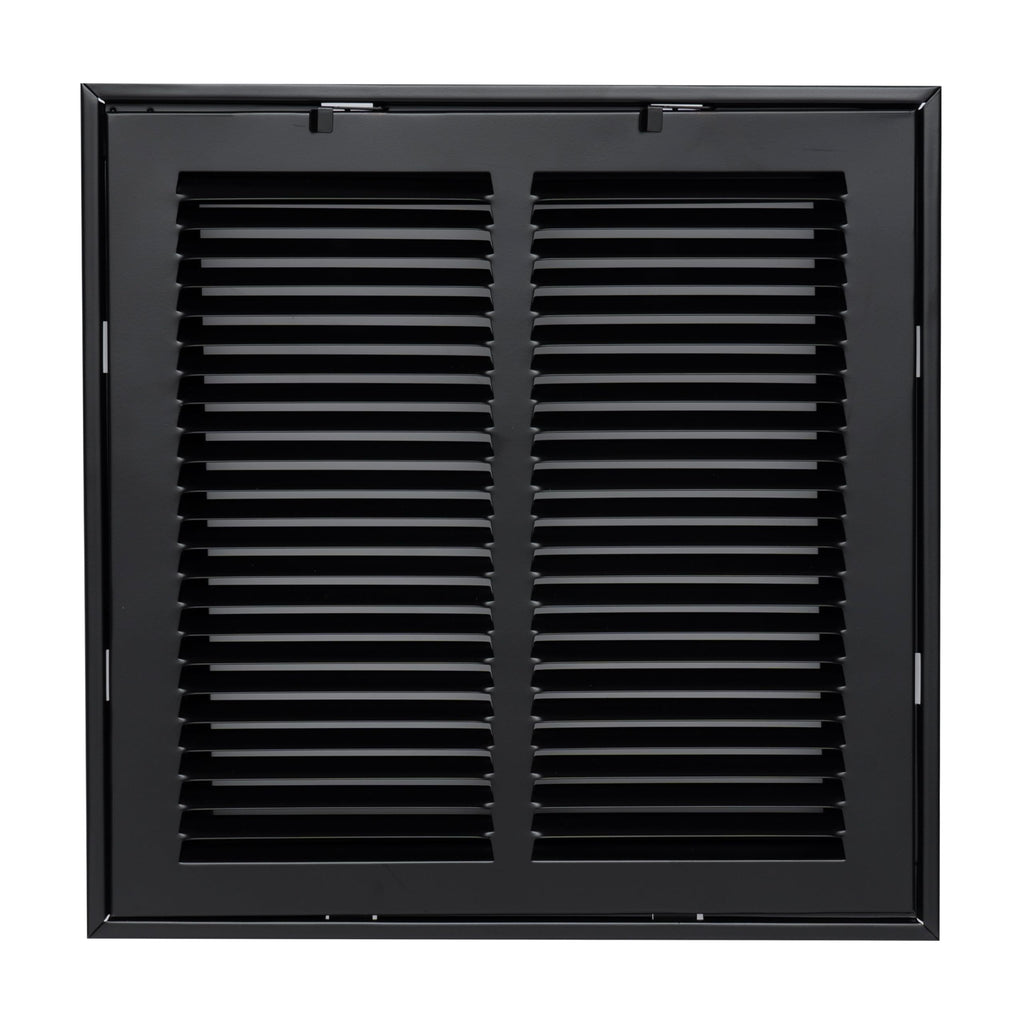

110203-25 12x12 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	12x12 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		12"W x 12"HFilter-ready					Steel	14-5/8"W X 14-5/8"H	Black			$43.56Filter-ready	$41.39	$40.08	$38.77	$37.03		Quantity for 12x12 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 57 in stock
110202-9 14x24 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	14x24 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		14"W x 24"HFilter-ready					Steel	16-5/8"W X 26-5/8"H	White			$40.89Filter-ready	$38.85	$38.85	$38.85	$38.85		Quantity for 14x24 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 253 in stock

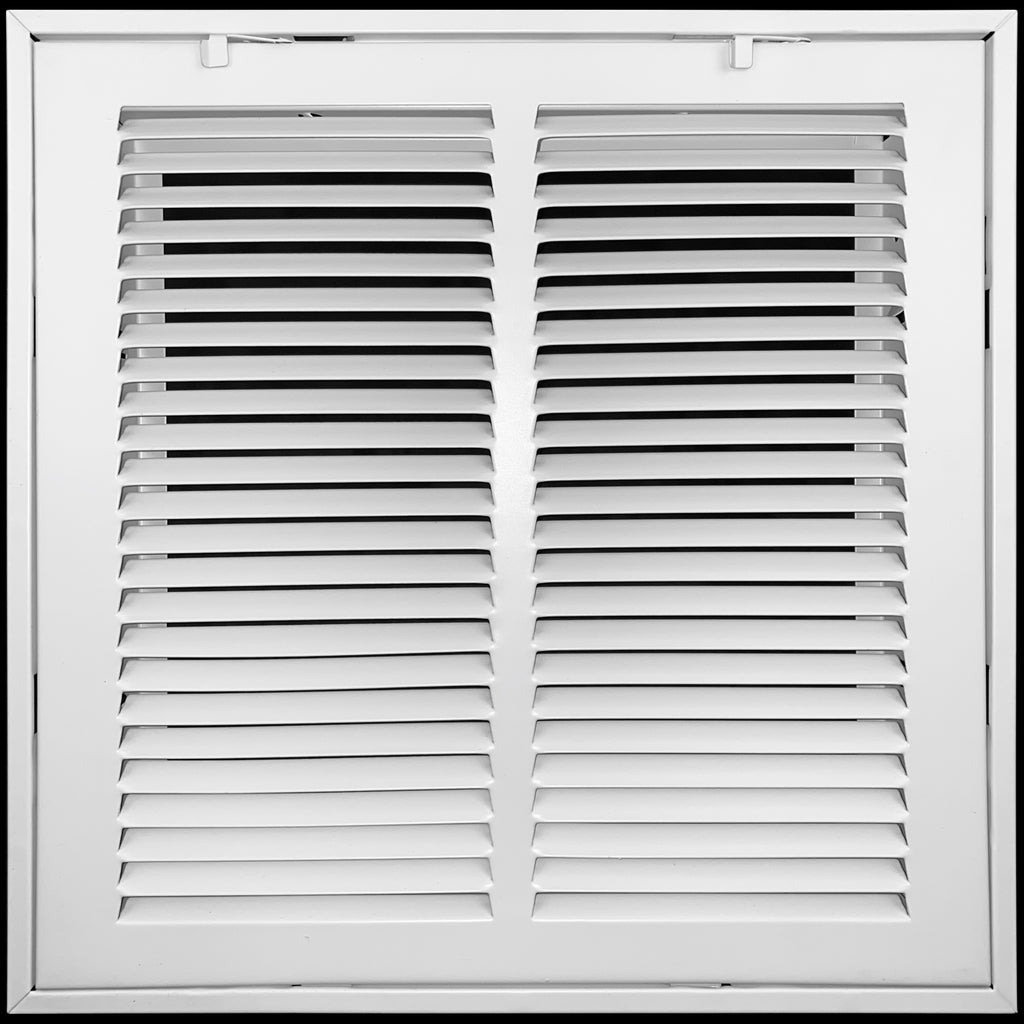

110202-1 12x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	12x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		12"W x 12"HFilter-ready					Steel	14-5/8"W X 14-5/8"H	White			$19.29Filter-ready	$18.33	$18.33	$18.33	$18.33		Quantity for 12x12 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 154 in stock
110202-17 20x16 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	20x16 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		20"W x 16"HFilter-ready					Steel	22-5/8"W X 18-5/8"H	White			$39.99Filter-ready	$38.00	$38.00	$38.00	$38.00		Quantity for 20x16 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 103 in stock
110202-20 24x14 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	24x14 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		24"W x 14"HFilter-ready					Steel	26-5/8"W X 16-5/8"H	White			$42.19Filter-ready	$40.09	$40.09	$40.09	$40.09		Quantity for 24x14 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 342 in stock
110202-22 24x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	24x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		24"W x 20"HFilter-ready					Steel	26-5/8"W X 22-5/8"H	White			$45.09Filter-ready	$42.84	$42.84	$42.84	$42.84		Quantity for 24x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 26 in stock
110202-23 25x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	25x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		25"W x 20"HFilter-ready					Steel	27-5/8"W X 22-5/8"H	White			$43.49Filter-ready	$41.32	$41.32	$41.32	$41.32		Quantity for 25x20 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters 161 in stock
110203-31 24x24 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	24x24 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		24"W x 24"HFilter-ready					Steel	26-5/8"W X 26-5/8"H	Black			$81.79Filter-ready	$77.71	$75.25	$72.80	$69.53

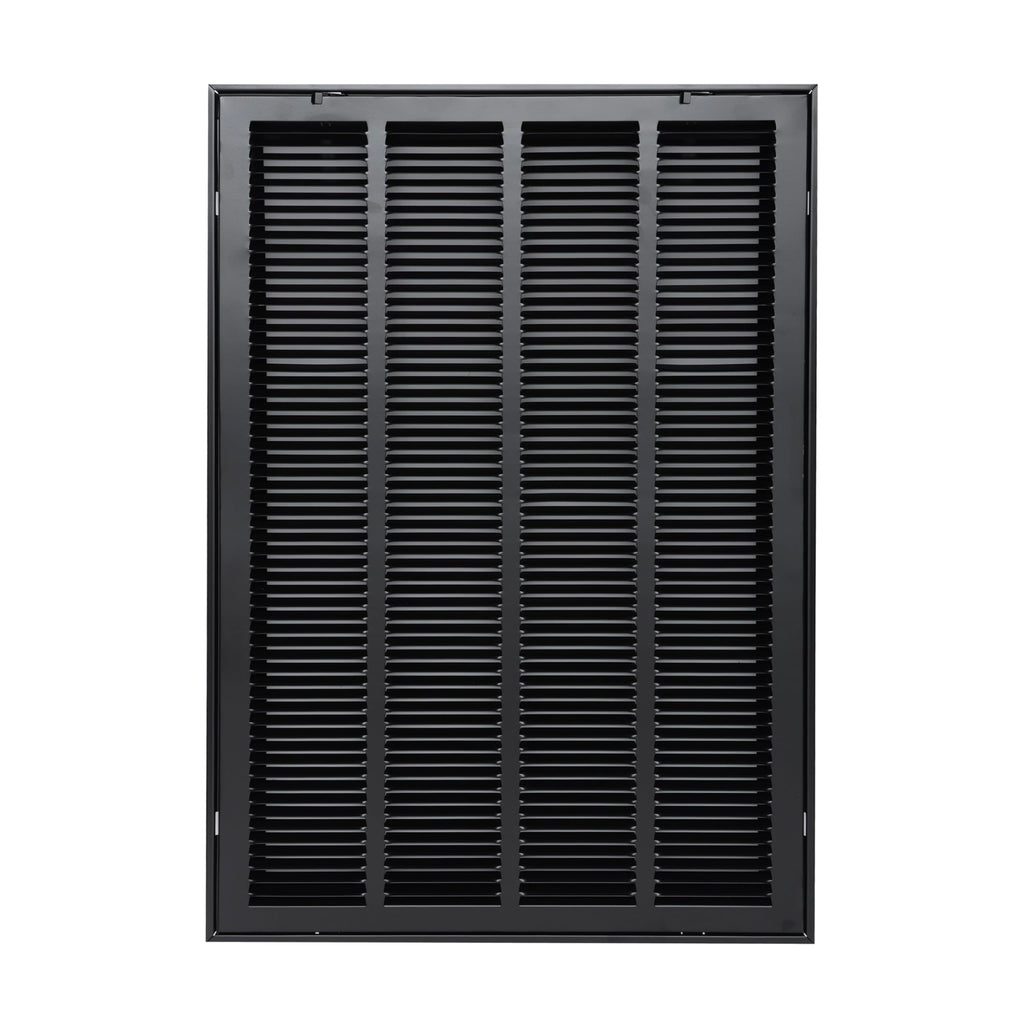

110203-28 20x30 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	20x30 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		20"W x 30"HFilter-ready					Steel	22-5/8"W X 32-5/8"H	Black			$83.69Filter-ready	$79.51	$77.00	$74.49	$71.14		Quantity for 20x30 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 4 in stock
110203-26 14x14 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	14x14 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		14"W x 14"HFilter-ready					Steel	16-5/8"W X 16-5/8"H	Black			$48.18Filter-ready	$45.78	$44.33	$42.89	$40.96		Quantity for 14x14 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 7 in stock

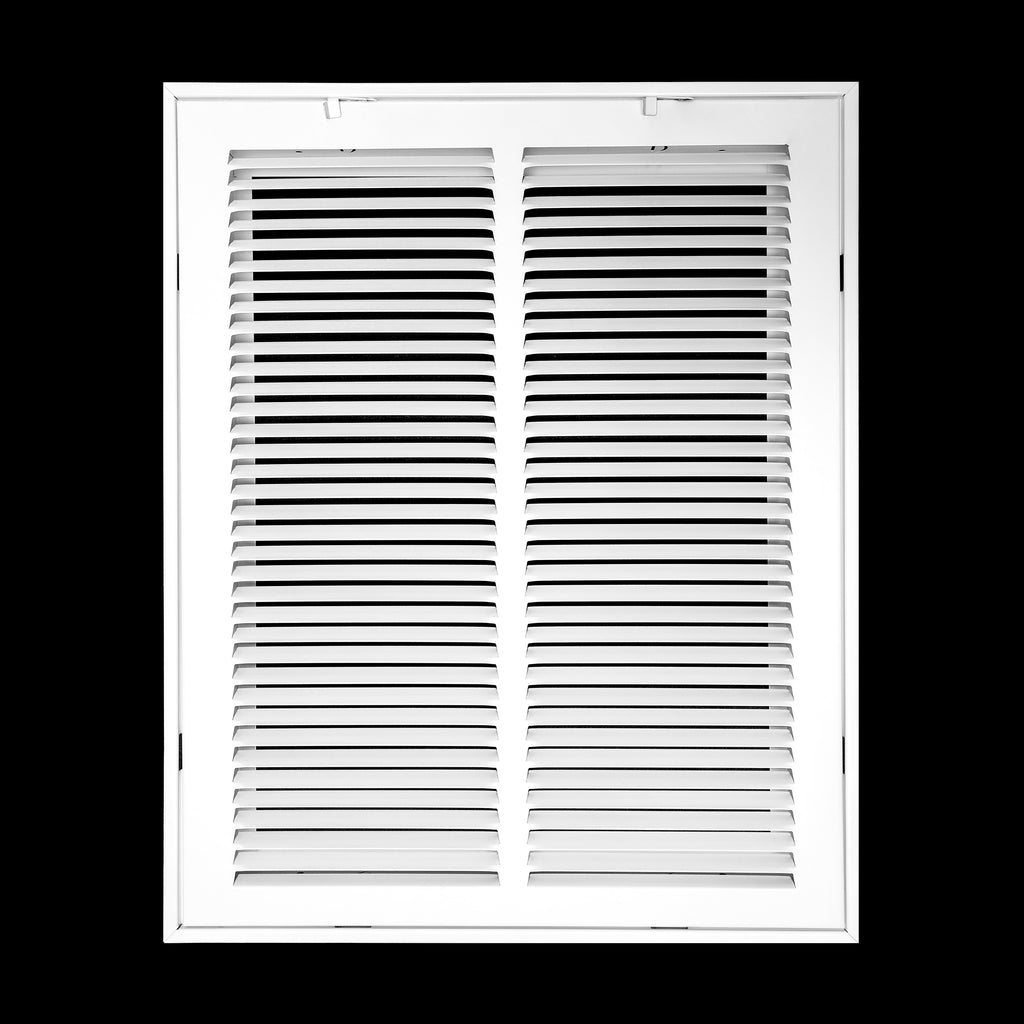

110203-32 14x18 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	14x18 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		14"W x 18"HFilter-ready					Steel	16-5/8"W X 20-5/8"H	White			$103.95Filter-ready	$98.76	$96.68	$94.60	$93.56

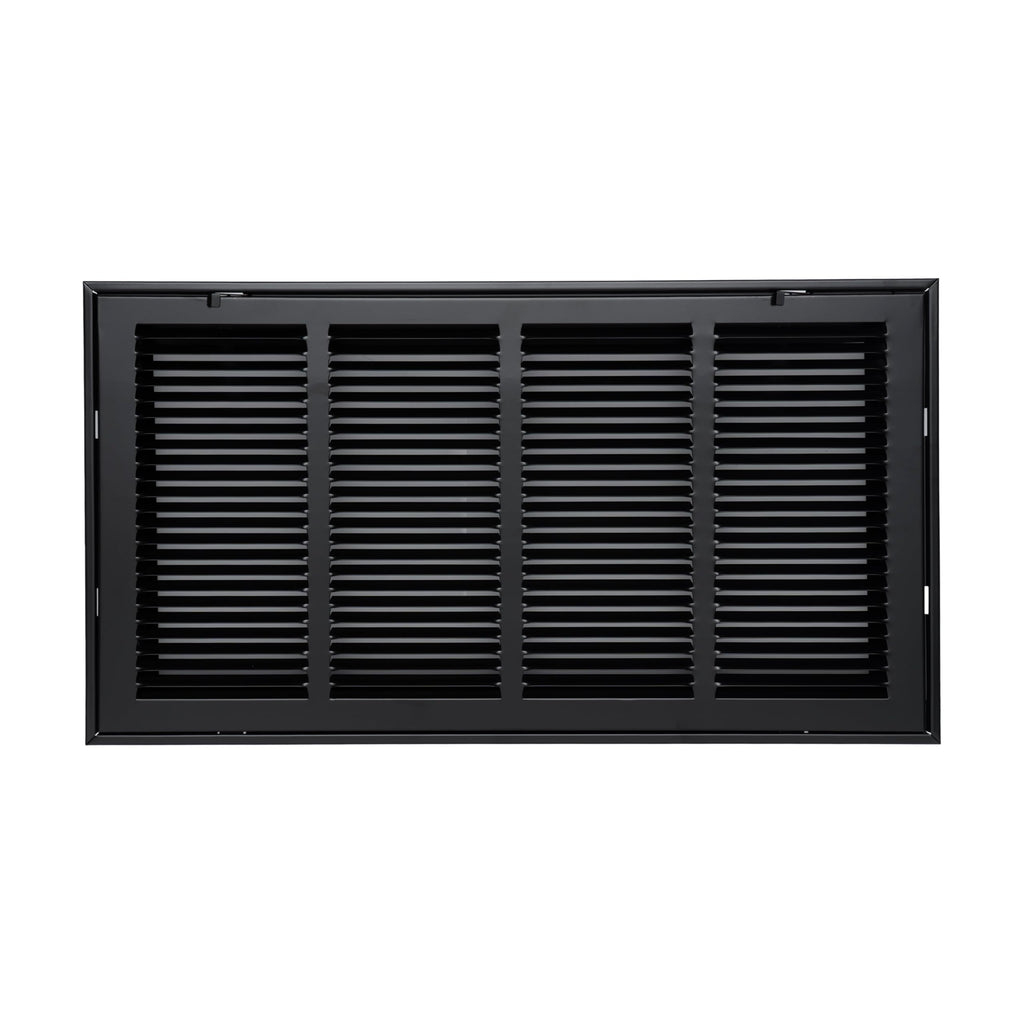

110203-29 24x12 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	24x12 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		24"W x 12"HFilter-ready					Steel	26-5/8"W X 14-5/8"H	Black			$52.29Filter-ready	$49.68	$48.11	$46.54	$44.45		Quantity for 24x12 Black Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters 28 in stock
110202-12 16x25 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters	16x25 White Steel Return Air Filter Grille, Removable Door, Plastic Latches, for 1-Inch Filters		16"W x 25"HFilter-ready					Steel	18-5/8"W X 27-5/8"H	White			$32.09Filter-ready	$30.49	$30.49	$30.49	$30.49

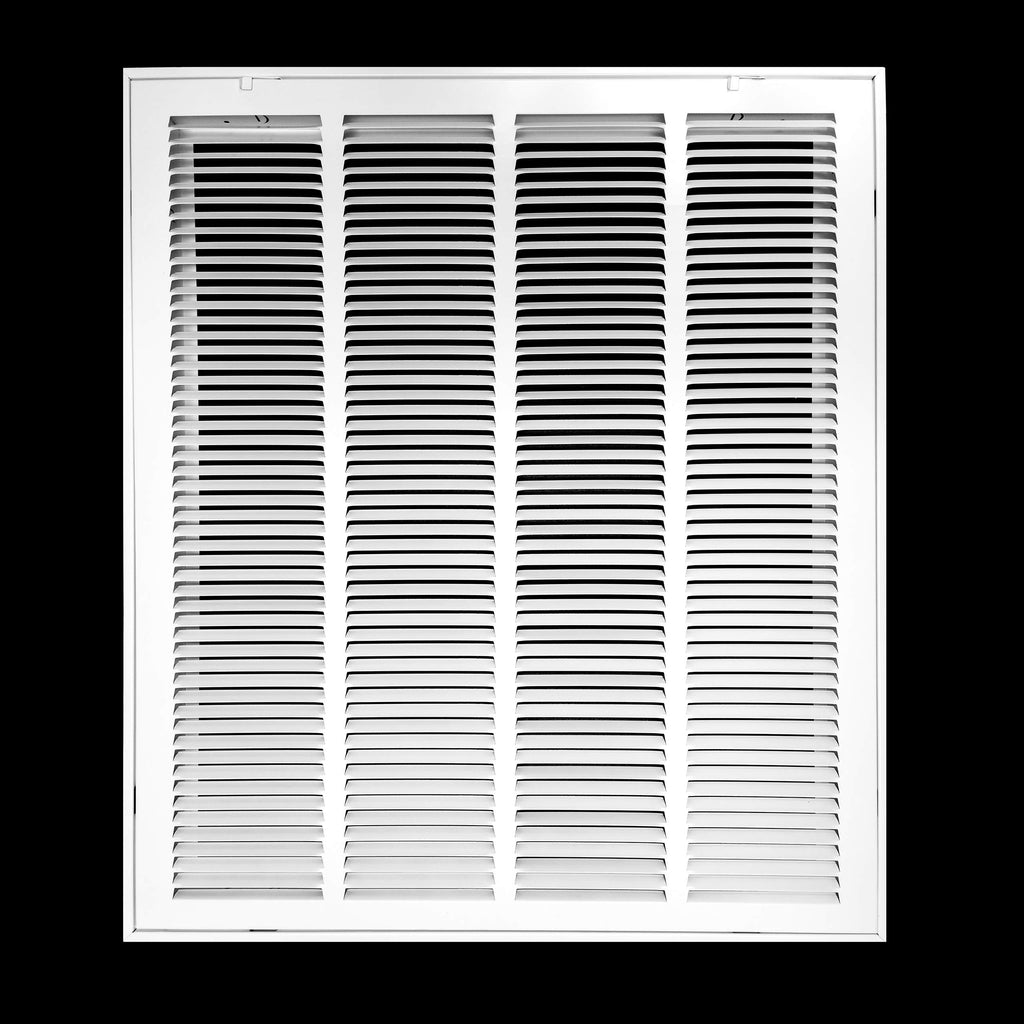

110203-34 18x22 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	18x22 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		18"W x 22"HFilter-ready					Steel	20-5/8"W X 24-5/8"H	White			$45.59Filter-ready	$43.32	$42.40	$41.49	$41.04

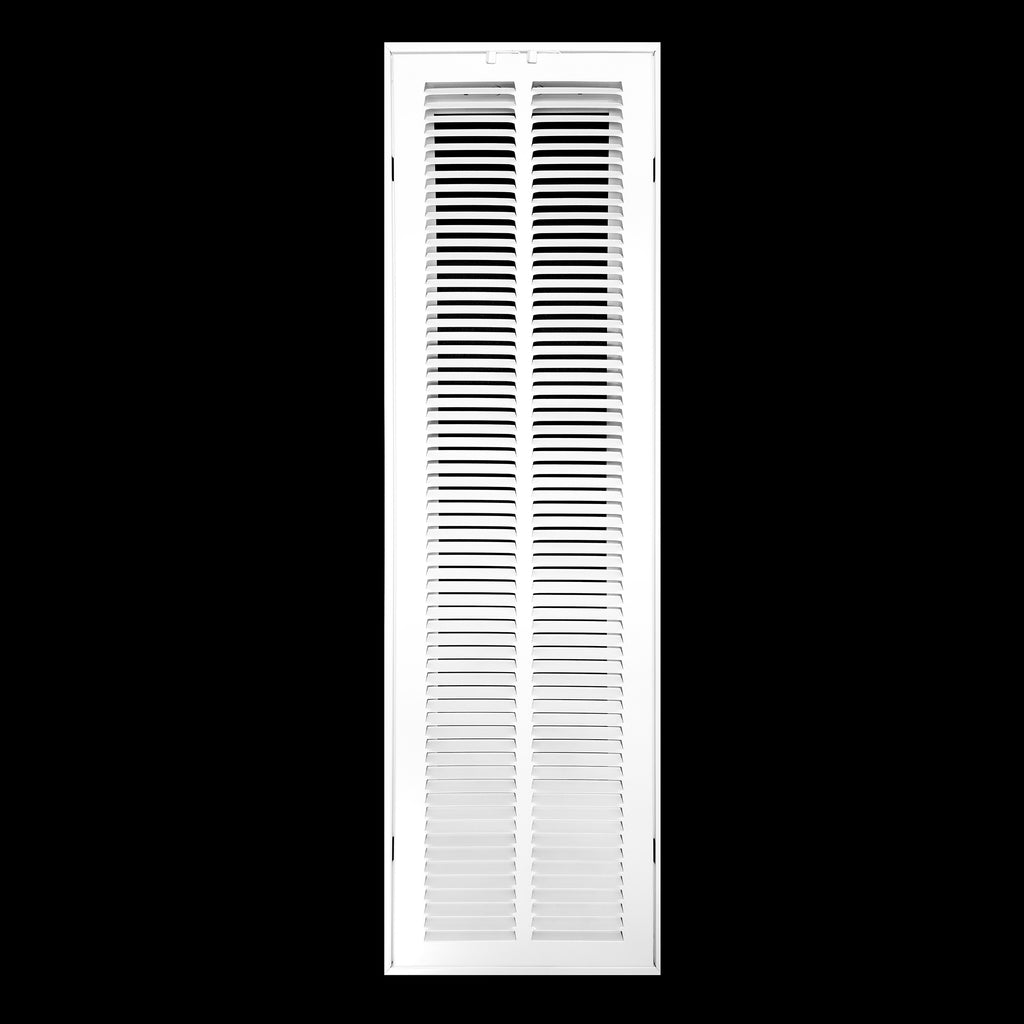

110203-38 8x32 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	8x32 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		8"W x 32"HFilter-ready					Steel	10-5/8"W X 34-5/8"H	White			$38.33Filter-ready	$36.42	$35.65	$34.89	$34.50
110203-37 32x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	32x12 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		32"W x 12"HFilter-ready					Steel	34-5/8"W X 14-5/8"H	White			$38.94Filter-ready	$37.00	$36.22	$35.44	$35.05

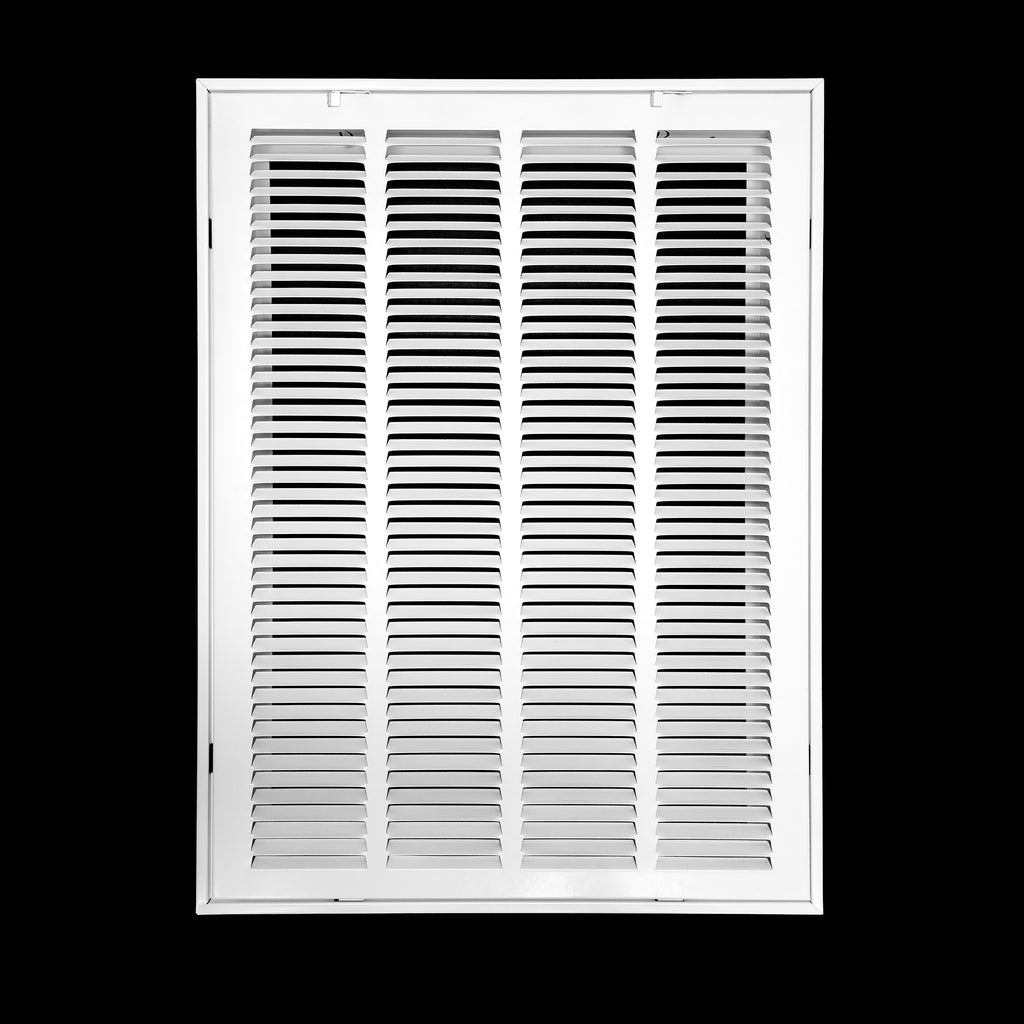

110203-33 16x22 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters	16x22 White Steel Return Air Filter Grille, Removable Door, for 1-Inch Filters		16"W x 22"HFilter-ready					Steel	18-5/8"W X 24-5/8"H	White			$37.01Filter-ready	$35.16	$34.42	$33.68	$33.31

Steel Return Filter Grilles / Removable Door

Steel return filter grilles with a removable door lift the entire face off the wall or ceiling opening, giving the fastest access to the filter and the duct behind it. Within the Return Air Filter Grilles range, AirGrilles stocks the removable door style in 2 colors, black and white, with widths from 8 inches to 32 inches and heights from 6 inches to 32 inches. The stamped steel face carries 40-degree angled fins for maximum airflow, with no sharp edges on the finished stamping. For a face that stays attached during a filter change, AirGrilles also carries a fixed hinged door style in the same family. Bulk pricing runs across 6 quantity tiers with savings up to 30%, orders of 500+ units qualify for custom production, and in-stock items ship the same day on orders placed by 11AM ET.

A Filter Grille Door That Lifts Off Completely

A removable door filter grille separates completely from the wall or ceiling opening, so the filter and the duct behind it are fully exposed during a change. Within the Return Air Filter Grilles range, the removable door style gives the fastest filter access of the three door styles, since nothing stays attached to slow the swap down. The stamped steel face carries 40-degree angled fins for maximum airflow, with no sharp edges left on the finished stamping. That full-off access also makes cleaning the grille itself easier than a hinged style.

Widths, Heights, and Color Range

Removable door filter grilles cover the widest sizing range of the three filter grille door styles, with widths from 8 to 32 inches and heights from 6 to 32 inches. The range ships in 2 colors, black and white, both finished with a powder coat baked onto the steel. That range covers small closet returns up to large central returns in a single door style. Once the opening size and color are confirmed, the outer dimensions decide the final fit.

Sizing, Bulk and Custom Orders

Removable door filter grilles are ordered by the duct opening, measured width by height, never by the outer cover. The outer face runs about 2-1/2 inches larger than the opening to house the filter frame, so a 12"W x 12"H opening uses a face near 14-5/8"W x 14-5/8"H. For a door that stays attached during a filter change, Steel Return Filter Grilles / Fixed Hinged Door covers that style instead. Bulk pricing spans 6 quantity tiers, from 1 unit to 100+, with savings up to 30% at the higher tiers. Orders of 500+ units qualify for custom production depending on size, color, and lead time, and in-stock items ship the same day on orders placed by 11AM ET.

Common Questions About Steel Return Filter Grilles with a Removable Door

These answers cover the door, sizing, filter, and ordering questions that come up most on removable door filter grilles.

How does the removable door work?

The removable door lifts completely off the frame mounted to the wall or ceiling, exposing the filter and the duct opening behind it. There is no hinge holding the face in place, so the door comes free in one motion. Set the door aside during cleaning, then press it back into the frame when the filter is replaced.

When should I choose a hinged door instead of removable?

Steel Return Filter Grilles / Fixed Hinged Door keeps the face attached during a filter change, which helps on ceiling returns where setting a loose door down is awkward. A removable door works best within easy reach on a wall. Choose the hinged style for ceiling installs and the removable style for wall installs.

How do I size a removable door filter grille?

Measure the duct opening width and height, then order by that listed size rather than the visible cover on an old grille. The outer face runs about 2-1/2 inches larger to house the filter frame. Widths run 8 to 32 inches and heights 6 to 32 inches in stock.

Does the removable door come with a filter included?

Not by default; a removable door filter grille holds a standard 1-inch filter you supply. Steel Return Filter Grilles / Removable Door & Filter Included ships with a matching starter filter in the same order instead. Choose filter-included for a ready-to-install package.

What colors does the removable door style come in?

The range ships in black and white, both finished with a powder coat baked onto the steel. White blends into most walls and ceilings, and black suits dark trim and architectural finishes. Check the product listing for the latest color availability by size.

Is there a bulk discount on removable door filter grilles?

Yes, bulk pricing applies automatically across 6 quantity tiers, with savings up to 30% at the 50+ tier. Orders of 500+ units qualify for custom production depending on size, color, and lead time. In-stock items ship the same day on orders placed by 11AM ET.

What Amazon buyers said

4.9

based on 186 Amazon reviews

December 2, 2025

Great product

perfect replacement for an old and rusty return air filter grille. I was able to remove the old frame and install the new grille in about half an hour. I also love that it is a quality product and is a good weight. The door is removable to clean. Also, my preference is the little levers on this model instead of the ones that slide. We are very happy with this grille.

LindaPBFL20"x20" White Steel Return Air Filter GrilleAmazon

July 3, 2026

Great Upgrade, But Plan for Extra Hardware

This grille arrived in excellent shipping packaging, featuring heavy-duty black plastic corner covers that kept the metal completely secure and protected it from bending or getting dinged in transit. It is a very nice cosmetic upgrade if you are replacing an old, dated, or heavily painted builder-grade unit. While the steel construction isn't remarkably solid, it is definitely "good enough" for a sturdy home installation, and the crisp white finish completely modernizes the space.For the smoothest installation, I highly recommend having an impact driver, 8 white hex washer screws, a caulk gun, and some drywall caulk on hand. Make sure to follow the included instruction card, paying close attention to the steps that tell you to detach the grille door completely before starting. Taking the door off its hinges makes a massive difference for a solo ceiling install, as it keeps the heavy door from swinging in your face and allows you to easily hold the lightweight outer collar overhead while driving your screws. Keep in mind that the manufacturer only includes 4 screws, even though the frame has 12 total hole options. To get a secure, rattle-free fit, I skipped the vertical face holes entirely and used my impact driver to secure 8 matching white hex washer screws horizontally into the side framing.The design features on this unit are fantastic. The door latches are incredibly smooth and easy on the fingertips, making the routine chore of changing the air filter effortless compared to older models. Best of all, the door is completely interchangeable; you can easily unhook the hinges and flip the door 180 degrees to face the fins away from your common sightlines, perfectly hiding the inner filter from view. The generous outer flange also provides a nice overhang all the way around to mask any ugly drywall gaps left behind by the old frame. As a final step, taking a few minutes to run a bead of drywall caulk exclusively around the outer frame where it borders the drywall completely changes the game. It seals any micro-gaps to prevent dark dust tracks over time and visually integrates the grille right into the ceiling for a flawless, professional finish.Cons is the price was steep and I had to wait a long time on shipping. However the end result is good.

Ryan12"x12" White Steel Return Air Filter GrilleAmazon

January 31, 2026

Makes Replacing my Filter Super Easy and Looks Great!

I live in a small condo, and trying to change my furnace filter in the small space between the furnace and water heater was difficult. My HVAC guy suggested replacing the air intake grille with a filter grille. Definitely one of the best suggestions I received for maintaining my furnace.This air filter grille is very sturdy, no bend to it, easy to open and replace the filter. The airflow in the vent openings is the same as my old grille, but now with a filter installed. (Be sure to check MERV ratings on the filters you buy). Cleaning should not be a problem, as it is easy to get to on the wall outside the utility room. It looks so much better than the old grill, which had the openings vertically which allowed you to see inside an ugly hole in the wall. (see photo, excuse the mess, getting flooring replaced.)I measured as directed, and it fit tightly inside the duct opening. This is definitely one of my most useful purchases. I would highly recommend it.

MsGrace12"x12" White Steel Return Air Filter GrilleAmazon

April 1, 2026

Perfect fit

Fit perfectly. I measured the inside of the vent opening and it was an easy install with 4 screws. I went to a big box store and it seemed their sizes were vague and I hate returning things.

James14"x20" White Steel Return Air Filter GrilleAmazon

June 27, 2026

Great product. Hands down.

Hands down best one. I was having such a hard time to replace the old sticky greasy vent cover for an old house and now house looks like new. Thank you thank you so much

sunshines4star12"x12" White Steel Return Air Filter GrilleAmazon

Trending Now

Trending Now

Steel Return Filter Grilles / Removable Door

Steel Return Filter Grilles / Removable Door

A Filter Grille Door That Lifts Off Completely

Widths, Heights, and Color Range

Sizing, Bulk and Custom Orders

Common Questions About Steel Return Filter Grilles with a Removable Door

How does the removable door work?

When should I choose a hinged door instead of removable?

How do I size a removable door filter grille?

Does the removable door come with a filter included?

What colors does the removable door style come in?

Is there a bulk discount on removable door filter grilles?

What Amazon buyers said

Trending Now

Trending Now

Let's get the fit right the first time

Trending Now

Steel Return Filter Grilles / Removable Door

Steel Return Filter Grilles / Removable Door

A Filter Grille Door That Lifts Off Completely

Widths, Heights, and Color Range

Sizing, Bulk and Custom Orders

Common Questions About Steel Return Filter Grilles with a Removable Door

How does the removable door work?

When should I choose a hinged door instead of removable?

How do I size a removable door filter grille?

Does the removable door come with a filter included?

What colors does the removable door style come in?

Is there a bulk discount on removable door filter grilles?

What Amazon buyers said

Shop the look

Choose Options

Edit Option

Back In Stock Notification

Trending Now
