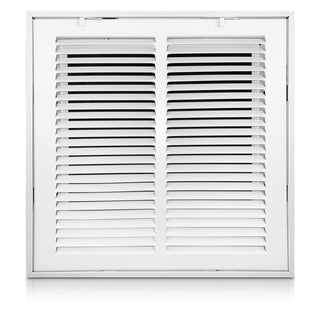

Steel Return Air Filter Grilles

Steel return air filter grilles hold standard 1-inch HVAC filters directly at the wall or ceiling duct opening, keeping dust and debris out of your air handling system. Within the return filter grille family, AirGrilles stocks three primary configurations—Removable Door, Fixed Hinged Door, and Filter Included sets—in 2 colors, black and white. Sizing ranges from 8 inches to 32 inches in width and 6 inches to 32 inches in height. Built from heavy-duty stamped steel with 40-degree angled fins for optimal airflow, these grilles provide reliable performance and easy filter access. Bulk pricing runs across 6 quantity tiers with savings up to 30%, orders of 500+ units qualify for custom production, and in-stock items ship the same day on orders placed by 11AM ET.

Choosing Between Removable Door, Fixed Hinged, and Filter-Included Styles

Selecting the right filter grille depends on your installation location and convenience preferences:

• Steel Return Filter Grilles / Removable Door: The entire front face lifts completely off the frame, giving unhindered access to the filter and duct opening. This style is ideal for easy-to-reach wall installations and makes cleaning the grille face effortless.
• Steel Return Filter Grilles / Fixed Hinged Door: The door swings open on secure hinges while staying attached to the frame. This design prevents the door from dropping or having to be set aside, making it the preferred choice for overhead ceiling returns.
• Steel Return Filter Grilles / Filter Included: Bundles a steel filter grille (available in hinged or removable styles) with a pre-matched, ready-to-install air filter so you have everything needed for immediate setup right out of the box.

Sizes, Finishes, and Duct Fitting

Return filter grilles are ordered by the duct opening dimensions (width by height), not by the outer frame size. Because the outer frame houses the internal filter track, the visible face measures approximately 2-1/2 inches larger than the listed opening size—for example, a 12"W x 12"H opening uses a face around 14-5/8"W x 14-5/8"H. All styles feature a durable, baked-on powder-coated finish in neutral white or modern black to complement any wall or ceiling aesthetic.

Common Questions About Steel Return Air Filter Grilles

These answers cover door styles, sizing rules, filter compatibility, and ordering details across the entire steel return air filter grille collection.

Which door style should I choose for wall vs. ceiling installations?

Fixed Hinged Door grilles are best suited for ceiling returns because the door remains attached during filter changes, eliminating the risk of dropping the cover. Removable Door grilles work exceptionally well on walls where the door can be lifted off easily and set aside for quick filter swaps or deep cleaning.

What size filter do these return air grilles hold?

All standard steel return air filter grilles in this collection are designed to house standard 1-inch thick air filters. Match the nominal size of your filter directly to the listed duct opening size of the grille.

How do I accurately size a return filter grille?

Measure the interior width and height of the wall or ceiling duct opening. Always order by the opening dimensions rather than measuring the outer face of an existing grille cover, as outer frames extend roughly 2-1/2 inches past the duct edge to accommodate the filter housing.

Are filter-included sets available for both door styles?

Yes. Our Filter Included options pair compatible air filters with both removable and fixed hinged door grilles, saving you an extra step when outfitting a new installation.

Is there a bulk discount on steel return air filter grilles?

Yes, bulk pricing applies automatically across 6 quantity tiers, offering up to 30% savings at higher volume tiers. Commercial orders of 500+ units qualify for custom manufacturing depending on size, finish, and lead time. In-stock items ship the same day when ordered by 11AM ET.
