Steel Return Air Grilles for Wall, Ceiling and Floor Returns

Steel return grilles are the rigid, cost-effective workhorse for residential, commercial, and maintenance returns, covering wall, ceiling, floor, and baseboard openings where room air is pulled back into the HVAC system. AirGrilles stocks steel return grilles across 7 styles, including flat return grilles, removable-door and hinged filter grilles, filter-included grilles, baseboard grilles, triangle baseboard grilles, and toe-kick registers. Sized from 2 inches to 32 inches wide and 2 inches to 30 inches high in 4 colors, black, brown, gray, and white, each grille is ordered by the duct opening, with an outer face about 2 inches larger than the opening. Bulk pricing spans 6 quantity tiers with savings up to 30%, orders of 500+ units qualify for custom production, and in-stock items ship the same day on orders placed by 11AM ET.

Steel Return Grille Styles

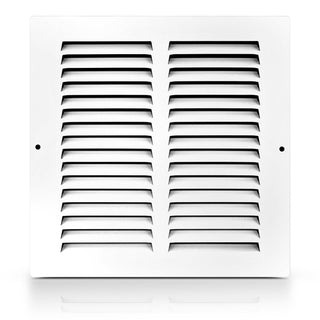

The right steel return grille style depends on where the return sits and whether it holds a filter. Most standard wall and ceiling returns use flat return grilles, a simple stamped face that covers the opening and pulls air back to the system. Filter grilles add a removable or hinged door to hold a filter at the return, baseboard and triangle baseboard grilles fit low wall returns near the floor, and toe-kick registers fit tight spaces under cabinets. Match the style to the return location before sizing the opening.

How to Measure a Steel Return Grille

To measure a steel return grille, remove the old grille and measure the duct opening width and height in the wall, ceiling, or floor, not the outer frame of the old cover. The face runs about 2 inches larger than the opening so it overlaps the edge cleanly, so a 6"W x 12"H opening uses an outer face near 7-3/4"W x 13-3/4"H. Ordering by the outer cover size is the most common return grille mistake, since the face overlap is already built into the listed size. With the opening measured, the face style and filter need finish the choice.

Filter Access on Steel Return Grilles

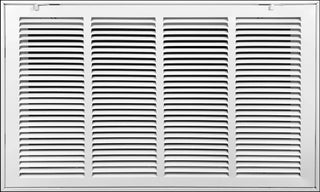

Steel filter grilles hold the HVAC filter at the return, so changes happen at the wall or ceiling instead of the air handler. The return air filter grilles range covers removable-door, fixed-hinged-door, and filter-included styles, all sized for a standard 1-inch filter. A removable door lifts off for the fastest swap, while a hinged door stays attached for ceiling returns. The filter style and the opening size set the grille, while bulk pricing sets the per-unit cost for larger orders.

Bulk, Custom, and Project Orders

Bulk pricing on steel return grilles drops the per-unit cost across 6 quantity tiers: 1, 2-10, 11-20, 21-49, 50+, and 100+, with savings up to 30% at the highest tiers. A typical steel return grille can drop close to 30% per unit from the single-unit rate to the 50+ tier. AirGrilles supports custom steel return grille production on orders of 500+ units, with the exact size, style, finish, and lead time set per project. In-stock items ship the same day on orders placed by 11AM ET, so contractors and maintenance teams standardize returns across many rooms on schedule.

Common Questions About Steel Return Grilles

These answers cover the most common style, sizing, and ordering questions for steel return grilles.

Which steel return grille style do I need?

You should choose the style by the return location and the filter need. Flat grilles suit standard wall returns, filter grilles add filter access, and baseboard grilles fit low wall returns near the floor where a standard grille sits too high. Triangle baseboard grilles handle angled baseboard corners, and toe-kick registers fit under cabinets.

Why choose steel for a return grille?

You should choose steel for the best balance of strength and cost on most returns. Steel is rigid, durable, and economical, which makes it the default for high-traffic walls, floors, and large project orders. Steel return grilles also stay flat over time without the flex of lighter materials.

Do steel returns come in a toe-kick or under-cabinet style?

Yes, steel returns and registers come in a low-profile toe-kick style for tight openings. Use toe-kick registers under cabinets and built-ins, where a standard grille will not seat. Order by the toe-kick opening size, the same way as wall and floor returns.

Can steel return grilles be used on ceilings?

Yes, many steel return grilles work on sidewalls and ceilings, not just walls. Check each product listing for the rated mounting location, since some faces are built for specific orientations. Match the grille to the ceiling or wall return before ordering.

Should I choose steel or aluminum for a return grille?

You should choose steel for most returns, where rigidity and cost matter most. Choose aluminum return grilles for ceilings, humid rooms, and high-airflow openings, where lighter weight and corrosion resistance matter more than the extra strength of steel. Match the material to the location and the airflow need.
