Item # 210203-14
8"x6" 3-Way White Steel Air Supply Register, Directional Register Vent Cover for Sidewall Or Ceiling
- Regular price
- $9.89
- Regular price
-
$0.00 - Sale price
- $9.89
- Unit price
- per
Order By Duct Opening Measurements8"W x 6"H

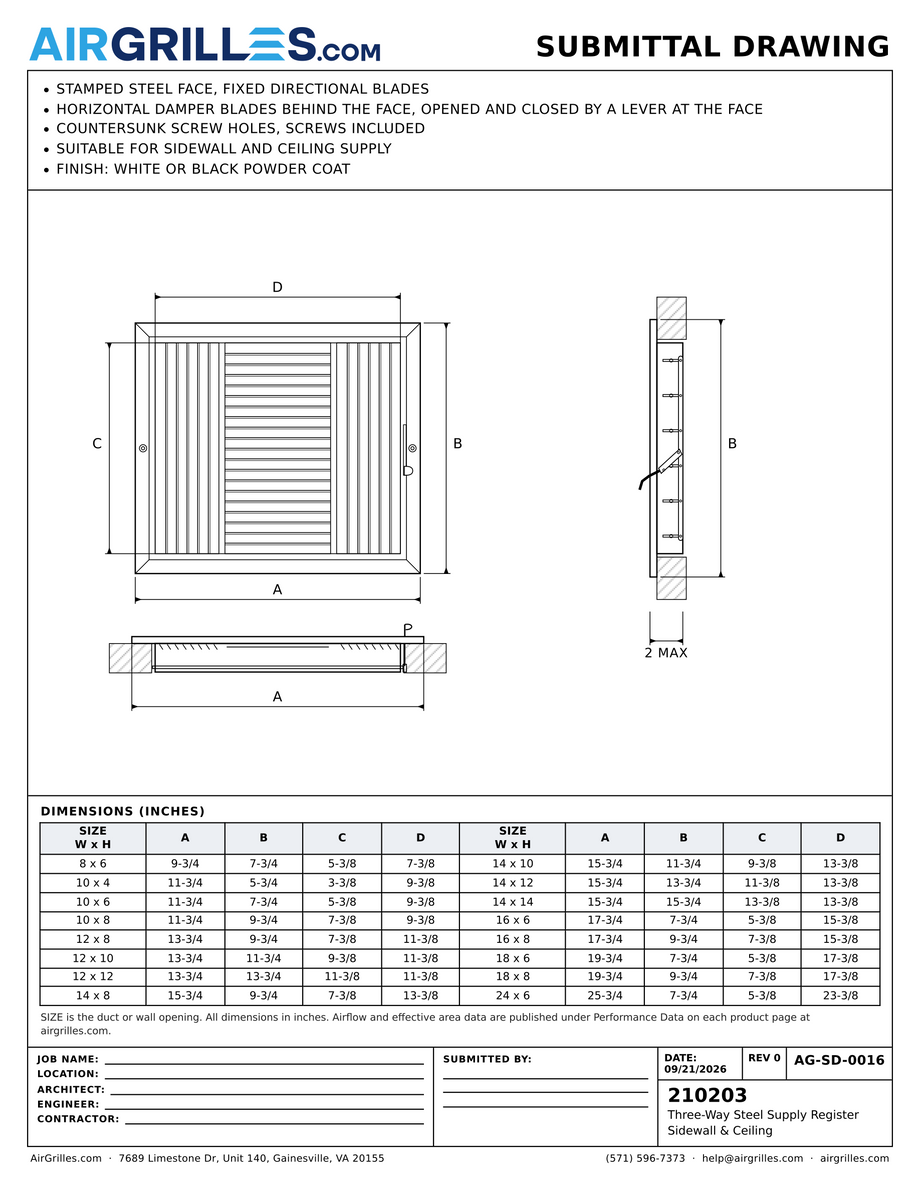

Outer Dimensions
9-3/4"W X 7-3/4"H
overall faceplate size
| Bulk Pricing | ||||
|---|---|---|---|---|
| 2-10 | 11-20 | 21-49 | 50+ | 100+ |
| $9.40 | $9.10 | $8.81 | $8.41 | |
90 in stock - ready to ship
Available Sizes & Options
Size
Neck
Model
Color
Airflow
See all Flat Stamped Steel Supply Registers →
Description
xProduct Overview
The 8"W x 6"H white steel supply register carries supply air into the room through a ceiling and sidewall opening. Powder-coated steel resists dents and rust for years of use, a stronger choice than lightweight plastic covers. The 3-way blade pattern directs air across the room. Select this supply register by its duct opening size, not the overall face size, so it seats correctly on the first fit.
Key Features
- Steel construction: Steel keeps the supply register rigid during installation and resists warping over time.
- White finish: The white finish coordinates with common flooring, trim, and hardware.
- 3-Way air pattern: The 3-way throw sends conditioned air where the space needs it.
- Right-fit sizing: Ordered by duct opening size, this supply register matches standard duct dimensions and cuts wrong-size returns.
Dimensions and Specifications
| Product type | Supply Register |
| Airflow function | Supply air |
| Nominal opening | 8"W x 6"H |
| Overall face dimensions | 9-3/4"W X 7-3/4"H |
| Material | Steel |
| Finish | White |
| Mounting location | Ceiling and Sidewall |
| Airflow pattern | 3-Way |
| Airflow control | Fixed |
| Order by | Duct Opening |
| Pack quantity | 1 |
| MPN | 210203-14 |
| Brand | AirGrilles.com |
Is This the Right Vent for Your Opening?
Choose this supply register if you need a supply-air vent for a ceiling or sidewall opening. This supply register carries supply air and mounts on ceiling and sidewall surfaces. It is not designed for floor installation or foot traffic, exterior or outdoor use, dryer exhaust venting or use as a filter-holding return grille. Confirm the airflow function against your HVAC layout before ordering.
How to Measure for This Vent
Remove the existing vent and measure the width and height of the duct opening, not the outer face of the old cover. Match those two numbers to the nominal size above. The overall face measures 9-3/4"W X 7-3/4"H.
Installation
Position the supply register over the duct opening with the louvers facing the room. Confirm the frame sits flush against the ceiling surface before marking the screw points. Secure it with the included screws without overtightening, since excess force can distort the frame.
What's Included
- 1 x supply register
- Mounting screws
Ductwork, wall anchors, and installation tools are not included.
Care and Maintenance
Clean the supply register with a soft, damp cloth and mild soap. Avoid abrasive chemicals that can damage the white finish. Dry the surface to keep moisture off the metal.
Compare Similar Options
Use this comparison to confirm the supply register matches your opening and airflow need.
| Option | Best for | Material | Installation |
|---|---|---|---|
| This supply register | Wall or ceiling supply openings | Steel | Wall or ceiling |
| Return air grille | Return-air openings | Steel | Wall or ceiling |
| Floor supply register | Floor supply openings | Steel | Floor |
Shipping & Return
xShipping
- Free shipping over $250 (contiguous US). Otherwise calculated at checkout.
- Order by 11:00 AM ET on a business day and it ships the same day — otherwise the next business day.
- Delivery in about 4–5 days after dispatch (FedEx / UPS), with tracking emailed when your order ships.
- US only. We cannot ship to P.O. boxes or APO/FPO addresses.
Returns
- 30-day returns. Item must be unused and in its original packaging; opened packages incur a 20% restocking fee.
- Start a return from your account or at help@airgrilles.com (authorization required). We email a prepaid return label and deduct return shipping from your refund (free if the return is our error); refunds are issued within 5 business days of approval.
- Damaged, defective, wrong, or lost item? Tell us within 7 days with photos and your order number.
Full details: Shipping Policy · Refund & Return Policy
Technical Data
xAirflow Performance Data
| Duct Size (in) | Ak (sq ft) | Metric | Face Velocity (FPM) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 300.0 | 400.0 | 500.0 | 600.0 | 700.0 | 800.0 | 900.0 | 1000.0 | |||
| Pressure Loss (in. w.g.) | all sizes | 0.008 | 0.012 | 0.016 | 0.024 | 0.032 | 0.044 | 0.052 | 0.064 | |
| 8×4 | 0.093 | Air Volume — total (CFM) | 28 | 37 | 47 | 56 | 65 | 74 | 84 | 93 |
| Air Volume — lateral (CFM) | 14 | 18 | 25 | 29 | 34 | 39 | 44 | 49 | ||
| Air Volume — straight (CFM) | 7 | 10 | 11 | 13 | 16 | 18 | 20 | 22 | ||
| Throw — lateral (ft) | 4 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
| Throw — straight (ft) | 3 | 4 | 5 | 5 | 6 | 7 | 8 | 9 | ||
| 6×6 | 0.113 | Air Volume — total (CFM) | 34 | 45 | 57 | 68 | 79 | 90 | 102 | 113 |
| Air Volume — lateral (CFM) | 11 | 15 | 18 | 22 | 25 | 29 | 32 | 36 | ||
| Air Volume — straight (CFM) | 11 | 15 | 19 | 23 | 27 | 30 | 34 | 38 | ||
| Throw — lateral (ft) | 4 | 5 | 7 | 8 | 8 | 9 | 10 | 11 | ||
| Throw — straight (ft) | 4 | 5 | 6 | 8 | 8 | 9 | 10 | 11 | ||
| 10×4 | 0.120 | Air Volume — total (CFM) | 36 | 48 | 60 | 72 | 84 | 96 | 108 | 120 |
| Air Volume — lateral (CFM) | 21 | 30 | 38 | 45 | 53 | 60 | 68 | 76 | ||
| Air Volume — straight (CFM) | 7 | 9 | 11 | 13 | 15 | 17 | 20 | 22 | ||
| Throw — lateral (ft) | 4 | 7 | 8 | 9 | 10 | 11 | 13 | 15 | ||
| Throw — straight (ft) | 3 | 4 | 5 | 6 | 7 | 7 | 8 | 9 | ||
| 8×6 / 12×4This model | 0.140 | Air Volume — total (CFM) | 42 | 56 | 70 | 84 | 98 | 112 | 126 | 140 |
| Air Volume — lateral (CFM) | 22 | 29 | 37 | 44 | 51 | 59 | 66 | 73 | ||
| Air Volume — straight (CFM) | 10 | 14 | 17 | 20 | 24 | 27 | 30 | 34 | ||
| Throw — lateral (ft) | 4 | 6 | 7 | 8 | 10 | 11 | 12 | 14 | ||
| Throw — straight (ft) | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | ||
| 14×4 | 0.173 | Air Volume — total (CFM) | 52 | 69 | 87 | 104 | 121 | 138 | 156 | 173 |
| Air Volume — lateral (CFM) | 30 | 40 | 50 | 60 | 69 | 79 | 89 | 99 | ||
| Air Volume — straight (CFM) | 11 | 15 | 19 | 22 | 26 | 30 | 34 | 37 | ||
| Throw — lateral (ft) | 5 | 6 | 8 | 10 | 11 | 13 | 14 | 16 | ||
| Throw — straight (ft) | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 10 | ||
| 10×6 | 0.190 | Air Volume — total (CFM) | 57 | 76 | 95 | 114 | 133 | 152 | 171 | 190 |
| Air Volume — lateral (CFM) | 36 | 49 | 61 | 73 | 85 | 97 | 109 | 122 | ||
| Air Volume — straight (CFM) | 10 | 14 | 17 | 21 | 24 | 27 | 31 | 34 | ||
| Throw — lateral (ft) | 5 | 6 | 8 | 10 | 11 | 13 | 15 | 16 | ||
| Throw — straight (ft) | 3 | 5 | 5 | 6 | 7 | 8 | 9 | 10 | ||
| 8×8 | 0.203 | Air Volume — total (CFM) | 61 | 81 | 102 | 122 | 142 | 162 | 183 | 203 |
| Air Volume — lateral (CFM) | 32 | 42 | 53 | 63 | 74 | 84 | 95 | 105 | ||
| Air Volume — straight (CFM) | 15 | 19 | 24 | 29 | 34 | 39 | 44 | 48 | ||
| Throw — lateral (ft) | 6 | 8 | 10 | 11 | 13 | 14 | 16 | 18 | ||
| Throw — straight (ft) | 4 | 5 | 6 | 7 | 8 | 9 | 9 | 10 | ||
| 12×6 | 0.233 | Air Volume — total (CFM) | 70 | 93 | 117 | 140 | 163 | 186 | 210 | 233 |
| Air Volume — lateral (CFM) | 36 | 48 | 60 | 72 | 84 | 97 | 109 | 121 | ||
| Air Volume — straight (CFM) | 17 | 22 | 28 | 33 | 39 | 45 | 50 | 56 | ||
| Throw — lateral (ft) | 5 | 7 | 8 | 10 | 12 | 14 | 15 | 17 | ||
| Throw — straight (ft) | 4 | 5 | 5 | 7 | 8 | 10 | 11 | 12 | ||
| 10×8 | 0.260 | Air Volume — total (CFM) | 78 | 104 | 130 | 156 | 182 | 208 | 234 | 260 |
| Air Volume — lateral (CFM) | 44 | 58 | 73 | 87 | 102 | 116 | 131 | 146 | ||
| Air Volume — straight (CFM) | 17 | 23 | 29 | 34 | 40 | 46 | 51 | 57 | ||
| Throw — lateral (ft) | 7 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | ||
| Throw — straight (ft) | 4 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
| 14×6 | 0.296 | Air Volume — total (CFM) | 89 | 118 | 148 | 178 | 207 | 237 | 266 | 296 |
| Air Volume — lateral (CFM) | 53 | 71 | 89 | 107 | 127 | 142 | 160 | 178 | ||
| Air Volume — straight (CFM) | 18 | 24 | 30 | 36 | 41 | 47 | 53 | 59 | ||
| Throw — lateral (ft) | 7 | 9 | 11 | 13 | 15 | 17 | 19 | 21 | ||
| Throw — straight (ft) | 4 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||
| 10×10 | 0.310 | Air Volume — total (CFM) | 93 | 124 | 155 | 186 | 217 | 248 | 279 | 310 |
| Air Volume — lateral (CFM) | 60 | 80 | 99 | 119 | 139 | 159 | 179 | 199 | ||
| Air Volume — straight (CFM) | 17 | 22 | 28 | 34 | 39 | 45 | 50 | 56 | ||
| Throw — lateral (ft) | 7 | 9 | 11 | 13 | 16 | 18 | 21 | 23 | ||
| Throw — straight (ft) | 5 | 6 | 7 | 8 | 10 | 11 | 12 | 13 | ||
| 12×8 / 16×6 | 0.320 | Air Volume — total (CFM) | 96 | 128 | 160 | 192 | 224 | 256 | 288 | 320 |
| Air Volume — lateral (CFM) | 50 | 67 | 83 | 100 | 116 | 133 | 150 | 166 | ||
| Air Volume — straight (CFM) | 23 | 31 | 38 | 46 | 54 | 61 | 69 | 77 | ||
| Throw — lateral (ft) | 7 | 10 | 11 | 13 | 15 | 17 | 20 | 22 | ||
| Throw — straight (ft) | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 13 | ||
| 14×8 | 0.396 | Air Volume — total (CFM) | 119 | 158 | 198 | 238 | 277 | 317 | 356 | 396 |
| Air Volume — lateral (CFM) | 71 | 95 | 119 | 142 | 166 | 190 | 213 | 237 | ||
| Air Volume — straight (CFM) | 24 | 32 | 40 | 47 | 55 | 63 | 71 | 79 | ||
| Throw — lateral (ft) | 7 | 9 | 11 | 13 | 14 | 16 | 18 | 19 | ||
| Throw — straight (ft) | 5 | 6 | 7 | 9 | 10 | 11 | 12 | 13 | ||
| 16×8 | 0.440 | Air Volume — total (CFM) | 132 | 176 | 220 | 264 | 308 | 352 | 396 | 440 |
| Air Volume — lateral (CFM) | 80 | 106 | 132 | 158 | 184 | 212 | 238 | 264 | ||
| Air Volume — straight (CFM) | 26 | 35 | 44 | 53 | 62 | 70 | 79 | 88 | ||
| Throw — lateral (ft) | 7 | 10 | 12 | 14 | 17 | 19 | 22 | 25 | ||
| Throw — straight (ft) | 5 | 6 | 8 | 9 | 10 | 11 | 12 | 14 | ||
| 14×10 | 0.460 | Air Volume — total (CFM) | 138 | 184 | 230 | 276 | 322 | 368 | 414 | 460 |
| Air Volume — lateral (CFM) | 82 | 110 | 138 | 166 | 194 | 220 | 248 | 276 | ||
| Air Volume — straight (CFM) | 28 | 37 | 46 | 55 | 64 | 74 | 83 | 92 | ||
| Throw — lateral (ft) | 7 | 10 | 13 | 14 | 18 | 19 | 22 | 25 | ||
| Throw — straight (ft) | 6 | 7 | 9 | 10 | 11 | 12 | 13 | 15 | ||
| 12×12 | 0.470 | Air Volume — total (CFM) | 141 | 188 | 235 | 282 | 329 | 376 | 423 | 470 |
| Air Volume — lateral (CFM) | 73 | 98 | 123 | 146 | 171 | 196 | 221 | 244 | ||
| Air Volume — straight (CFM) | 34 | 45 | 56 | 68 | 79 | 90 | 102 | 113 | ||
| Throw — lateral (ft) | 8 | 10 | 13 | 15 | 17 | 20 | 22 | 25 | ||
| Throw — straight (ft) | 5 | 7 | 8 | 10 | 11 | 13 | 15 | 16 | ||
| 14×14 | 0.663 | Air Volume — total (CFM) | 199 | 265 | 332 | 398 | 464 | 530 | 597 | 663 |
| Air Volume — lateral (CFM) | 119 | 159 | 200 | 238 | 278 | 318 | 359 | 397 | ||
| Air Volume — straight (CFM) | 40 | 53 | 66 | 80 | 93 | 106 | 119 | 133 | ||
| Throw — lateral (ft) | 10 | 12 | 16 | 18 | 21 | 24 | 27 | 29 | ||
| Throw — straight (ft) | 6 | 8 | 9 | 11 | 13 | 14 | 16 | 18 | ||
| 16×16 | 0.952 | Air Volume — total (CFM) | 286 | 381 | 476 | 571 | 666 | 762 | 857 | 952 |
| Air Volume — lateral (CFM) | 149 | 198 | 248 | 297 | 347 | 396 | 446 | 495 | ||
| Air Volume — straight (CFM) | 68 | 91 | 114 | 137 | 160 | 183 | 205 | 229 | ||
| Throw — lateral (ft) | 10 | 13 | 16 | 20 | 23 | 26 | 28 | 30 | ||
| Throw — straight (ft) | 6 | 9 | 11 | 13 | 15 | 17 | 18 | 20 | ||
