Item # 310107-1
| Bulk Pricing | ||||
|---|---|---|---|---|
| 2-10 | 11-20 | 21-49 | 50+ | 100+ |
| $16.47 | $15.92 | $15.37 | $14.64 | |

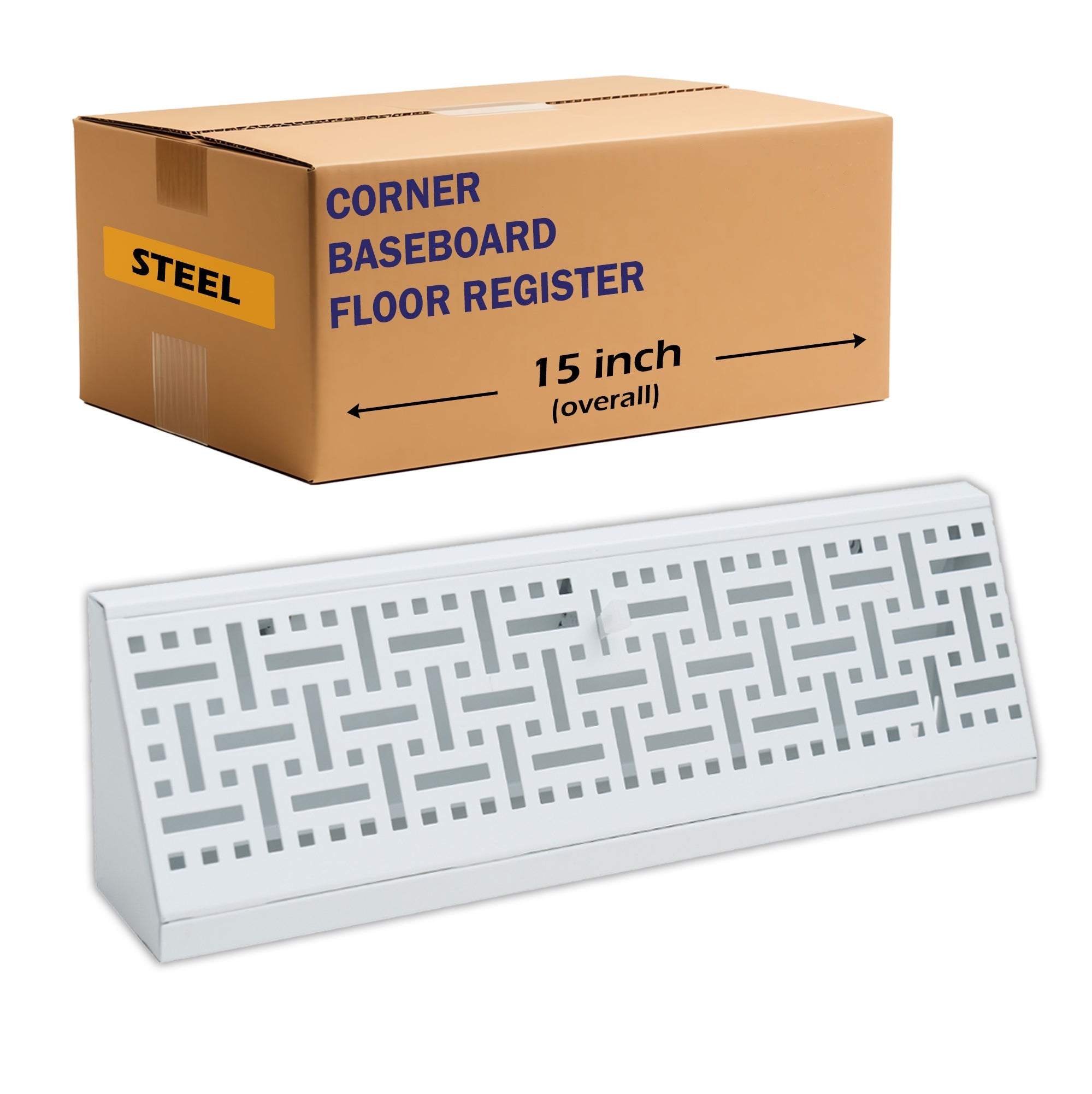

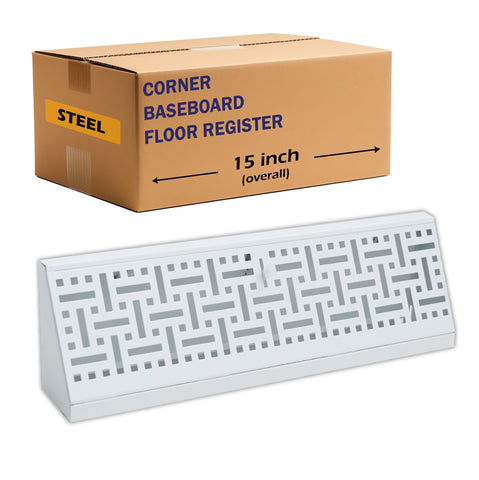

The 15" white steel corner baseboard supply register carries supply air into the room through a baseboard opening. Powder-coated steel resists dents and rust for years of use, a stronger choice than lightweight plastic covers. Select this corner baseboard supply register by its baseboard space size, not the overall face size, so it seats correctly on the first fit. The basket weave pattern adds a decorative face that upgrades a plain vent opening.
| Product type | Corner Baseboard Supply Register |
| Airflow function | Supply air |
| Nominal opening | 15" |
| Overall face dimensions | 15"W x 4-1/2"H x 2-3/4"D |
| Material | Steel |
| Finish | White |
| Mounting location | Baseboard |
| Airflow control | Fixed |
| Order by | Space Between Baseboard |
| Pack quantity | 1 |
| MPN | 310107-1 |
| Brand | AirGrilles.com |
Choose this corner baseboard supply register if you need a supply-air vent for a baseboard opening. This corner baseboard supply register carries supply air and mounts on baseboard surfaces. It is not designed for floor installation or foot traffic, exterior or outdoor use, dryer exhaust venting or use as a filter-holding return grille. Confirm the airflow function against your HVAC layout before ordering.

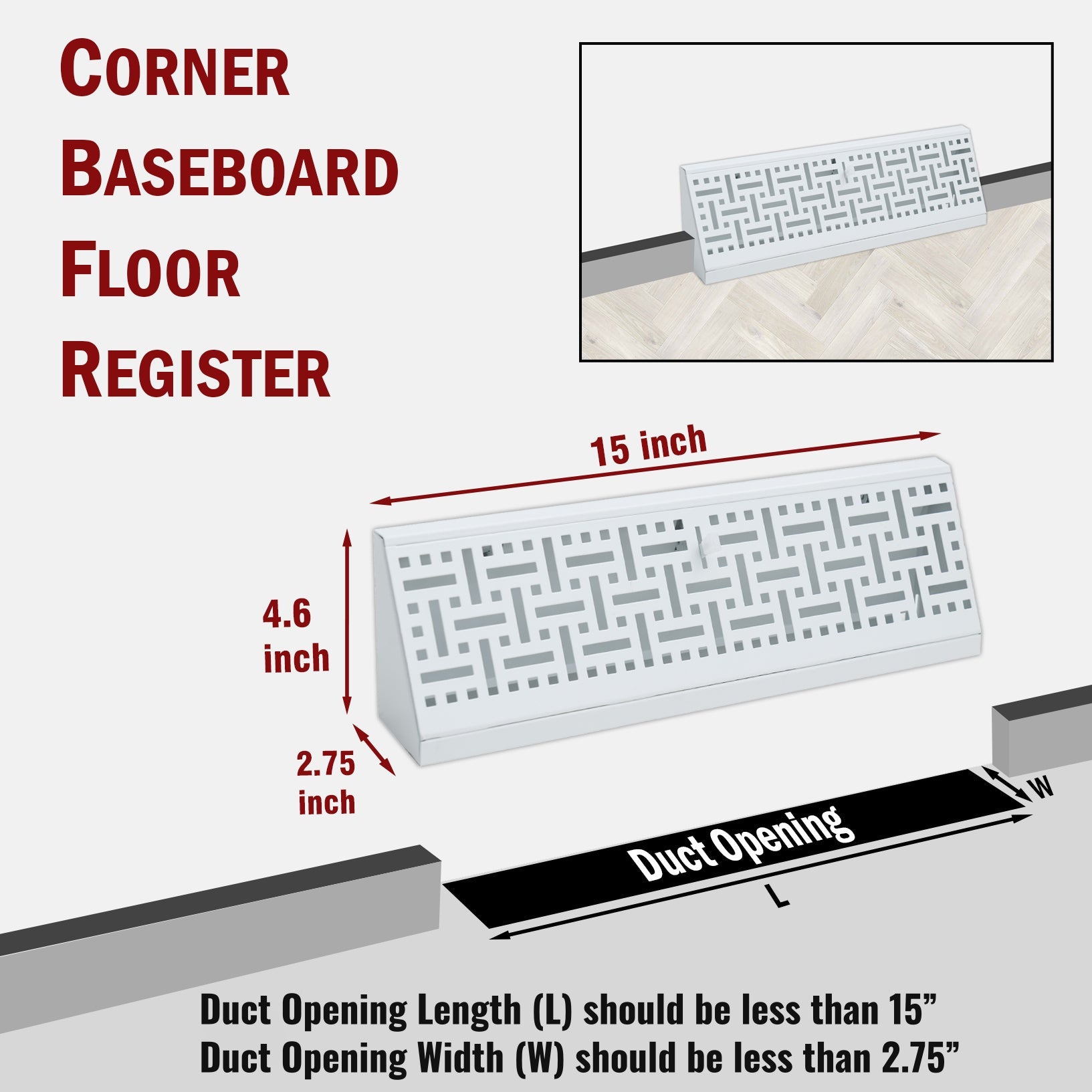

Measure the open space between the baseboard and the floor where air passes, then match it to the 15" size above. Do not measure the outer flange. The overall face measures 15"W x 4-1/2"H x 2-3/4"D.
Position the corner baseboard supply register over the baseboard space with the louvers facing the room. Confirm the frame sits flush against the baseboard surface before marking the screw points. Secure it with the included screws without overtightening, since excess force can distort the frame.
Ductwork, wall anchors, and installation tools are not included.
Clean the corner baseboard supply register with a soft, damp cloth and mild soap. Avoid abrasive chemicals that can damage the white finish. Dry the surface to keep moisture off the metal.
Use this comparison to confirm the corner baseboard supply register matches your opening and airflow need.
| Option | Best for | Material | Installation |
|---|---|---|---|
| This corner baseboard supply register | Baseboard supply openings | Steel | Baseboard |
| Return air grille | Return-air openings | Steel | Wall or ceiling |
| Wall/ceiling supply register | Wall or ceiling supply openings | Steel | Wall or ceiling |
| Duct Size (in) | Ak (sq ft) | Metric | Face Velocity (FPM) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 300.0 | 400.0 | 500.0 | 600.0 | 700.0 | 800.0 | 900.0 | 1000.0 | |||
| 15-inchThis model | 0.161 | Air Volume (CFM) | 48 | 64 | 80 | 96 | 112 | 128 | 144 | 161 |
| Static Pressure (in. w.g.) | 0.004 | 0.008 | 0.016 | 0.02 | 0.028 | 0.032 | 0.044 | 0.052 | ||
| Throw — @ 50 FPM (ft) | 6 | 7.5 | 10 | 11 | 13 | 15.5 | 17 | 19.5 | ||
| Spread — @ 50 FPM (ft) | 6 | 7 | 10.5 | 12.5 | 14.5 | 16 | 18 | 20 | ||
| Throw — @ 100 FPM (ft) | 3 | 4 | 5 | 6 | 6.5 | 8 | 8.5 | 10 | ||
| Spread — @ 100 FPM (ft) | 3 | 3.5 | 5 | 6 | 7 | 8 | 9 | 10 | ||
| Throw — @ 150 FPM (ft) | 2 | 2.5 | 3 | 4 | 4.5 | 5 | 6 | 6.5 | ||
| Spread — @ 150 FPM (ft) | 2 | 2.5 | 3.5 | 4 | 5 | 5.5 | 6 | 6.5 | ||
| 18-inch | 0.263 | Air Volume (CFM) | 79 | 105 | 131 | 157 | 183 | 210 | 237 | 263 |
| Static Pressure (in. w.g.) | 0.012 | 0.024 | 0.032 | 0.048 | 0.068 | 0.088 | 0.108 | 0.132 | ||
| Throw (ft) | 6 | 7 | 8 | 10 | 11 | 12 | 15 | 16.5 | ||
| Spread (ft) | 5 | 7 | 7.5 | 9 | 10.5 | 12 | 14 | 16 | ||
| 24-inch | 0.462 | Air Volume (CFM) | 139 | 185 | 231 | 277 | 323 | 370 | 416 | 462 |
| Static Pressure (in. w.g.) | 0.028 | 0.04 | 0.056 | 0.076 | 0.096 | 0.128 | 0.152 | 0.192 | ||
| Throw (ft) | 5.5 | 6 | 6.5 | 8 | 9.5 | 11 | 12 | 13.5 | ||
| Spread (ft) | 5 | 5.5 | 6.5 | 8 | 9 | 10.5 | 11.5 | 13 | ||
