Item # 310107-8
18" Brown Steel Basket Weave Corner Baseboard Register, Decorative Adjustable Vent Cover
- Regular price
- $32.53
- Regular price
-
- Sale price
- $32.53
- Unit price
- per
Space Between Baseboard18"
Outer Dimensions
18"W x 4-1/2"H x 2-3/4"D
overall faceplate size
| Bulk Pricing | ||||
|---|---|---|---|---|
| 2-10 | 11-20 | 21-49 | 50+ | 100+ |
| $27.66 | $26.03 | $24.40 | $22.78 | |
62 in stock - ready to ship
Available Sizes & Options
Size
Neck
Model
Color
Airflow
See all Steel Corner Baseboard Supply Registers →
Description
xProduct Overview
The 18" brown steel corner baseboard supply register carries supply air into the room through a baseboard opening. Powder-coated steel resists dents and rust for years of use, a stronger choice than lightweight plastic covers. Select this corner baseboard supply register by its baseboard space size, not the overall face size, so it seats correctly on the first fit. The basket weave pattern adds a decorative face that upgrades a plain vent opening.
Key Features
- Steel construction: Steel keeps the corner baseboard supply register rigid during installation and resists warping over time.
- Brown finish: The brown finish coordinates with common flooring, trim, and hardware.
- Right-fit sizing: Ordered by baseboard space size, this corner baseboard supply register matches standard duct dimensions and cuts wrong-size returns.
Dimensions and Specifications
| Product type | Corner Baseboard Supply Register |
| Airflow function | Supply air |
| Nominal opening | 18" |
| Overall face dimensions | 18"W x 4-1/2"H x 2-3/4"D |
| Material | Steel |
| Finish | Brown |
| Mounting location | Baseboard |
| Airflow control | Fixed |
| Order by | Space Between Baseboard |
| Pack quantity | 1 |
| MPN | 310107-8 |
| Brand | AirGrilles.com |
Is This the Right Vent for Your Opening?
Choose this corner baseboard supply register if you need a supply-air vent for a baseboard opening. This corner baseboard supply register carries supply air and mounts on baseboard surfaces. It is not designed for floor installation or foot traffic, exterior or outdoor use, dryer exhaust venting or use as a filter-holding return grille. Confirm the airflow function against your HVAC layout before ordering.
How to Measure for This Vent

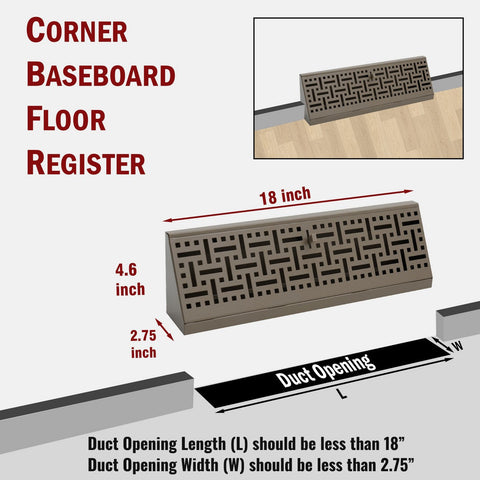

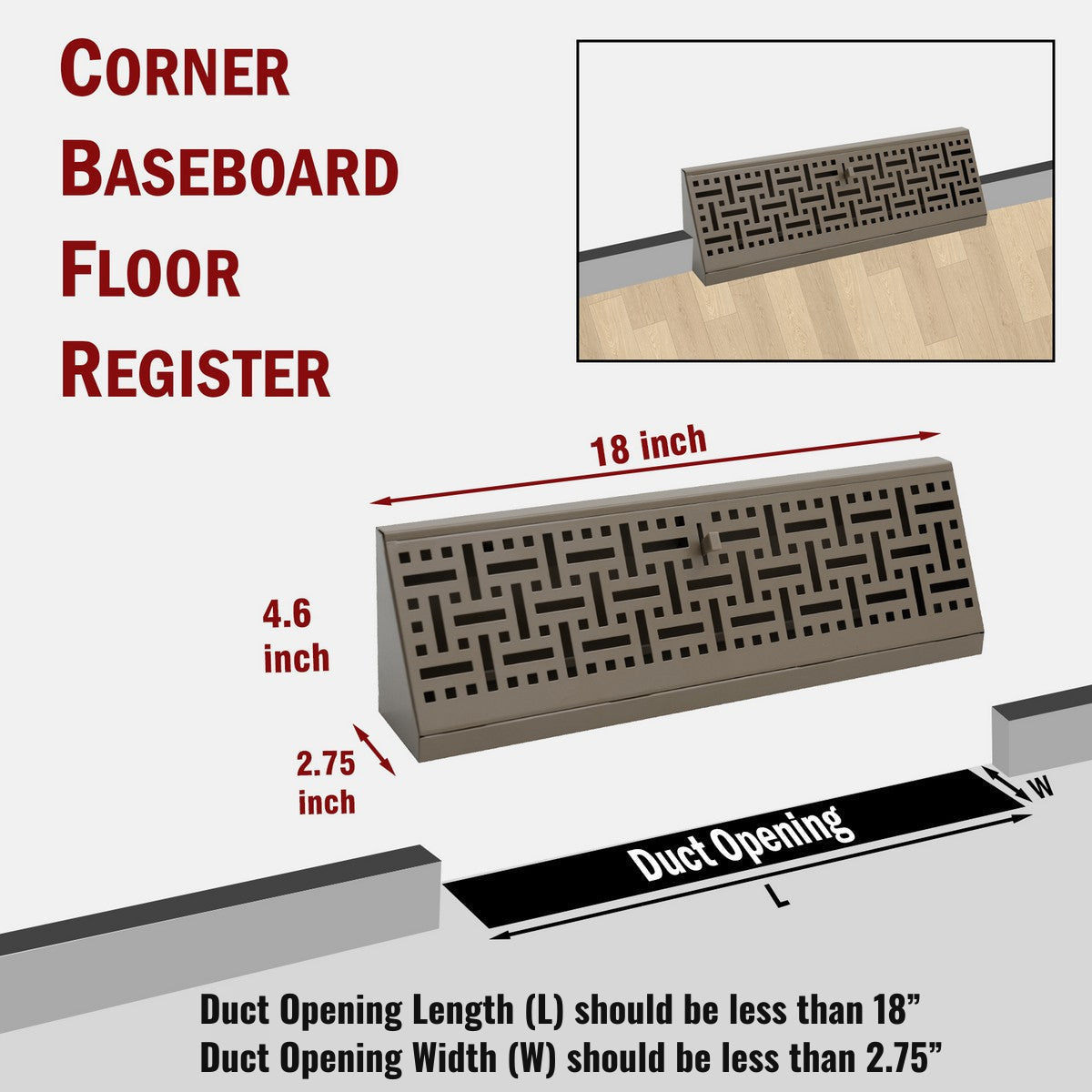

Measure the open space between the baseboard and the floor where air passes, then match it to the 18" size above. Do not measure the outer flange. The overall face measures 18"W x 4-1/2"H x 2-3/4"D.
Installation
Position the corner baseboard supply register over the baseboard space with the louvers facing the room. Confirm the frame sits flush against the baseboard surface before marking the screw points. Secure it with the included screws without overtightening, since excess force can distort the frame.

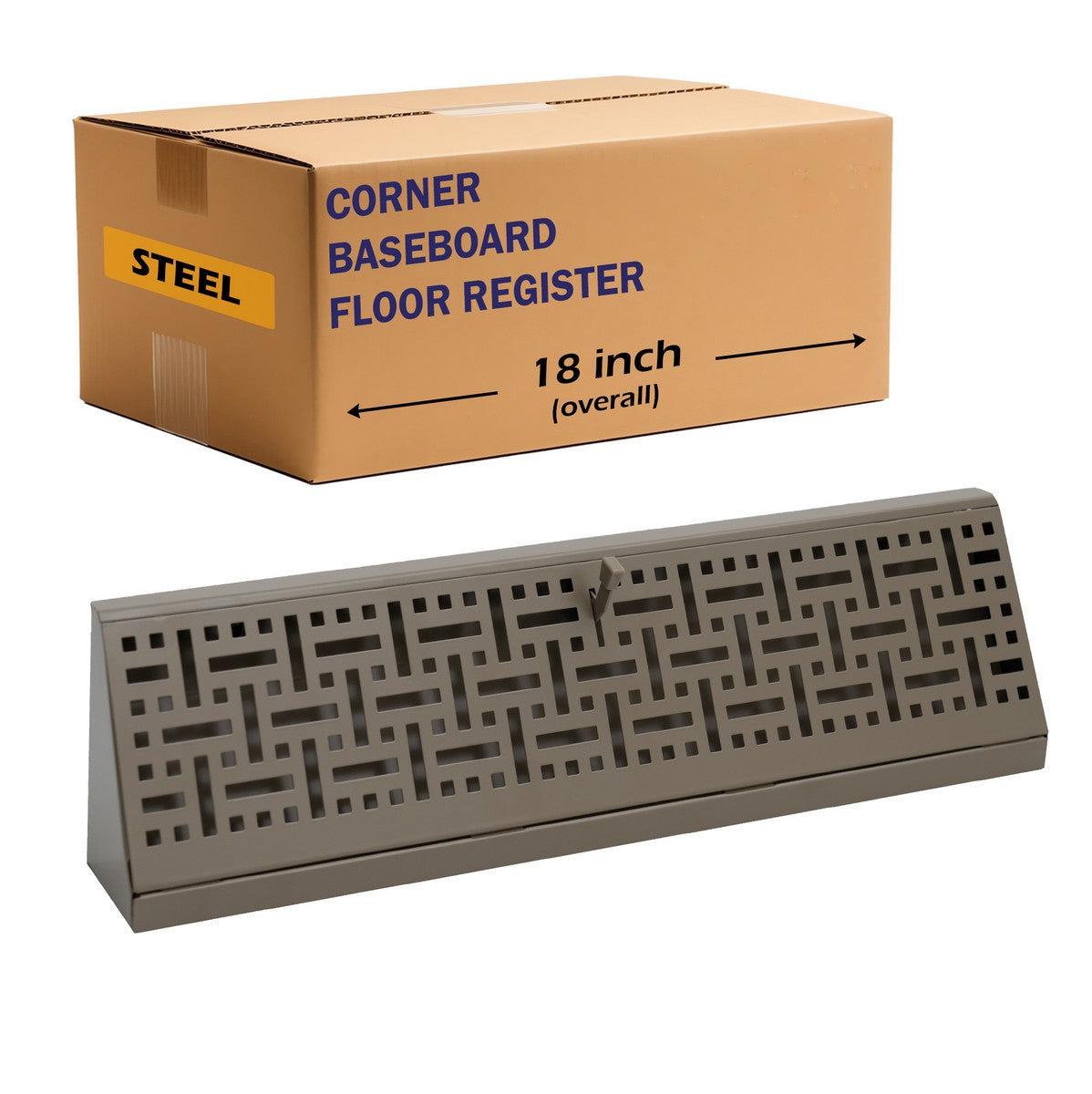

What's Included
- 1 x corner baseboard supply register
- Mounting screws
Ductwork, wall anchors, and installation tools are not included.
Care and Maintenance
Clean the corner baseboard supply register with a soft, damp cloth and mild soap. Avoid abrasive chemicals that can damage the brown finish. Dry the surface to keep moisture off the metal.
Compare Similar Options
Use this comparison to confirm the corner baseboard supply register matches your opening and airflow need.
| Option | Best for | Material | Installation |
|---|---|---|---|
| This corner baseboard supply register | Baseboard supply openings | Steel | Baseboard |
| Return air grille | Return-air openings | Steel | Wall or ceiling |
| Wall/ceiling supply register | Wall or ceiling supply openings | Steel | Wall or ceiling |
Shipping & Return
xShipping
- Free shipping over $250 (contiguous US). Otherwise calculated at checkout.
- Order by 11:00 AM ET on a business day and it ships the same day — otherwise the next business day.
- Delivery in about 4–5 days after dispatch (FedEx / UPS), with tracking emailed when your order ships.
- US only. We cannot ship to P.O. boxes or APO/FPO addresses.
Returns
- 30-day returns. Item must be unused and in its original packaging; opened packages incur a 20% restocking fee.
- Start a return from your account or at help@airgrilles.com (authorization required). We email a prepaid return label and deduct return shipping from your refund (free if the return is our error); refunds are issued within 5 business days of approval.
- Damaged, defective, wrong, or lost item? Tell us within 7 days with photos and your order number.
Full details: Shipping Policy · Refund & Return Policy
Technical Data
xAirflow Performance Data
| Duct Size (in) | Ak (sq ft) | Metric | Face Velocity (FPM) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 300.0 | 400.0 | 500.0 | 600.0 | 700.0 | 800.0 | 900.0 | 1000.0 | |||
| 15-inch | 0.161 | Air Volume (CFM) | 48 | 64 | 80 | 96 | 112 | 128 | 144 | 161 |
| Static Pressure (in. w.g.) | 0.004 | 0.008 | 0.016 | 0.02 | 0.028 | 0.032 | 0.044 | 0.052 | ||
| Throw — @ 50 FPM (ft) | 6 | 7.5 | 10 | 11 | 13 | 15.5 | 17 | 19.5 | ||
| Spread — @ 50 FPM (ft) | 6 | 7 | 10.5 | 12.5 | 14.5 | 16 | 18 | 20 | ||
| Throw — @ 100 FPM (ft) | 3 | 4 | 5 | 6 | 6.5 | 8 | 8.5 | 10 | ||
| Spread — @ 100 FPM (ft) | 3 | 3.5 | 5 | 6 | 7 | 8 | 9 | 10 | ||
| Throw — @ 150 FPM (ft) | 2 | 2.5 | 3 | 4 | 4.5 | 5 | 6 | 6.5 | ||
| Spread — @ 150 FPM (ft) | 2 | 2.5 | 3.5 | 4 | 5 | 5.5 | 6 | 6.5 | ||
| 18-inchThis model | 0.263 | Air Volume (CFM) | 79 | 105 | 131 | 157 | 183 | 210 | 237 | 263 |
| Static Pressure (in. w.g.) | 0.012 | 0.024 | 0.032 | 0.048 | 0.068 | 0.088 | 0.108 | 0.132 | ||
| Throw (ft) | 6 | 7 | 8 | 10 | 11 | 12 | 15 | 16.5 | ||
| Spread (ft) | 5 | 7 | 7.5 | 9 | 10.5 | 12 | 14 | 16 | ||
| 24-inch | 0.462 | Air Volume (CFM) | 139 | 185 | 231 | 277 | 323 | 370 | 416 | 462 |
| Static Pressure (in. w.g.) | 0.028 | 0.04 | 0.056 | 0.076 | 0.096 | 0.128 | 0.152 | 0.192 | ||
| Throw (ft) | 5.5 | 6 | 6.5 | 8 | 9.5 | 11 | 12 | 13.5 | ||
| Spread (ft) | 5 | 5.5 | 6.5 | 8 | 9 | 10.5 | 11.5 | 13 | ||
