Item # 110103-25
24"x24" White Aluminum Eggcrate Return Air Grille, Low-Noise High-Airflow Rust-Proof Vent Cover
- Regular price
- $98.99
- Regular price
-
$0.00 - Sale price
- $98.99
- Unit price
- per
Order By Duct Opening Measurements24"W x 24"H
Outer Dimensions
25-3/4"W X 25-3/4"H
overall faceplate size
| Bulk Pricing | ||||
|---|---|---|---|---|
| 2-10 | 11-20 | 21-49 | 50+ | 100+ |
| $89.10 | $86.13 | $83.16 | $79.20 | |
Only 5 left in stock
Description
xProduct Overview
The 24"W x 24"H white aluminum eggcrate return grille carries return air back to the HVAC system through a ceiling and sidewall opening. Extruded aluminum resists rust in humid rooms, a stronger choice than lightweight plastic covers. Select this eggcrate return grille by its duct opening size, not the overall face size, so it seats correctly on the first fit.
Key Features
- Aluminum construction: Aluminum keeps the eggcrate return grille rigid during installation and resists warping over time.
- White finish: The white finish coordinates with common flooring, trim, and hardware.
- Right-fit sizing: Ordered by duct opening size, this eggcrate return grille matches standard duct dimensions and cuts wrong-size returns.
Dimensions and Specifications
| Product type | Eggcrate Return Grille |
| Airflow function | Return air |
| Nominal opening | 24"W x 24"H |
| Overall face dimensions | 25-3/4"W X 25-3/4"H |
| Material | Aluminum |
| Finish | White |
| Mounting location | Ceiling and Sidewall |
| Airflow control | Fixed |
| Order by | Duct Opening |
| Pack quantity | 1 |
| MPN | 110103-25 |
| Brand | AirGrilles.com |
Is This the Right Vent for Your Opening?
Choose this eggcrate return grille if you need a return-air vent for a ceiling or sidewall opening. This eggcrate return grille carries return air and mounts on ceiling and sidewall surfaces. It is not designed for floor installation or foot traffic, exterior or outdoor use or dryer exhaust venting. Confirm the airflow function against your HVAC layout before ordering.

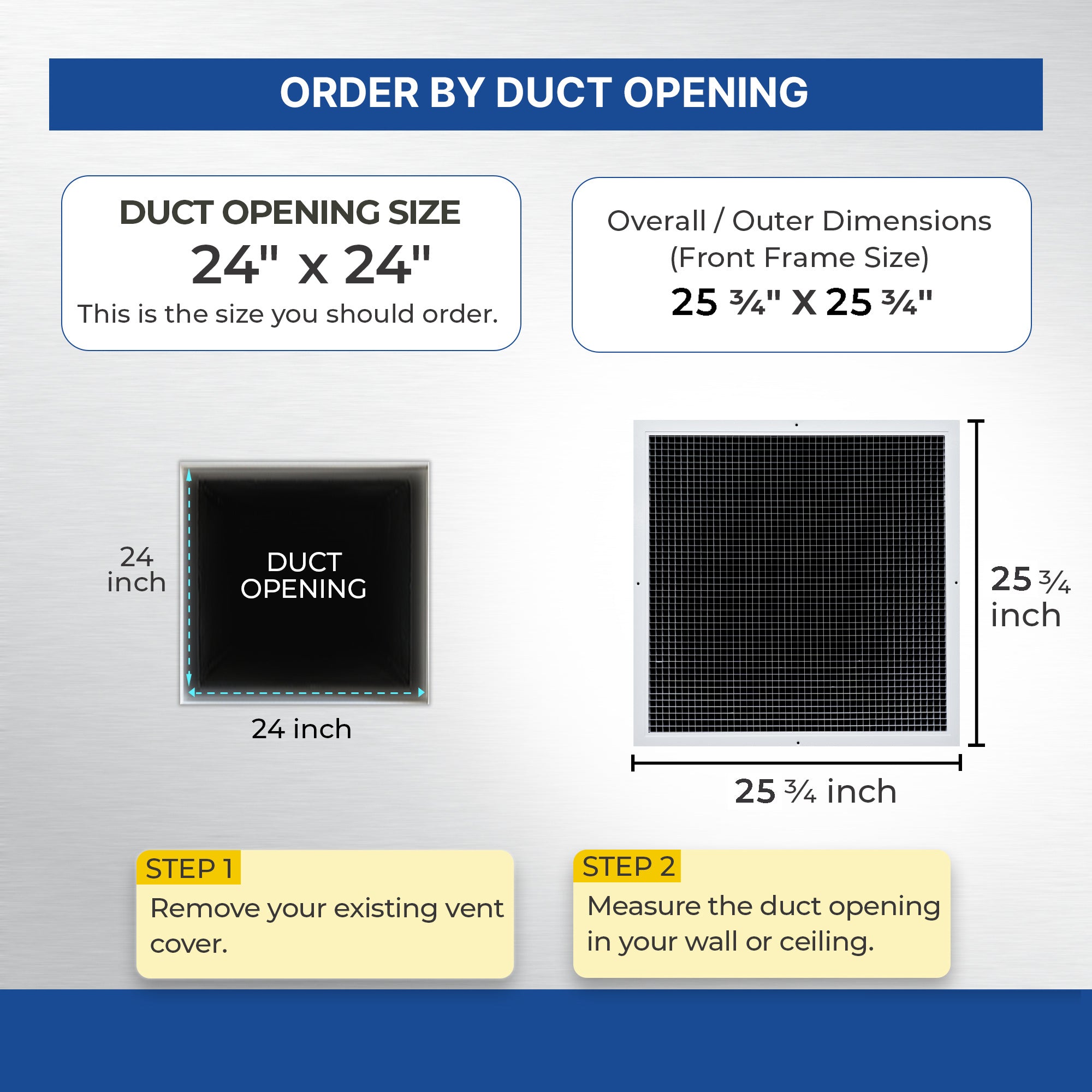

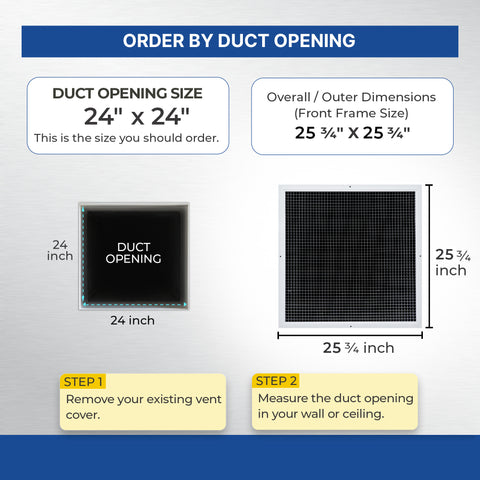

How to Measure for This Vent
Remove the existing vent and measure the width and height of the duct opening, not the outer face of the old cover. Match those two numbers to the nominal size above. The overall face measures 25-3/4"W X 25-3/4"H.
Installation
Position the eggcrate return grille over the duct opening with the eggcrate face facing the room. Confirm the frame sits flush against the ceiling surface before marking the screw points. Secure it with the included screws without overtightening, since excess force can distort the frame.

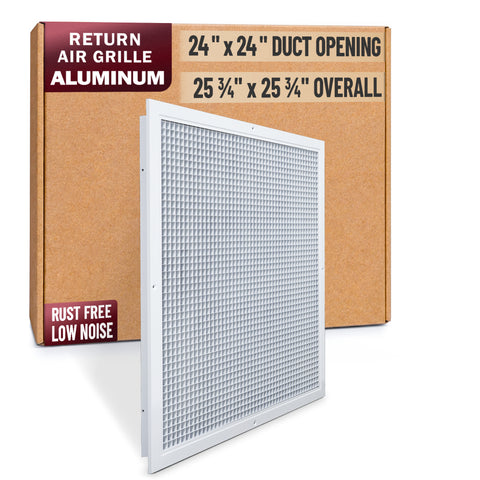

What's Included
- 1 x eggcrate return grille
- Mounting screws
Ductwork, wall anchors, and installation tools are not included.
Care and Maintenance
Clean the eggcrate return grille with a soft, damp cloth and mild soap. Avoid abrasive chemicals that can damage the white finish. Dry the surface to keep moisture off the metal.
Compare Similar Options
Use this comparison to confirm the eggcrate return grille matches your opening and airflow need.
| Option | Best for | Material | Installation |
|---|---|---|---|
| This eggcrate return grille | Return-air openings | Aluminum | Wall or ceiling |
| Return air filter grille | Returns that hold a 1-inch filter | Steel | Wall or ceiling |
| Flat return air grille | Standard wall or ceiling returns | Steel | Wall or ceiling |
Shipping & Return
xShipping
- Free shipping over $250 (contiguous US). Otherwise calculated at checkout.
- Order by 11:00 AM ET on a business day and it ships the same day — otherwise the next business day.
- Delivery in about 4–5 days after dispatch (FedEx / UPS), with tracking emailed when your order ships.
- US only. We cannot ship to P.O. boxes or APO/FPO addresses.
Returns
- 30-day returns. Item must be unused and in its original packaging; opened packages incur a 20% restocking fee.
- Start a return from your account or at help@airgrilles.com (authorization required). We email a prepaid return label and deduct return shipping from your refund (free if the return is our error); refunds are issued within 5 business days of approval.
- Damaged, defective, wrong, or lost item? Tell us within 7 days with photos and your order number.
Full details: Shipping Policy · Refund & Return Policy
Technical Data
xAirflow Performance Data
| Duct Size (in) | Ak (sq ft) | Metric | Face Velocity (FPM) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 400.0 | 500.0 | 600.0 | 700.0 | 800.0 | 900.0 | 1000.0 | |||
| Pressure Loss (in. w.g.) | all sizes | 0.012 | 0.016 | 0.028 | 0.032 | 0.044 | 0.052 | 0.064 | |
| 6×6 | ~0.12 | Air Volume (CFM) | 48 | 60 | 72 | 84 | 96 | 108 | 120 |
| Throw (ft) | 4 | 5 | 5.5 | 6.5 | 7.5 | 8.5 | 9 | ||
| 10×6 | ~0.22 | Air Volume (CFM) | 88 | 110 | 132 | 154 | 176 | 198 | 220 |
| Throw (ft) | 5.5 | 6.5 | 7.5 | 8.5 | 10.5 | 11.5 | 12.5 | ||
| 8×8 | 0.246 | Air Volume (CFM) | 98 | 123 | 148 | 172 | 197 | 221 | 246 |
| Throw (ft) | 6 | 7 | 8 | 9 | 11 | 12 | 13 | ||
| 12×6 | ~0.28 | Air Volume (CFM) | 112 | 140 | 168 | 196 | 224 | 252 | 280 |
| Throw (ft) | 7 | 8 | 9.5 | 10.5 | 13 | 14 | 15 | ||
| 10×8 | ~0.32 | Air Volume (CFM) | 128 | 160 | 192 | 224 | 256 | 288 | 320 |
| Throw (ft) | 8 | 9.5 | 11 | 12.5 | 14.5 | 16 | 17.5 | ||
| 14×6 | ~0.33 | Air Volume (CFM) | 132 | 165 | 198 | 231 | 264 | 297 | 330 |
| Throw (ft) | 8 | 9.5 | 11 | 12.5 | 15 | 16.5 | 18 | ||
| 12×8 | ~0.39 | Air Volume (CFM) | 156 | 195 | 234 | 273 | 312 | 351 | 390 |
| Throw (ft) | 9.5 | 11.5 | 13 | 15 | 18 | 19.5 | 21.5 | ||
| 10×10 | ~0.41 | Air Volume (CFM) | 164 | 205 | 246 | 287 | 328 | 369 | 410 |
| Throw (ft) | 10 | 12 | 14 | 16 | 18.5 | 20.5 | 22.5 | ||
| 14×8 | ~0.46 | Air Volume (CFM) | 184 | 230 | 276 | 322 | 368 | 414 | 460 |
| Throw (ft) | 11 | 13 | 15.5 | 17.5 | 21 | 23 | 25 | ||
| 16×8 | ~0.54 | Air Volume (CFM) | 216 | 270 | 324 | 378 | 432 | 486 | 540 |
| Throw (ft) | 12.5 | 15 | 17.5 | 20 | 24 | 26.5 | 29 | ||
| 24×6 | ~0.58 | Air Volume (CFM) | 232 | 290 | 348 | 406 | 464 | 522 | 580 |
| Throw (ft) | 13 | 16 | 18.5 | 21.5 | 25 | 28 | 31 | ||
| 14×10 | ~0.60 | Air Volume (CFM) | 240 | 300 | 360 | 420 | 480 | 540 | 600 |
| Throw (ft) | 13.5 | 16.5 | 19 | 22 | 26 | 29 | 31.5 | ||
| 12×12 | 0.632 | Air Volume (CFM) | 253 | 316 | 379 | 442 | 506 | 569 | 632 |
| Throw (ft) | 14 | 17 | 20 | 23 | 27 | 30 | 33 | ||
| 20×8 | ~0.68 | Air Volume (CFM) | 272 | 340 | 408 | 476 | 544 | 612 | 680 |
| Throw (ft) | 14.5 | 17.5 | 20.5 | 24 | 28 | 31 | 34 | ||
| 16×10 | ~0.69 | Air Volume (CFM) | 276 | 345 | 414 | 483 | 552 | 621 | 690 |
| Throw (ft) | 14.5 | 17.5 | 21 | 24 | 28 | 31 | 34.5 | ||
| 30×6 | ~0.74 | Air Volume (CFM) | 296 | 370 | 444 | 518 | 592 | 666 | 740 |
| Throw (ft) | 15 | 18.5 | 21.5 | 25 | 29 | 32 | 35.5 | ||
| 24×8 | ~0.82 | Air Volume (CFM) | 328 | 410 | 492 | 574 | 656 | 738 | 820 |
| Throw (ft) | 15.5 | 19 | 22.5 | 26 | 30 | 33.5 | 37 | ||
| 16×12 | ~0.85 | Air Volume (CFM) | 340 | 425 | 510 | 595 | 680 | 765 | 850 |
| Throw (ft) | 15.5 | 19.5 | 23 | 26.5 | 30.5 | 34.5 | 37.5 | ||
| 14×14 | ~0.87 | Air Volume (CFM) | 348 | 435 | 522 | 609 | 696 | 783 | 870 |
| Throw (ft) | 16 | 20 | 23.5 | 26.5 | 30.5 | 34.5 | 38 | ||
| 20×10 | ~0.88 | Air Volume (CFM) | 352 | 440 | 528 | 616 | 704 | 792 | 880 |
| Throw (ft) | 16 | 20 | 23.5 | 27 | 31 | 35 | 38.5 | ||
| 30×8 | ~1.04 | Air Volume (CFM) | 416 | 520 | 624 | 728 | 832 | 936 | 1040 |
| Throw (ft) | 17 | 21.5 | 25.5 | 29 | 33 | 37.5 | 41.5 | ||
| 24×10 | ~1.07 | Air Volume (CFM) | 428 | 535 | 642 | 749 | 856 | 963 | 1070 |
| Throw (ft) | 17 | 22 | 25.5 | 29.5 | 33.5 | 38 | 42 | ||
| 20×12 | ~1.08 | Air Volume (CFM) | 432 | 540 | 648 | 756 | 864 | 972 | 1080 |
| Throw (ft) | 17.5 | 22 | 26 | 29.5 | 33.5 | 38.5 | 42 | ||
| 32×8 | ~1.11 | Air Volume (CFM) | 444 | 555 | 666 | 777 | 888 | 999 | 1110 |
| Throw (ft) | 17.5 | 22 | 26 | 30 | 34 | 38.5 | 42.5 | ||
| 16×16 | 1.19 | Air Volume (CFM) | 476 | 595 | 714 | 833 | 952 | 1072 | 1190 |
| Throw (ft) | 18 | 23 | 27 | 31 | 35 | 40 | 44 | ||
| 20×14 | ~1.28 | Air Volume (CFM) | 512 | 640 | 768 | 896 | 1024 | 1152 | 1280 |
| Throw (ft) | 19 | 23.5 | 28 | 32.5 | 36.5 | 41.5 | 45.5 | ||
| 24×12 | ~1.31 | Air Volume (CFM) | 524 | 655 | 786 | 917 | 1048 | 1179 | 1310 |
| Throw (ft) | 19.5 | 24 | 28.5 | 32.5 | 37 | 41.5 | 46 | ||
| 30×10 | ~1.35 | Air Volume (CFM) | 540 | 675 | 810 | 945 | 1080 | 1215 | 1350 |
| Throw (ft) | 19.5 | 24 | 28.5 | 33.5 | 38 | 42.5 | 47 | ||
| 32×10 | ~1.44 | Air Volume (CFM) | 576 | 720 | 864 | 1008 | 1152 | 1296 | 1440 |
| Throw (ft) | 20.5 | 24.5 | 29.5 | 34.5 | 39.5 | 43.5 | 48.5 | ||
| 20×16 | 1.48 | Air Volume (CFM) | 592 | 740 | 888 | 1036 | 1184 | 1332 | 1480 |
| Throw (ft) | 21 | 25 | 30 | 35 | 40 | 44 | 49 | ||
| 18×18 | 1.5 | Air Volume (CFM) | 600 | 750 | 900 | 1050 | 1200 | 1350 | 1500 |
| Throw (ft) | 21 | 26 | 30 | 35 | 40 | 45 | 49 | ||
| 24×14 | ~1.55 | Air Volume (CFM) | 620 | 775 | 930 | 1085 | 1240 | 1395 | 1550 |
| Throw (ft) | 21.5 | 26.5 | 30.5 | 35.5 | 40.5 | 46 | 50 | ||
| 30×12 | ~1.65 | Air Volume (CFM) | 660 | 825 | 990 | 1155 | 1320 | 1485 | 1650 |
| Throw (ft) | 22 | 27 | 31.5 | 36.5 | 41.5 | 47.5 | 52 | ||
| 24×16 | 1.77 | Air Volume (CFM) | 708 | 885 | 1062 | 1239 | 1416 | 1593 | 1770 |
| Throw (ft) | 23 | 28 | 33 | 38 | 43 | 49 | 54 | ||
| 20×20 | 1.87 | Air Volume (CFM) | 748 | 935 | 1122 | 1309 | 1496 | 1683 | 1870 |
| Throw (ft) | 24 | 29 | 35 | 40 | 46 | 51 | 56 | ||
| 30×14 | ~1.96 | Air Volume (CFM) | 784 | 980 | 1176 | 1372 | 1568 | 1764 | 1960 |
| Throw (ft) | 24 | 29.5 | 35.5 | 40.5 | 46.5 | 52 | 57 | ||
| 28×16 | 2.07 | Air Volume (CFM) | 828 | 1035 | 1242 | 1449 | 1656 | 1863 | 2070 |
| Throw (ft) | 24 | 30 | 36 | 41 | 47 | 53 | 58 | ||
| 30×16 | 2.21 | Air Volume (CFM) | 884 | 1105 | 1326 | 1547 | 1768 | 1989 | 2210 |
| Throw (ft) | 25 | 31 | 37 | 43 | 49 | 54 | 60 | ||
| 22×22 | 2.27 | Air Volume (CFM) | 908 | 1135 | 1362 | 1589 | 1816 | 2043 | 2270 |
| Throw (ft) | 25 | 31 | 37 | 43 | 49 | 54 | 61 | ||
| 24×20 | ~2.28 | Air Volume (CFM) | 912 | 1140 | 1368 | 1596 | 1824 | 2052 | 2280 |
| Throw (ft) | 25 | 31 | 37 | 43 | 49 | 54.5 | 61 | ||
| 28×18 | 2.32 | Air Volume (CFM) | 928 | 1160 | 1392 | 1624 | 1856 | 2088 | 2320 |
| Throw (ft) | 26 | 32 | 38 | 44 | 50 | 56 | 62 | ||
| 25×20 | ~2.38 | Air Volume (CFM) | 952 | 1190 | 1428 | 1666 | 1904 | 2142 | 2380 |
| Throw (ft) | 26.5 | 32.5 | 38.5 | 44.5 | 50.5 | 56.5 | 62.5 | ||
| 32×16 | ~2.42 | Air Volume (CFM) | 968 | 1210 | 1452 | 1694 | 1936 | 2178 | 2420 |
| Throw (ft) | 26.5 | 32.5 | 38.5 | 44.5 | 51 | 57 | 63 | ||
| 30×18 | 2.55 | Air Volume (CFM) | 1020 | 1275 | 1530 | 1785 | 2040 | 2295 | 2550 |
| Throw (ft) | 27 | 33 | 39 | 45 | 52 | 58 | 64 | ||
| 24×24 / 36×16 / 48×12This model | 2.65 | Air Volume (CFM) | 1060 | 1325 | 1590 | 1855 | 2120 | 2385 | 2650 |
| Throw (ft) | 28 | 34 | 41 | 47 | 53 | 60 | 66 | ||
| 30×20 | 2.76 | Air Volume (CFM) | 1104 | 1380 | 1656 | 1932 | 2208 | 2484 | 2760 |
| Throw (ft) | 28 | 35 | 41 | 48 | 54 | 61 | 67 | ||
| 36×18 | 2.98 | Air Volume (CFM) | 1192 | 1490 | 1788 | 2086 | 2384 | 2682 | 2980 |
| Throw (ft) | 29 | 36 | 43 | 50 | 57 | 63 | 70 | ||
| 30×22 | 3.03 | Air Volume (CFM) | 1212 | 1515 | 1818 | 2121 | 2424 | 2727 | 3030 |
| Throw (ft) | 29.5 | 36.5 | 43.5 | 50 | 57.5 | 63.5 | 70.5 | ||
| 48×14 | 3.09 | Air Volume (CFM) | 1236 | 1545 | 1854 | 2163 | 2472 | 2781 | 3090 |
| Throw (ft) | 30 | 37 | 44 | 51 | 58 | 64 | 71 | ||
| 36×20 / 30×24 | 3.3 | Air Volume (CFM) | 1320 | 1650 | 1980 | 2310 | 2640 | 2970 | 3300 |
| Throw (ft) | 31 | 38 | 45 | 52 | 60 | 67 | 74 | ||
| 48×16 | 3.52 | Air Volume (CFM) | 1408 | 1760 | 2112 | 2464 | 2816 | 3168 | 3520 |
| Throw (ft) | 32 | 39 | 47 | 54 | 62 | 69 | 76 | ||
| 36×22 | 3.63 | Air Volume (CFM) | 1452 | 1815 | 2178 | 2541 | 2904 | 3267 | 3630 |
| Throw (ft) | 32 | 40 | 48 | 55 | 62 | 70 | 77 | ||
| 36×24 | 4.02 | Air Volume (CFM) | 1608 | 2010 | 2412 | 2814 | 3216 | 3618 | 4020 |
| Throw (ft) | 34 | 42 | 50 | 57 | 65 | 73 | 81 | ||
| 48×24 | 5.26 | Air Volume (CFM) | 2104 | 2630 | 3156 | 3682 | 4208 | 4734 | 5260 |
| Throw (ft) | 39 | 48 | 57 | 66 | 75 | 84 | 93 | ||
