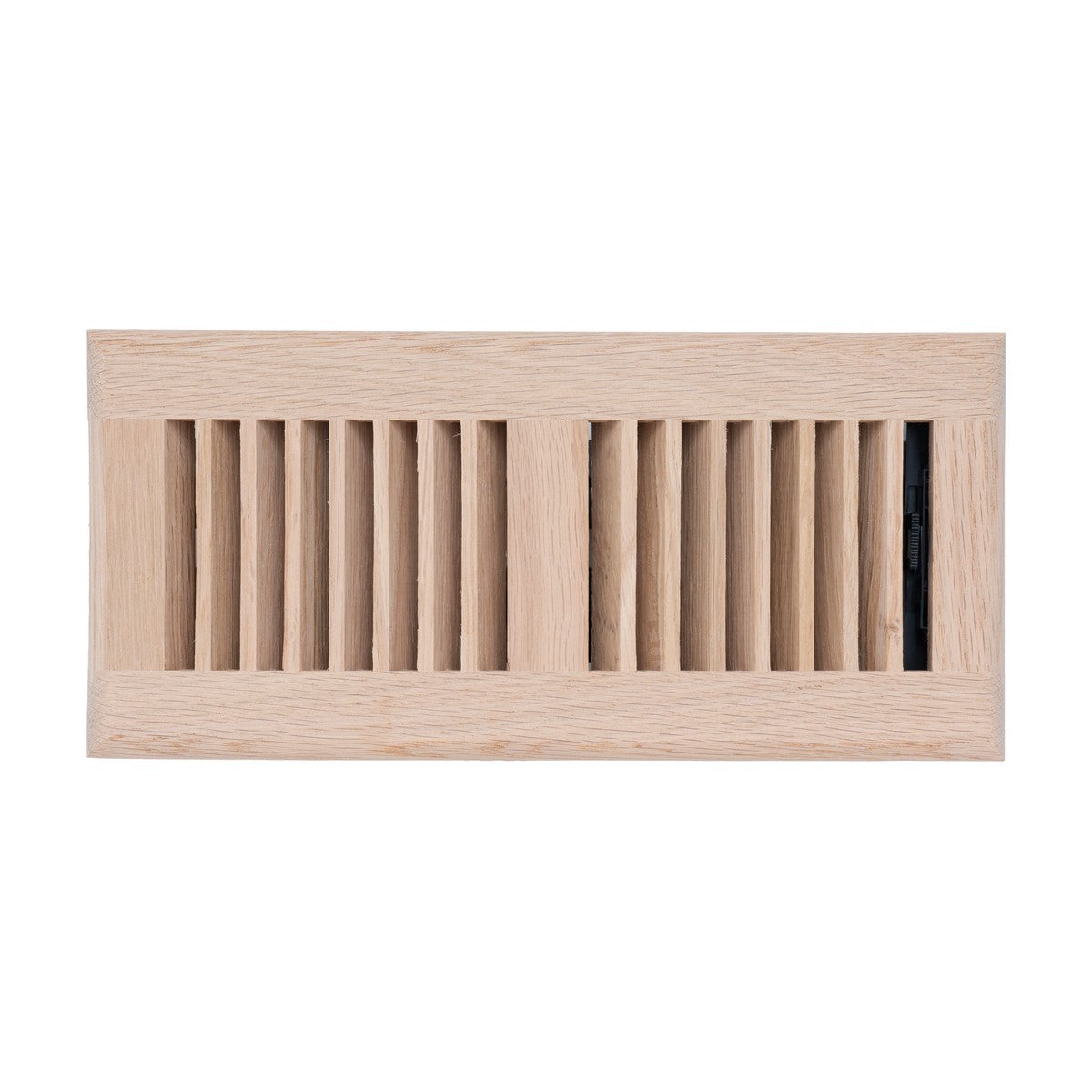

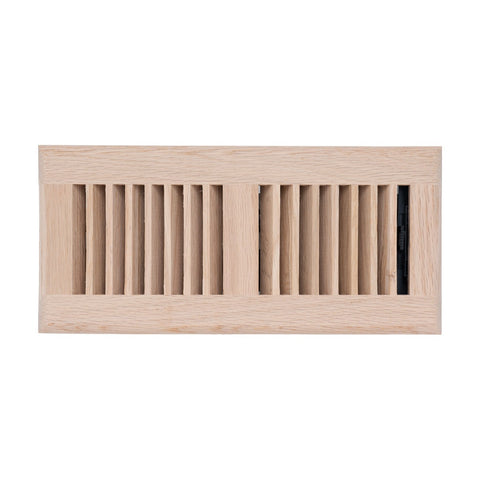

4 x 10-inch Oak Wood floor supply register, front view
4 x 10-inch Oak Wood floor supply register, dimensions

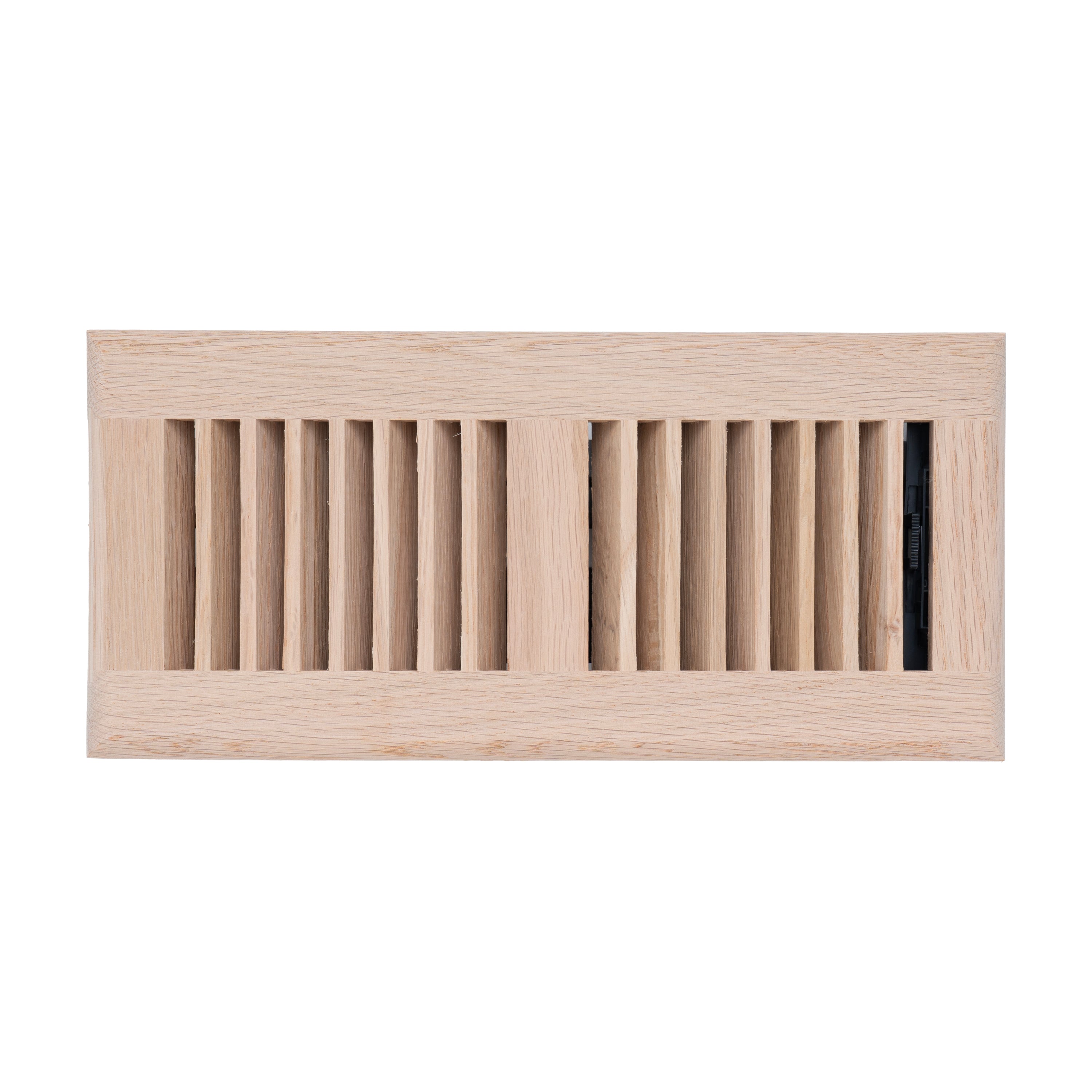

4 x 10-inch Oak Wood floor supply register, front view 2

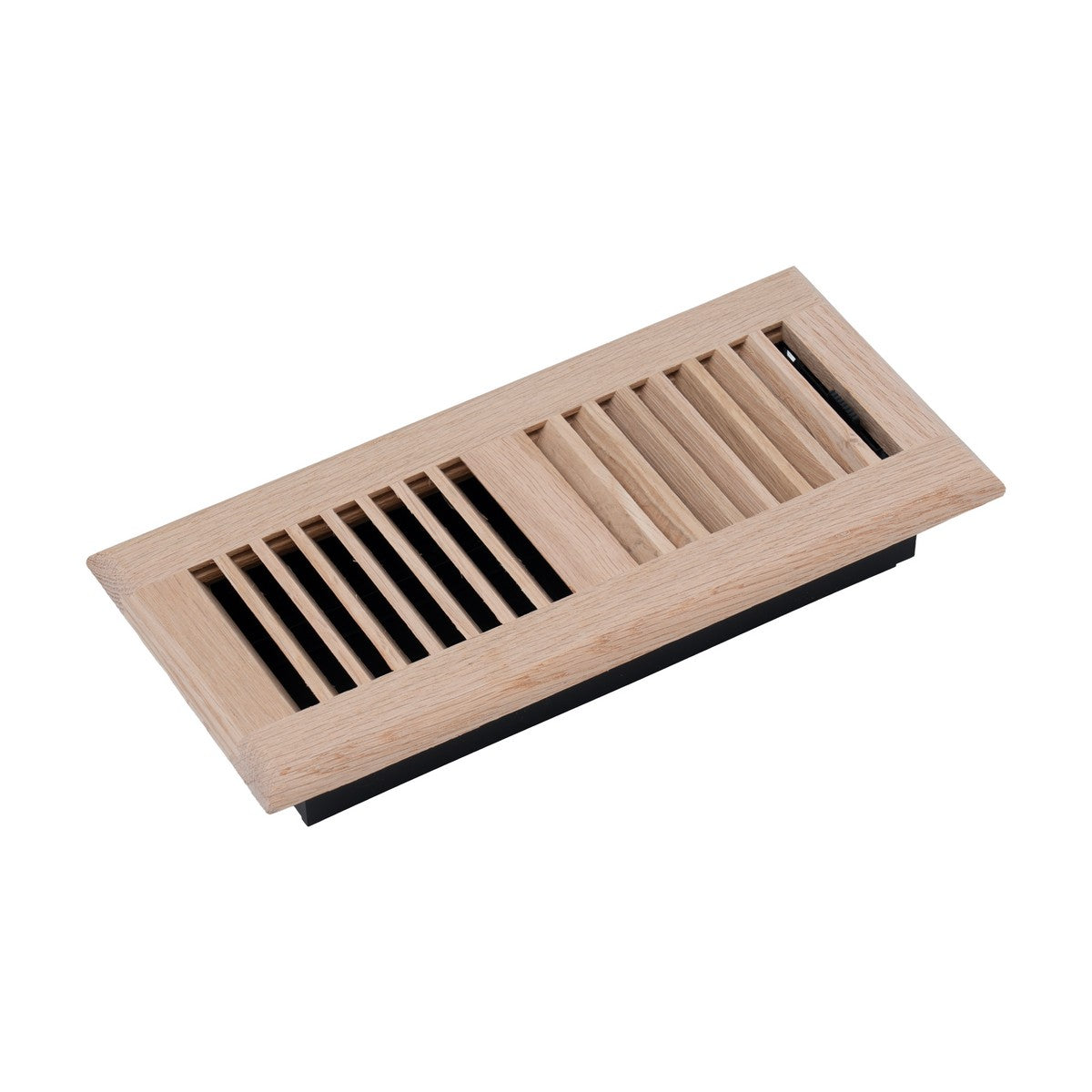

4 x 10-inch Oak Wood floor supply register, angled view

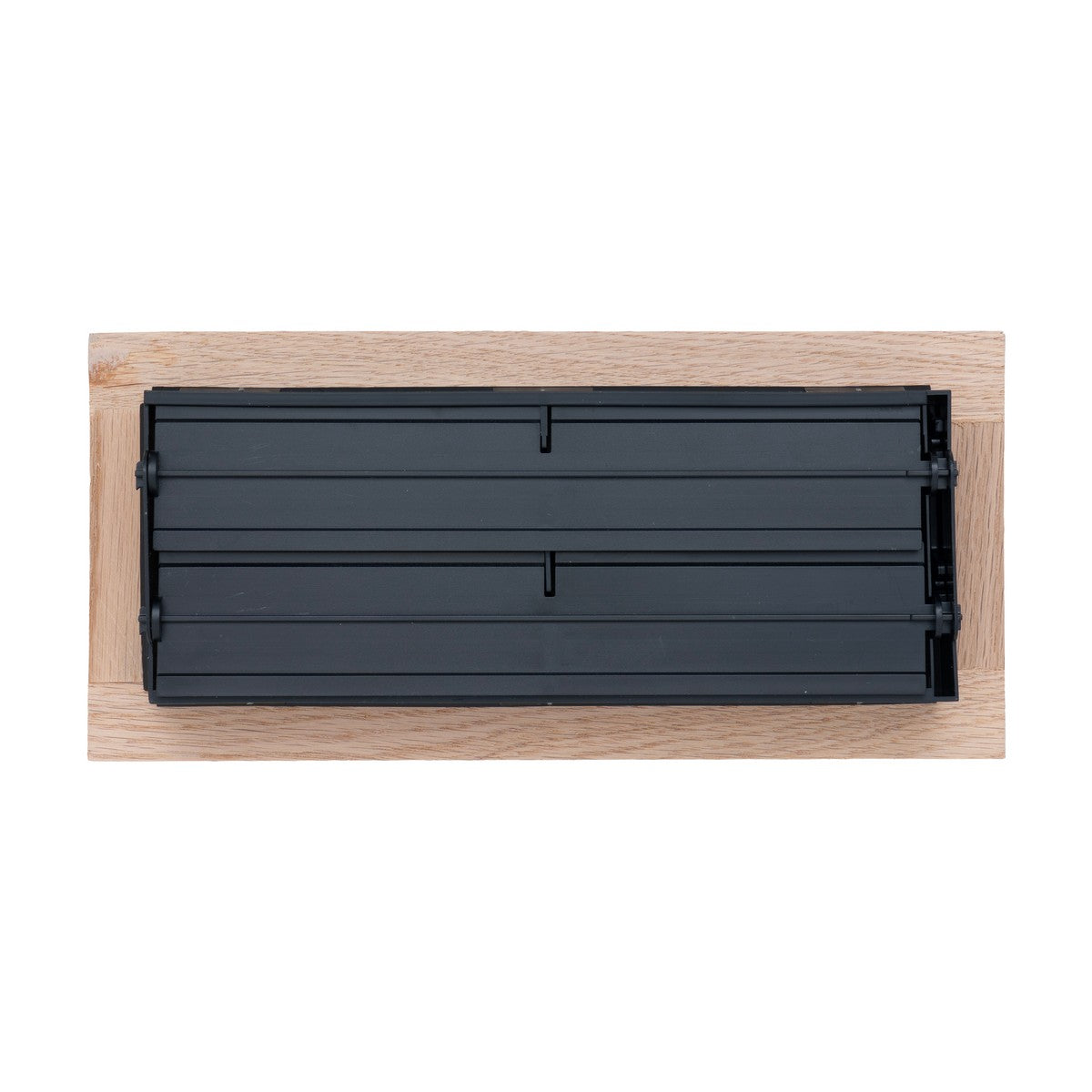

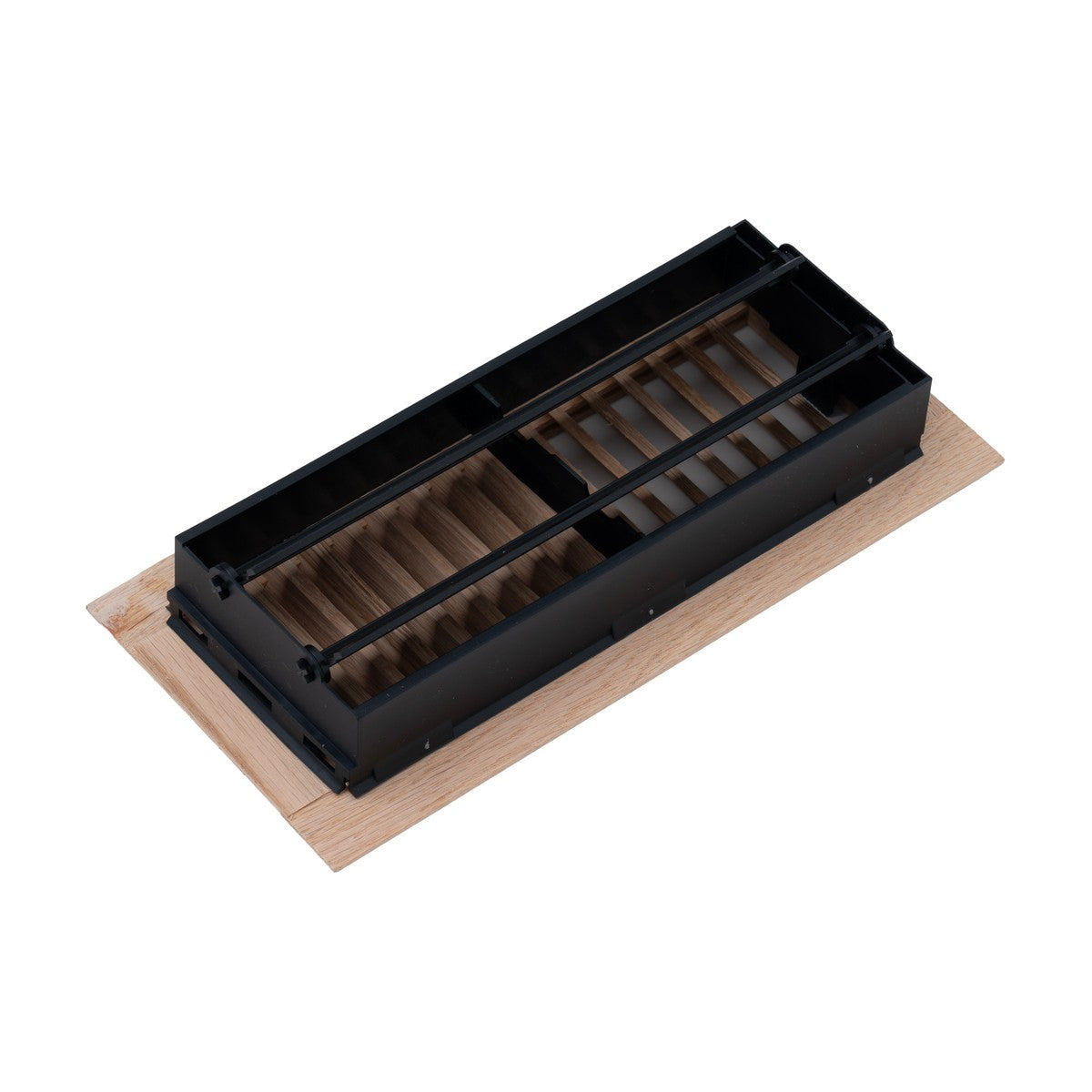

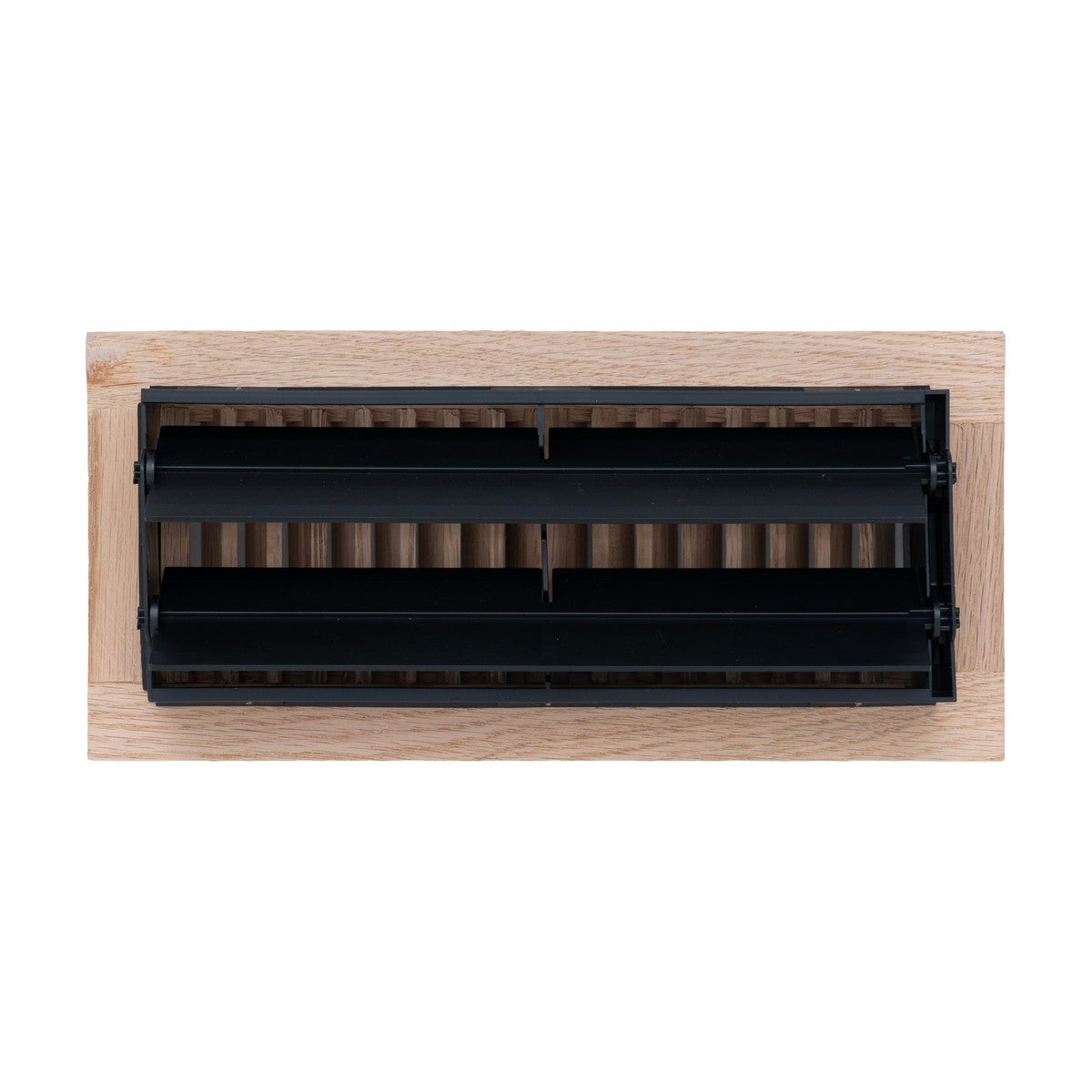

4 x 10-inch Oak Wood floor supply register, rear view
4 x 10-inch Oak Wood floor supply register, rear view 2

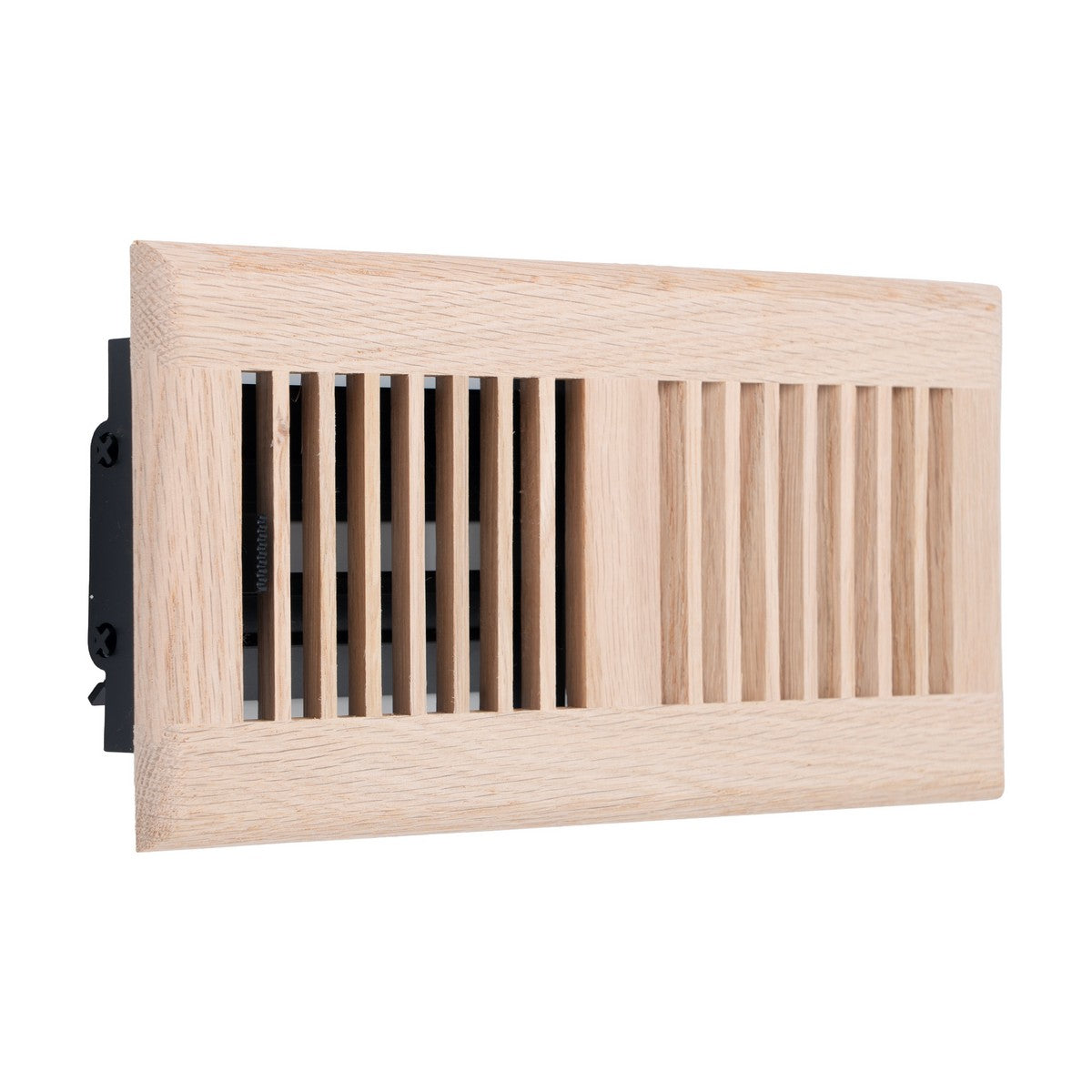

4 x 10-inch Oak Wood floor supply register, angled view 2
4 x 10-inch Oak Wood floor supply register, angled view 3

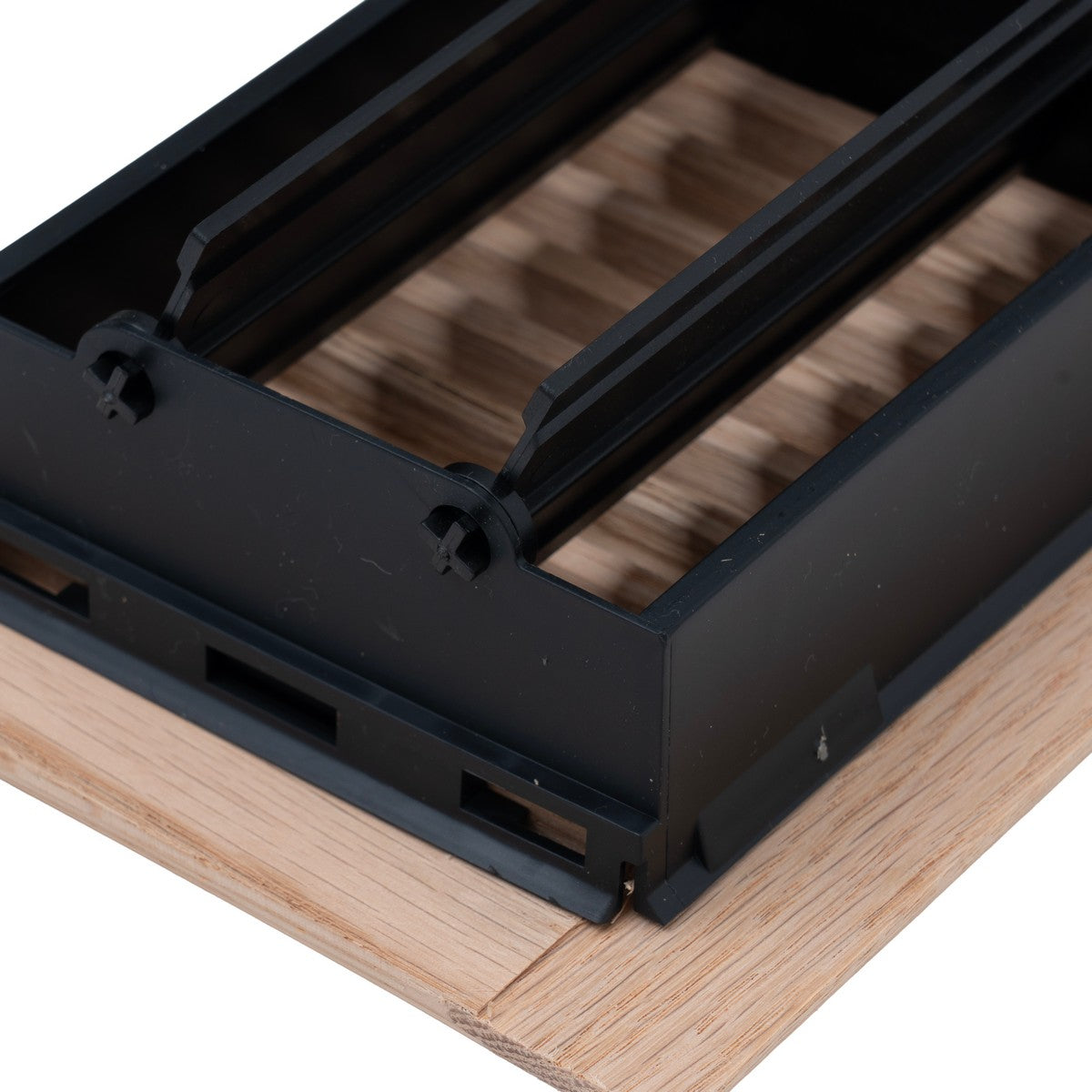

4 x 10-inch Oak Wood floor supply register, damper mechanism detail

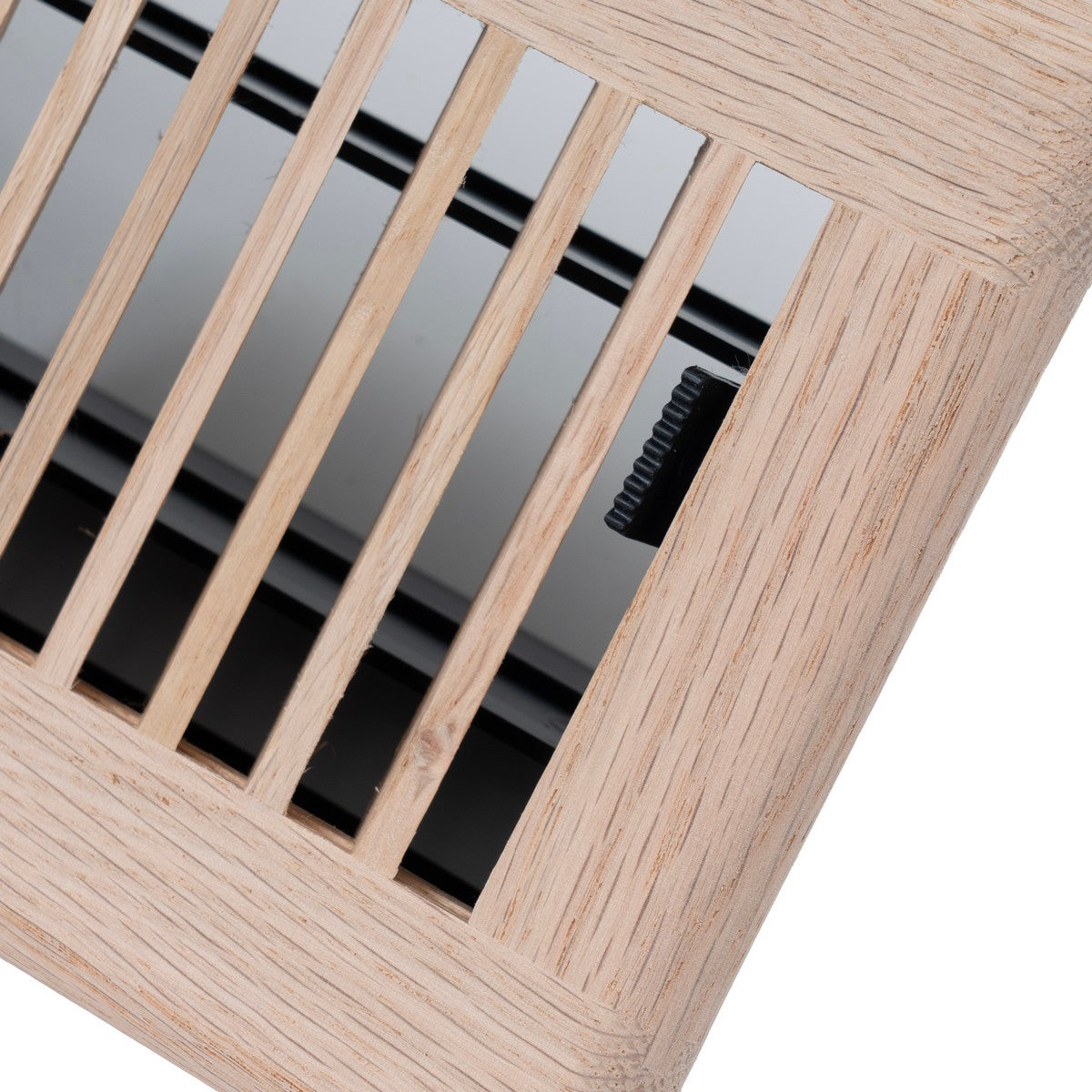

4 x 10-inch Oak Wood floor supply register, damper lever detail

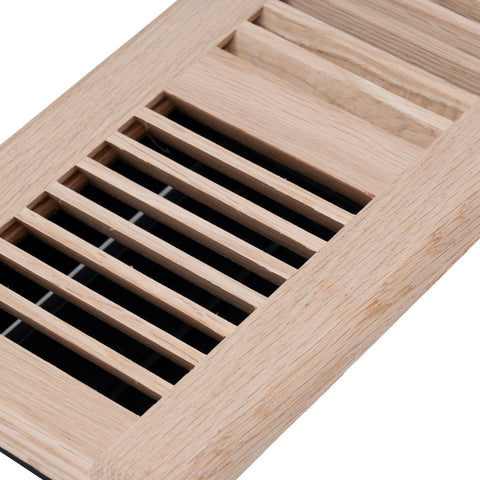

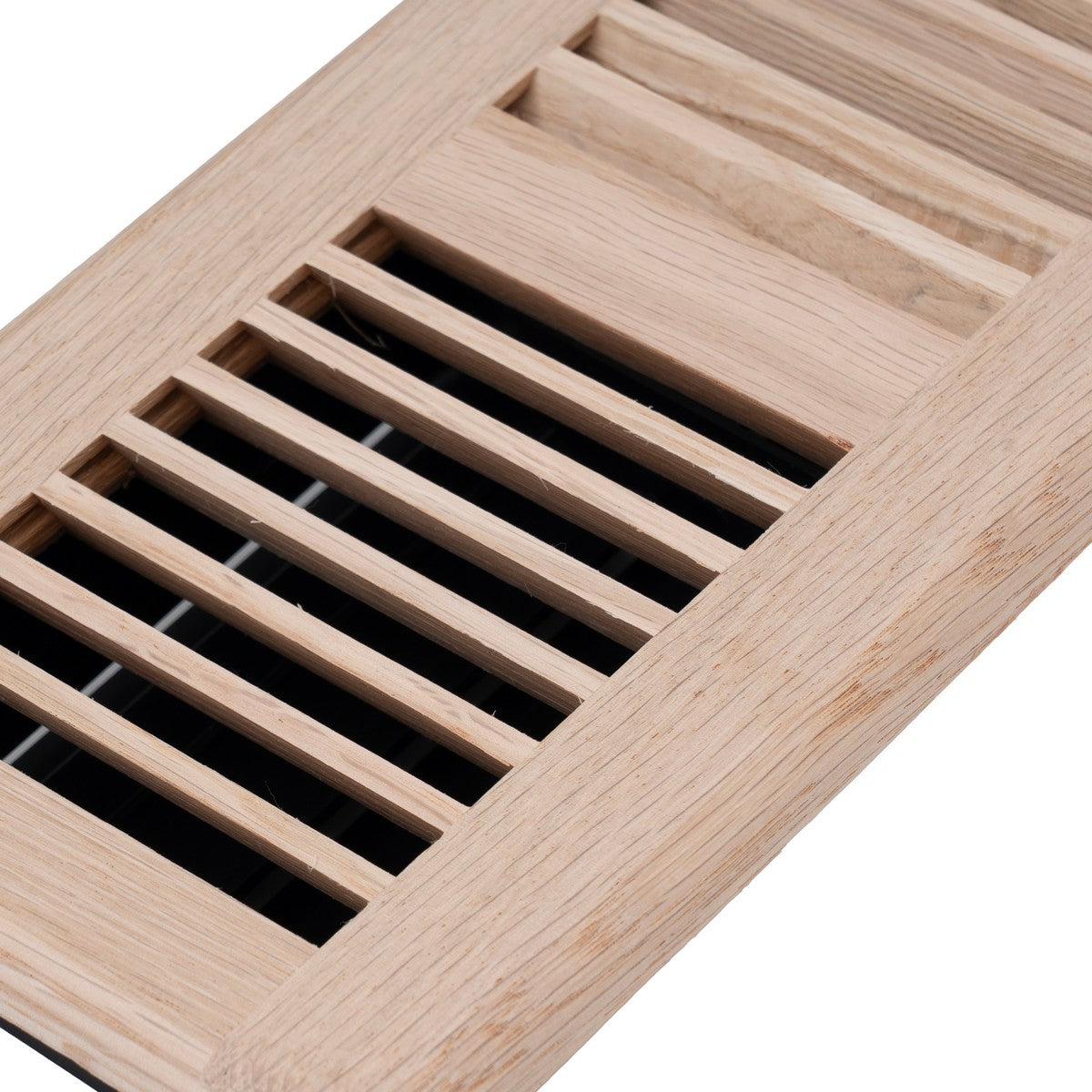

4 x 10-inch Oak Wood floor supply register, louver detail
4 x 10-inch Oak Wood floor supply register, front view
4 x 10-inch Oak Wood floor supply register, dimensions
4 x 10-inch Oak Wood floor supply register, front view 2
4 x 10-inch Oak Wood floor supply register, angled view
4 x 10-inch Oak Wood floor supply register, rear view
4 x 10-inch Oak Wood floor supply register, rear view 2
4 x 10-inch Oak Wood floor supply register, angled view 2
4 x 10-inch Oak Wood floor supply register, angled view 3
4 x 10-inch Oak Wood floor supply register, damper mechanism detail
4 x 10-inch Oak Wood floor supply register, damper lever detail
4 x 10-inch Oak Wood floor supply register, louver detail

Item # 510103-4

4"x10" Oak Wood Floor Register, Walkable Louvered Vent Cover with Damper

4.8 41 reviews
$27.29
$27.29
Order By Duct Opening Measurements4"W x 10"H
Outer Dimensions 5-3/4"W X 11-3/4"H overall faceplate size
Bulk Pricing
2-1011-2021-4950+100+
$23.20$21.84$20.47$19.11
Subtotal:
67 in stock - ready to ship

Available Sizes & Options

See all Wooden Floor Supply Registers →
4 x 10-inch Oak Wood floor supply register, front view

4"x10" Oak Wood Floor Register, Walkable Louvered Vent Cover with Damper

$27.29
4 x 10-inch Oak Wood floor supply register, front view
4 x 10-inch Oak Wood floor supply register, dimensions
4 x 10-inch Oak Wood floor supply register, front view 2
4 x 10-inch Oak Wood floor supply register, angled view
4 x 10-inch Oak Wood floor supply register, rear view
4 x 10-inch Oak Wood floor supply register, rear view 2
4 x 10-inch Oak Wood floor supply register, angled view 2
4 x 10-inch Oak Wood floor supply register, angled view 3
4 x 10-inch Oak Wood floor supply register, damper mechanism detail
4 x 10-inch Oak Wood floor supply register, damper lever detail
4 x 10-inch Oak Wood floor supply register, louver detail

4"x10" Oak Wood Floor Register, Walkable Louvered Vent Cover with Damper

$27.29
Description
Description
x

Product Overview

The 4"W x 10"H oak floor register carries supply air into the room through a floor opening. Solid wood construction adds a warm, finished look, a stronger choice than lightweight plastic covers. A built-in damper adjusts or shuts the airflow, so comfort can be set room by room. Select this wooden floor register by its duct opening size, not the overall face size, so it seats correctly on the first fit.

Key Features

  • Wood construction: Solid wood is sturdy and adds a warm, finished look.
  • Oak finish: The oak finish coordinates with common flooring, trim, and hardware.
  • Adjustable airflow: The built-in damper controls the volume of air (open to closed).
  • Walkable strength: The reinforced core supports foot traffic, which suits floor openings in busy rooms.
  • Right-fit sizing: Ordered by duct opening size, this wooden floor register matches standard duct dimensions and cuts wrong-size returns.

Dimensions and Specifications

Product type Wooden Floor Register
Airflow function Supply air
Nominal opening 4"W x 10"H
Overall face dimensions 5-3/4"W X 11-3/4"H
Material Wood
Finish Oak
Mounting location Floor
Airflow control Adjustable damper
Order by Duct Opening
Pack quantity 1
MPN 510103-4
Brand AirGrilles.com

Is This the Right Vent for Your Opening?

Choose this wooden floor register if you need an adjustable supply-air vent for a floor opening. This wooden floor register carries supply air and mounts on floor surfaces. It is not designed for exterior or outdoor use, dryer exhaust venting or use as a filter-holding return grille. Confirm the airflow function against your HVAC layout before ordering.

How to Measure for This Vent

Remove the existing vent and measure the width and height of the duct opening, not the outer face of the old cover. Match those two numbers to the nominal size above. The overall face measures 5-3/4"W X 11-3/4"H.

Installation

Set the floor register into the floor opening so the face rests level with the floor. No screws are required; the register drops in and its flange keeps it seated. Lift it out by the face for cleaning whenever needed.

What's Included

  • 1 x wooden floor register

Ductwork, wall anchors, and installation tools are not included.

Care and Maintenance

Dust the wooden floor register with a dry or lightly damp cloth. Avoid soaking the wood or using harsh chemicals that can dull the finish.

Compare Similar Options

Use this comparison to confirm the wooden floor register matches your opening and airflow need.

Option Best for Material Installation
This wooden floor register Floor supply openings Wood Floor
Return air grille Return-air openings Steel Wall or ceiling
Wall/ceiling supply register Wall or ceiling supply openings Steel Wall or ceiling
Shipping & Return
Shipping & Return
x

Shipping

  • Free shipping over $250 (contiguous US). Otherwise calculated at checkout.
  • Order by 11:00 AM ET on a business day and it ships the same day — otherwise the next business day.
  • Delivery in about 4–5 days after dispatch (FedEx / UPS), with tracking emailed when your order ships.
  • US only. We cannot ship to P.O. boxes or APO/FPO addresses.

Returns

  • 30-day returns. Item must be unused and in its original packaging; opened packages incur a 20% restocking fee.
  • Start a return from your account or at help@airgrilles.com (authorization required). We email a prepaid return label and deduct return shipping from your refund (free if the return is our error); refunds are issued within 5 business days of approval.
  • Damaged, defective, wrong, or lost item? Tell us within 7 days with photos and your order number.
Technical Data
Technical Data
x

Airflow Performance Data

Duct Size (in)Ak (sq ft)MetricFace Velocity (FPM)
300.0400.0500.0600.0700.0800.0900.01000.0
Pressure Loss (in. w.g.)all sizes0.0040.0080.0160.0240.0280.040.0520.06
2×100.094Air Volume (CFM)2838475666758594
Spread (ft)345678910
Throw (ft)4567891011
2×120.110Air Volume (CFM)33445566778899110
Spread (ft)4667891011
Throw (ft)56789101112
2×140.125Air Volume (CFM)3850637588100113125
Spread (ft)46778101112
Throw (ft)578910111213
3×100.137Air Volume (CFM)4155698296110123137
Spread (ft)46789101112
Throw (ft)578910111213
4×80.150Air Volume (CFM)45607590105120135150
Spread (ft)45789101113
Throw (ft)6781011121314
4×10This model0.170Air Volume (CFM)516885102119136153170
Spread (ft)567810111315
Throw (ft)6791112131517
4×12 / 6×80.200Air Volume (CFM)6080100120140160180200
Spread (ft)6791112141517
Throw (ft)568910111314
4×140.230Air Volume (CFM)6992115138161184207230
Spread (ft)78101113161719
Throw (ft)6781011131415
6×100.247Air Volume (CFM)7499124148173198222247
Spread (ft)6891213151719
Throw (ft)5781011131415
6×120.285Air Volume (CFM)86114143171200228257285
Spread (ft)79101315171922
Throw (ft)6891112151618
6×140.335Air Volume (CFM)101134168201235268302335
Spread (ft)89111316182022
Throw (ft)68101213151718
8×140.406Air Volume (CFM)122162203244284325365406
Spread (ft)910111417182123
Throw (ft)78101213151719
Values are given across face velocities (FPM). Ak = effective area, An = neck area. Static pressure in inches of water gauge (in. w.g.); throw in feet. The highlighted row is this product’s size. A dash (–) means the value is not published.

What Amazon buyers said

4.8
based on 41 Amazon reviews

Excellent Replacment Register

This is a perfect replacement for a broken register in our kitchen. The color/shade of the finish is slightly lighter than our old register but otherwise, it's an exact duplicate. I'm sure it will darken up over time like the register it is replacing. But, these are also excellent registers if you are looking for something new. Specifically if you have real hardwood flooring. One of the benefits being, if the color is wrong, you can easily sand, stain, and refinish them to match your floors.
Jon F.2"W x 12"HAmazon

Very nice wood floor register

I got this because it matches the flooring I just installed, and thought it would look better than a metal register. I was right, this actually looks fantastic. This fit the 12x4 duct opening perfectly. This vent allows for very good air flow. The wood used in this register looks very good and durable. I think this is an excellent value for the money.
Make F.4"W x 12"HAmazon

Beautiful Real Wood, Decent but Not Great Internals

⭐ 4 Stars — Beautiful Real Wood, Decent but Not Great InternalsThis is a great-looking piece, and the real wood exterior absolutely elevates it. It feels solid, well-made, and much nicer than the typical all-plastic options out there.That said, the plastic components inside—especially the parts that connect into the duct and handle airflow—are just okay, not exceptional. They work fine, but they don’t match the premium feel of the wood.Still, performance is reliable, the design is attractive, and for the price, it’s a strong 4-star item. A stylish upgrade with a few compromises under the surface.
Howard4"W x 10"HAmazon

It looks so neat and unique, I love it

I needed to get a new vent cover as my old one was starting to rust or just look really old as it’s been years.I was originally going to purchase an exact copy/replica of my original old one.But this wood air vent caught my eye and I’m honestly glad I got this. It looks great in person, the wood feels good quality, it’s sanded well/fair, the cuts seem neat. I also really like the base wood color. It looks neater and more flush with my wood floors. It looks durable and well made, so I love it. The switch/knobs for the vent is also neatly tucked to the side but still easily accessible. The actual adjustment panels on the inside is also really nice, it opens and closes properly.Sizing wise it was a perfect fit. I ordered a 4x12 as that’s what I somewhat measured from my air vent and it was an exact match.All in all, I’m glad I decided to try it out and go for it. I definitely recommend!Just be sure to check your flooring or wall/ceiling colors and see if you think it’d look good in your home. It also feels like it’s good to be stained or oiled if you like. I personally liked the base wood color so it ended up being very accurate. Which I’m happy with !
Ekta4"W x 12"HAmazon

Very nice duct cover

Exactly as advertised. Very pretty will be replacing an old metal duck. The color matches the flooring nicely. The only thing is that the metal duct was flushed with the floor and this one is a little higher. Be sure and measure your vent on the inside of the duct not the outside for correct fit. This is what I did and it fits perfect. it appears very durable and I think it will last for a while 'I’m gonna have to replace all the other vent covers.
AllieC4"W x 10"HAmazon
