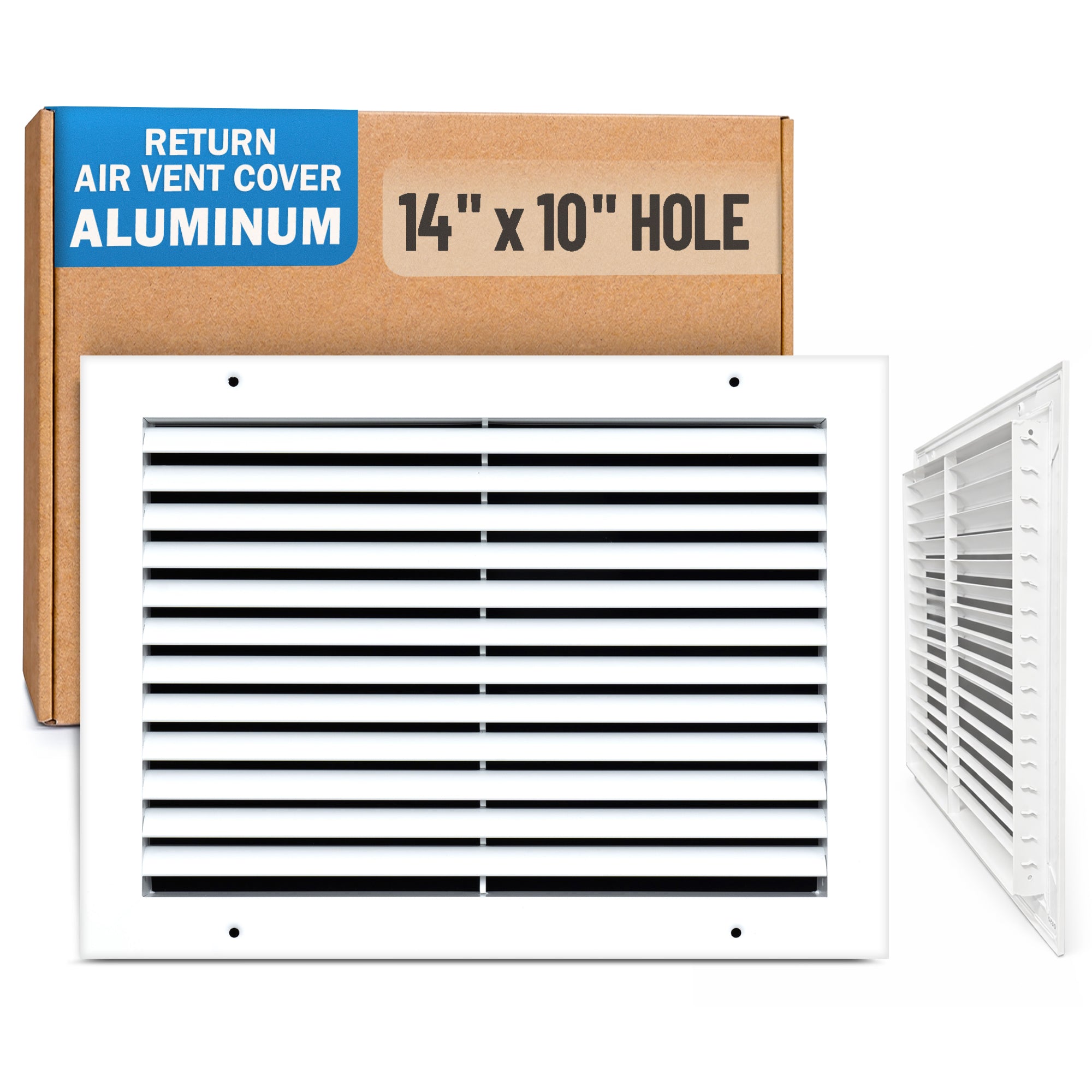

14 x 10-inch White Aluminum bar return grille, packaging
14 x 10-inch White Aluminum bar return grille, front view 2
14 x 10-inch White Aluminum bar return grille, frame corner detail
14 x 10-inch White Aluminum bar return grille, louver detail
14 x 10-inch White Aluminum bar return grille, frame profile detail
14 x 10-inch White Aluminum bar return grille, louver detail 2
14 x 10-inch White Aluminum bar return grille, front view
14 x 10-inch White Aluminum bar return grille, dimensions
14 x 10-inch White Aluminum bar return grille, angled view
14 x 10-inch White Aluminum bar return grille, packaging
14 x 10-inch White Aluminum bar return grille, front view 2
14 x 10-inch White Aluminum bar return grille, frame corner detail
14 x 10-inch White Aluminum bar return grille, louver detail
14 x 10-inch White Aluminum bar return grille, frame profile detail
14 x 10-inch White Aluminum bar return grille, louver detail 2

Item # 110108-8

14"x10" White Aluminum Rust-Free Return Air Grille, High-Airflow HVAC Cold Air Intake for Wall & Ceiling

$40.59
$0.00
$40.59
Order By Duct Opening Measurements14"W x 10"H
Outer Dimensions 15-13/16"W X 11-13/16"H overall faceplate size
Bulk Pricing
2-1011-2021-4950+100+
$34.51$32.48$30.45$28.42
Subtotal:

Available Sizes & Options

See all Aluminum Bar Return Grilles →
14 x 10-inch White Aluminum bar return grille, front view

14"x10" White Aluminum Rust-Free Return Air Grille, High-Airflow HVAC Cold Air Intake for Wall & Ceiling

$40.59
14 x 10-inch White Aluminum bar return grille, front view
14 x 10-inch White Aluminum bar return grille, dimensions
14 x 10-inch White Aluminum bar return grille, angled view
14 x 10-inch White Aluminum bar return grille, packaging
14 x 10-inch White Aluminum bar return grille, front view 2
14 x 10-inch White Aluminum bar return grille, frame corner detail
14 x 10-inch White Aluminum bar return grille, louver detail
14 x 10-inch White Aluminum bar return grille, frame profile detail
14 x 10-inch White Aluminum bar return grille, louver detail 2

14"x10" White Aluminum Rust-Free Return Air Grille, High-Airflow HVAC Cold Air Intake for Wall & Ceiling

$40.59
Description
Description
x

Product Overview

The 14"W x 10"H white aluminum linear bar grille carries return air back to the HVAC system through a ceiling and sidewall opening. Extruded aluminum resists rust in humid rooms, a stronger choice than lightweight plastic covers. Select this linear bar grille by its duct opening size, not the overall face size, so it seats correctly on the first fit.

Key Features

  • Aluminum construction: Aluminum keeps the linear bar grille rigid during installation and resists warping over time.
  • White finish: The white finish coordinates with common flooring, trim, and hardware.
  • Right-fit sizing: Ordered by duct opening size, this linear bar grille matches standard duct dimensions and cuts wrong-size returns.

Dimensions and Specifications

Product type Linear Bar Grille
Airflow function Return air
Nominal opening 14"W x 10"H
Overall face dimensions 15-13/16"W X 11-13/16"H
Material Aluminum
Finish White
Mounting location Ceiling and Sidewall
Airflow control Fixed
Order by Duct Opening
Pack quantity 1
MPN 110108-8
Brand AirGrilles.com

Is This the Right Vent for Your Opening?

Choose this linear bar grille if you need a return-air vent for a ceiling or sidewall opening. This linear bar grille carries return air and mounts on ceiling and sidewall surfaces. It is not designed for floor installation or foot traffic, exterior or outdoor use or dryer exhaust venting. Confirm the airflow function against your HVAC layout before ordering.

How to Measure for This Vent

Remove the existing vent and measure the width and height of the duct opening, not the outer face of the old cover. Match those two numbers to the nominal size above. The overall face measures 15-13/16"W X 11-13/16"H.

Installation

Position the linear bar grille over the duct opening with the bar face facing the room. Confirm the frame sits flush against the ceiling surface before marking the screw points. Secure it with the included screws without overtightening, since excess force can distort the frame.

What's Included

  • 1 x linear bar grille
  • Mounting screws

Ductwork, wall anchors, and installation tools are not included.

Care and Maintenance

Clean the linear bar grille with a soft, damp cloth and mild soap. Avoid abrasive chemicals that can damage the white finish. Dry the surface to keep moisture off the metal.

Compare Similar Options

Use this comparison to confirm the linear bar grille matches your opening and airflow need.

Option Best for Material Installation
This linear bar grille Return-air openings Aluminum Wall or ceiling
Return air filter grille Returns that hold a 1-inch filter Steel Wall or ceiling
Eggcrate return grille High-airflow commercial returns Aluminum Ceiling
Shipping & Return
Shipping & Return
x

Shipping

  • Free shipping over $250 (contiguous US). Otherwise calculated at checkout.
  • Order by 11:00 AM ET on a business day and it ships the same day — otherwise the next business day.
  • Delivery in about 4–5 days after dispatch (FedEx / UPS), with tracking emailed when your order ships.
  • US only. We cannot ship to P.O. boxes or APO/FPO addresses.

Returns

  • 30-day returns. Item must be unused and in its original packaging; opened packages incur a 20% restocking fee.
  • Start a return from your account or at help@airgrilles.com (authorization required). We email a prepaid return label and deduct return shipping from your refund (free if the return is our error); refunds are issued within 5 business days of approval.
  • Damaged, defective, wrong, or lost item? Tell us within 7 days with photos and your order number.
Technical Data
Technical Data
x

Airflow Performance Data

Duct Size (in)Ak (sq ft)Air Volume (CFM)Static Pressure (in. w.g.)
Face Velocity (FPM)Face Velocity (FPM)
400.0500.0600.0700.0800.0900.01000.0400.0500.0600.0700.0800.0900.01000.0
16×12 / 24×80.903604505406307208109000.0210.0320.0460.0620.0780.10.122
14×140.923684605526447368289200.020.0320.0460.0620.0790.1020.125
24×101.14456570684798912102611400.020.0320.0460.0620.0780.10.125
16×161.22488610732854976109812200.0210.0320.0450.0610.0780.1020.125
14×20 / 20×141.345366708049381072120613400.0220.0350.0510.0670.0840.1120.136
12×24 / 16×18 / 36×8 / 24×121.385526908289661104124213800.0150.0220.0320.0430.0550.070.085
16×20 / 20×161.5461677092410781232138615400.0190.0290.0410.0550.070.0920.113
18×181.5662478093610921248140415600.020.0320.0460.0620.0790.1020.124
14×24 / 24×141.6264881097211341296145816200.020.0320.0460.0610.0760.1020.124
14×251.69676845101411831352152116900.020.0320.0450.0610.0760.1020.124
12×30 / 20×18 / 30×121.74696870104412181392156617400.0130.020.0290.0390.0490.0630.077
24×161.86744930111613021488167418600.020.0320.0460.0630.0810.1020.126
20×201.94776970116413581552174619400.0210.0320.0460.0620.0790.1020.124
14×30 / 30×142.048161020122414281632183620400.0180.0290.0410.0550.0680.0920.112
18×24 / 24×182.108401050126014701680189021000.020.030.0450.0620.0780.1020.124
20×24 / 24×20 / 30×162.349361170140416381872210623400.020.0320.0460.0620.0790.1020.124
20×25 / 25×202.449761220146417081952219624400.0210.0320.0450.0620.0790.1010.124
18×30 / 30×182.6410561320158418482112237626400.0210.0320.0450.0620.0790.1010.124
? (etiket: 36×18)~0.662643303964625285946600.0210.0320.0460.0620.0780.10.122
20×282.7410961370164419182192246627400.020.0320.0450.0620.0780.1020.124
24×242.8211281410169219742256253828200.0210.0320.0480.0640.0860.1060.128
20×30 / 30×202.9411761470176420582352264629400.020.0320.0450.0620.0780.1010.124
36×183.1812721590190822262544286231800.0220.0340.050.0680.0940.120.134
24×303.5414161770212424782832318635400.0220.0340.050.0670.090.1110.134
36×244.2617042130255629823408383442600.0260.0390.0560.0780.1040.130.155
Values are given across face velocities (FPM). Ak = effective area, An = neck area. Static pressure in inches of water gauge (in. w.g.); throw in feet. The highlighted row is this product’s size. A dash (–) means the value is not published.
