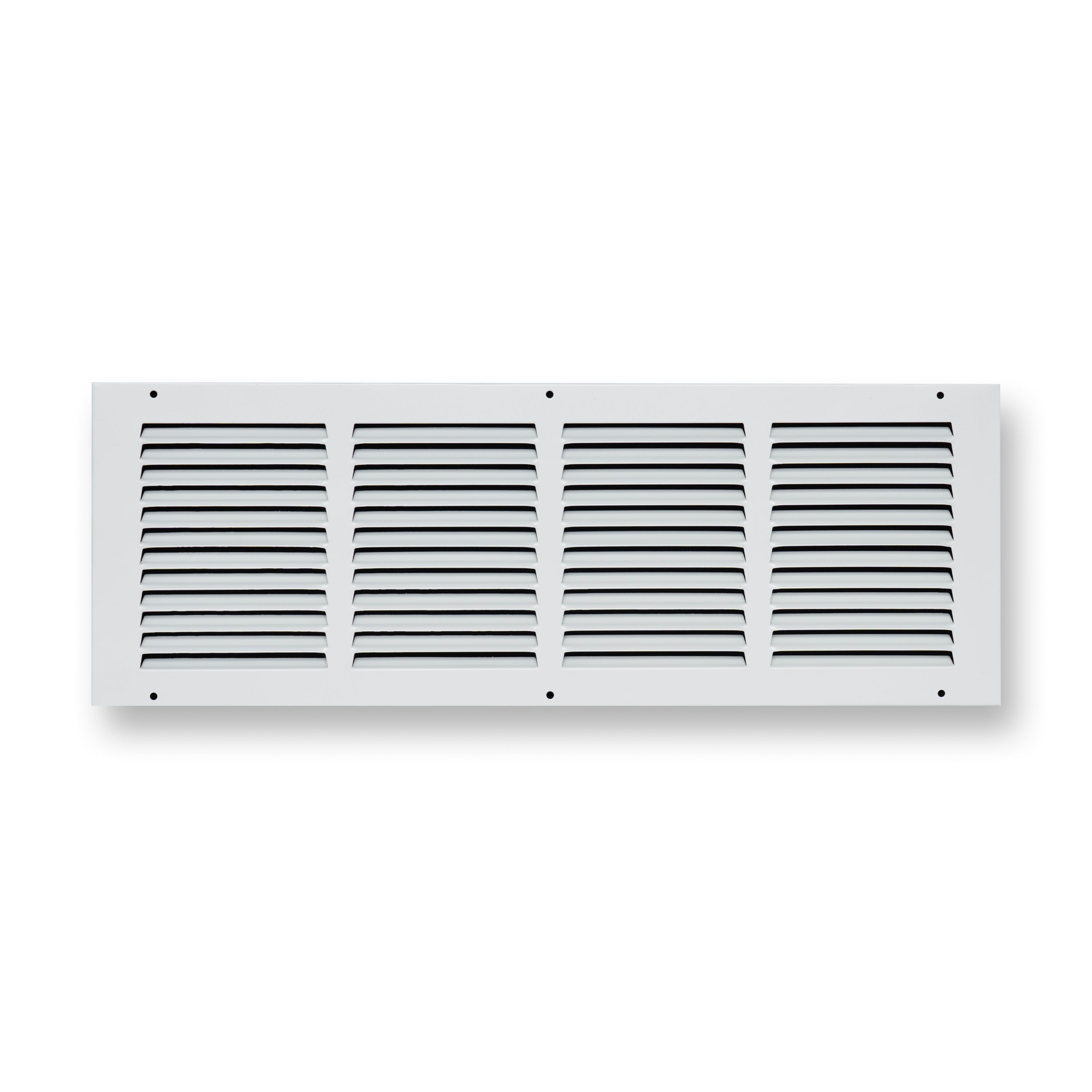

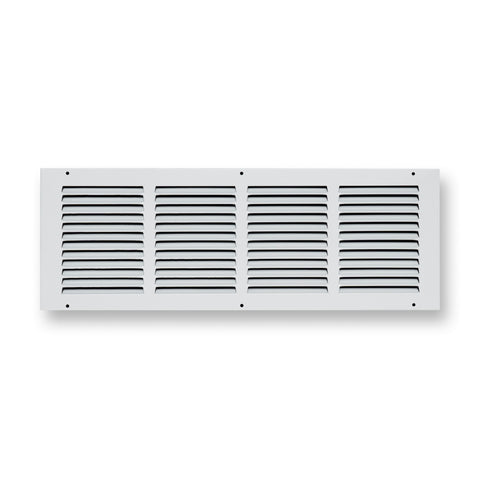

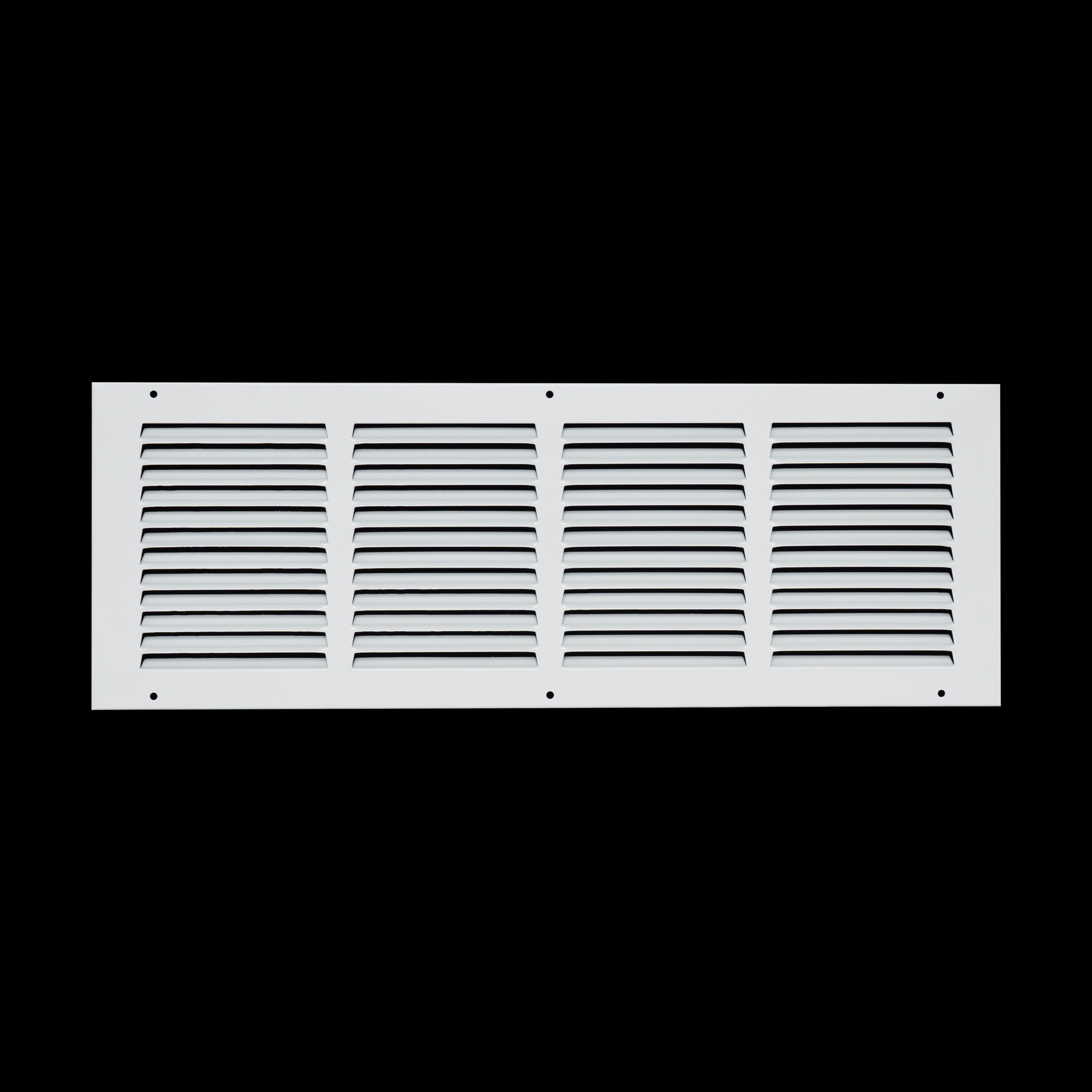

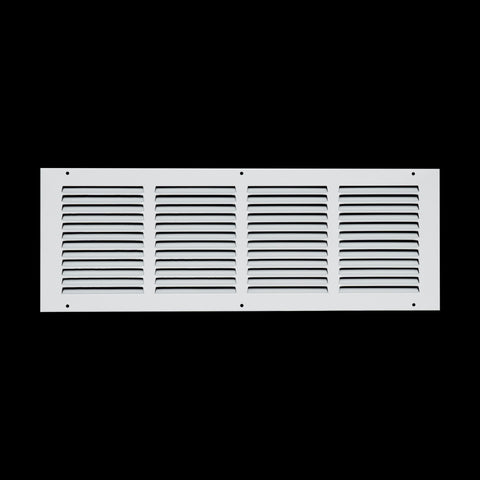

20 x 6-inch White Steel flat stamped return grille, front view

20 x 6-inch White Steel flat stamped return grille, packaging

20 x 6-inch White Steel flat stamped return grille, mounting screw detail

20 x 6-inch White Steel flat stamped return grille, frame corner detail

20 x 6-inch White Steel flat stamped return grille, louver detail

20 x 6-inch White Steel flat stamped return grille, mounting screw detail 2

Item # 110101-38

20"x6" White Steel Return Air Grille, High-Airflow HVAC Cold Air Intake for Wall & Ceiling

Regular price: $11.39
Regular price: ~~$0.00~~
Sale price: $11.39
Unit price: per

Order By Duct Opening Measurements20"W x 6"H

Outer Dimensions 21-3/4"W X 7-3/4"H overall faceplate size

Bulk Pricing
2-10	11-20	21-49	50+	100+
$9.69	$9.12	$8.55	$7.98

129 in stock - ready to ship

Available Sizes & Options

See all Flat Stamped Steel Return Grilles →

20"x6" White Steel Return Air Grille, High-Airflow HVAC Cold Air Intake for Wall & Ceiling

$11.39

Quantity:

20"x6" White Steel Return Air Grille, High-Airflow HVAC Cold Air Intake for Wall & Ceiling

$11.39

Description
Shipping & Return
Technical Data

Product Overview

The 20"W x 6"H white steel return air grille carries return air back to the HVAC system through a ceiling and sidewall opening. Powder-coated steel resists dents and rust for years of use, a stronger choice than lightweight plastic covers. Select this return air grille by its duct opening size, not the overall face size, so it seats correctly on the first fit.

Key Features

Steel construction: Steel keeps the return air grille rigid during installation and resists warping over time.
White finish: The white finish coordinates with common flooring, trim, and hardware.
Right-fit sizing: Ordered by duct opening size, this return air grille matches standard duct dimensions and cuts wrong-size returns.

Dimensions and Specifications

Product type	Return Air Grille
Airflow function	Return air
Nominal opening	20"W x 6"H
Overall face dimensions	21-3/4"W X 7-3/4"H
Material	Steel
Finish	White
Mounting location	Ceiling and Sidewall
Airflow control	Fixed
Order by	Duct Opening
Pack quantity	1
MPN	110101-38
Brand	AirGrilles.com

Is This the Right Vent for Your Opening?

Choose this return air grille if you need a return-air vent for a ceiling or sidewall opening. This return air grille carries return air and mounts on ceiling and sidewall surfaces. It is not designed for floor installation or foot traffic, exterior or outdoor use or dryer exhaust venting. Confirm the airflow function against your HVAC layout before ordering.

How to Measure for This Vent

Remove the existing vent and measure the width and height of the duct opening, not the outer face of the old cover. Match those two numbers to the nominal size above. The overall face measures 21-3/4"W X 7-3/4"H.

Installation

Position the return air grille over the duct opening with the finished face facing the room. Confirm the frame sits flush against the ceiling surface before marking the screw points. Secure it with the included screws without overtightening, since excess force can distort the frame.

What's Included

1 x return air grille
Mounting screws

Ductwork, wall anchors, and installation tools are not included.

Care and Maintenance

Clean the return air grille with a soft, damp cloth and mild soap. Avoid abrasive chemicals that can damage the white finish. Dry the surface to keep moisture off the metal.

Compare Similar Options

Use this comparison to confirm the return air grille matches your opening and airflow need.

Option	Best for	Material	Installation
This return air grille	Return-air openings	Steel	Wall or ceiling
Return air filter grille	Returns that hold a 1-inch filter	Steel	Wall or ceiling
Eggcrate return grille	High-airflow commercial returns	Aluminum	Ceiling

Airflow Performance Data

Values are given across face velocities (FPM). A_k = effective area, A_n = neck area. Static pressure in inches of water gauge (in. w.g.); throw in feet. The highlighted row is this product’s size. A dash (–) means the value is not published.
Duct Size (in)	A_k (sq ft)	Metric	Face Velocity (FPM)
Duct Size (in)	A_k (sq ft)	Metric	300	400	500	600
6×4	0.12	Air Volume (CFM)	36	48	60	72
6×4	0.12	Static Pressure (in. w.g.)	0.02	0.035	0.054	0.079
8×4	0.13	Air Volume (CFM)	39	52	65	78
8×4	0.13	Static Pressure (in. w.g.)	0.019	0.035	0.054	0.079
6×6	0.16	Air Volume (CFM)	48	64	80	96
6×6	0.16	Static Pressure (in. w.g.)	0.019	0.035	0.054	0.079
10×4	0.192	Air Volume (CFM)	58	77	96	115
10×4	0.192	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.076
8×6 / 12×4	0.23	Air Volume (CFM)	69	92	115	138
8×6 / 12×4	0.23	Static Pressure (in. w.g.)	0.02	0.036	0.052	0.08
14×4	0.26	Air Volume (CFM)	78	104	130	156
14×4	0.26	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.078
10×6	0.28	Air Volume (CFM)	84	112	140	168
10×6	0.28	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.076
8×8	0.3	Air Volume (CFM)	90	120	150	180
8×8	0.3	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.078
12×6 / 18×4	0.34	Air Volume (CFM)	102	136	170	204
12×6 / 18×4	0.34	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.077
8×10 / 10×8	0.38	Air Volume (CFM)	114	152	190	228
8×10 / 10×8	0.38	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.076
14×6	0.39	Air Volume (CFM)	117	156	195	234
14×6	0.39	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.076
8×12 / 12×8 / 16×6 / 24×4	0.45	Air Volume (CFM)	135	180	225	270
8×12 / 12×8 / 16×6 / 24×4	0.45	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.076
10×10	0.48	Air Volume (CFM)	144	192	240	288
10×10	0.48	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
18×6	0.5	Air Volume (CFM)	150	200	250	300
18×6	0.5	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
8×14 / 14×8	0.52	Air Volume (CFM)	156	208	260	312
8×14 / 14×8	0.52	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.076
12×10 / 20×6 / 30×4This model	0.56	Air Volume (CFM)	168	224	280	336
12×10 / 20×6 / 30×4This model	0.56	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
16×8	0.62	Air Volume (CFM)	186	248	–	372
16×8	0.62	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.076
10×14 / 14×10	0.64	Air Volume (CFM)	192	256	320	384
10×14 / 14×10	0.64	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
12×12 / 18×8 / 24×6	0.67	Air Volume (CFM)	201	268	335	402
12×12 / 18×8 / 24×6	0.67	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
10×16 / 16×10 / 20×8	0.74	Air Volume (CFM)	222	296	370	444
10×16 / 16×10 / 20×8	0.74	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
12×14 / 14×12	0.78	Air Volume (CFM)	234	312	390	468
12×14 / 14×12	0.78	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.073
18×10 / 30×6	0.83	Air Volume (CFM)	249	332	415	498
18×10 / 30×6	0.83	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.073
12×16 / 16×12 / 24×8	0.88	Air Volume (CFM)	264	352	440	528
12×16 / 16×12 / 24×8	0.88	Static Pressure (in. w.g.)	0.02	0.032	0.053	0.074
14×14	0.9	Air Volume (CFM)	270	360	450	540
14×14	0.9	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
10×20 / 20×10	0.9	Air Volume (CFM)	276	368	460	552
10×20 / 20×10	0.9	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
12×18 / 18×12 / 36×6	0.99	Air Volume (CFM)	297	396	495	594
12×18 / 18×12 / 36×6	0.99	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
14×16 / 16×14	1.03	Air Volume (CFM)	309	412	515	618
14×16 / 16×14	1.03	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.071
12×20 / 10×24 / 20×12 / 24×10 / 30×8	1.1	Air Volume (CFM)	330	440	550	660
12×20 / 10×24 / 20×12 / 24×10 / 30×8	1.1	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
14×18 / 18×14	1.15	Air Volume (CFM)	345	460	575	690
14×18 / 18×14	1.15	Static Pressure (in. w.g.)	0.019	0.032	0.052	0.07
16×16	1.17	Air Volume (CFM)	351	468	585	702
16×16	1.17	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
26×10	1.19	Air Volume (CFM)	357	476	595	714
26×10	1.19	Static Pressure (in. w.g.)	0.016	0.032	0.052	0.072
14×20 / 20×14	1.28	Air Volume (CFM)	384	512	640	768
14×20 / 20×14	1.28	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
12×24 / 18×16 / 24×12 / 36×8	1.3	Air Volume (CFM)	390	520	650	780
12×24 / 18×16 / 24×12 / 36×8	1.3	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
25×12 / 30×10	1.37	Air Volume (CFM)	411	548	685	822
25×12 / 30×10	1.37	Static Pressure (in. w.g.)	0.016	0.032	0.052	0.072
16×20 / 20×16	1.45	Air Volume (CFM)	435	580	725	870
16×20 / 20×16	1.45	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
18×18	1.47	Air Volume (CFM)	441	588	735	882
18×18	1.47	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
14×24 / 24×14	1.53	Air Volume (CFM)	459	612	765	918
14×24 / 24×14	1.53	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
14×25 / 25×14	1.58	Air Volume (CFM)	474	632	790	948
14×25 / 25×14	1.58	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
12×30 / 18×20 / 20×18 / 30×12 / 36×10	1.65	Air Volume (CFM)	495	660	825	990
12×30 / 18×20 / 20×18 / 30×12 / 36×10	1.65	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.07
26×14	1.66	Air Volume (CFM)	498	664	830	996
26×14	1.66	Static Pressure (in. w.g.)	0.016	0.032	0.052	0.072
16×24 / 24×16	1.73	Air Volume (CFM)	519	692	865	1038
16×24 / 24×16	1.73	Static Pressure (in. w.g.)	0.016	0.032	0.052	0.072
16×25 / 20×20 / 25×16	1.81	Air Volume (CFM)	543	724	905	1086
16×25 / 20×20 / 25×16	1.81	Static Pressure (in. w.g.)	0.016	0.032	0.052	0.072
14×30 / 30×14	1.9	Air Volume (CFM)	570	760	950	1140
14×30 / 30×14	1.9	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.072
12×36 / 18×24 / 24×18 / 36×12	1.95	Air Volume (CFM)	585	780	975	1170
12×36 / 18×24 / 24×18 / 36×12	1.95	Static Pressure (in. w.g.)	0.016	0.031	0.048	0.071
18×25 / 25×18	2.05	Air Volume (CFM)	615	820	1024	1230
18×25 / 25×18	2.05	Static Pressure (in. w.g.)	0.016	0.032	0.052	0.072
16×30 / 20×24 / 24×20 / 36×16	2.18	Air Volume (CFM)	654	872	1090	1308
16×30 / 20×24 / 24×20 / 36×16	2.18	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
22×22	2.2	Air Volume (CFM)	660	880	1100	1320
22×22	2.2	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
20×25 / 25×20	2.25	Air Volume (CFM)	675	900	1125	1350
20×25 / 25×20	2.25	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
36×14	2.3	Air Volume (CFM)	690	920	1150	1380
36×14	2.3	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
16×32	2.33	Air Volume (CFM)	699	932	1165	1398
16×32	2.33	Static Pressure (in. w.g.)	0.02	0.032	0.052	0.072
18×30 / 30×18	2.54	Air Volume (CFM)	762	1016	1270	1524
18×30 / 30×18	2.54	Static Pressure (in. w.g.)	0.016	0.03	0.048	0.068
16×36 / 24×24 / 36×16	2.59	Air Volume (CFM)	777	1036	1295	1554
16×36 / 24×24 / 36×16	2.59	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
20×30 / 30×20	2.7	Air Volume (CFM)	810	1080	1350	1620
20×30 / 30×20	2.7	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.064
25×25	2.81	Air Volume (CFM)	843	1124	1405	1686
25×25	2.81	Static Pressure (in. w.g.)	0.016	0.032	0.048	0.068
18×36 / 36×18	2.94	Air Volume (CFM)	882	1176	1470	1764
18×36 / 36×18	2.94	Static Pressure (in. w.g.)	0.016	0.03	0.046	0.066
20×36 / 24×30 / 30×24 / 36×20	3.22	Air Volume (CFM)	966	1288	1610	1932
20×36 / 24×30 / 30×24 / 36×20	3.22	Static Pressure (in. w.g.)	0.016	0.031	0.046	0.062
25×30 / 30×25	3.4	Air Volume (CFM)	1020	1360	1700	2040
25×30 / 30×25	3.4	Static Pressure (in. w.g.)	0.017	0.031	0.048	0.064
20×40 / 25×32 / 32×25 / 40×20	3.6	Air Volume (CFM)	1080	1440	1800	2160
20×40 / 25×32 / 32×25 / 40×20	3.6	Static Pressure (in. w.g.)	0.012	0.03	0.045	0.058
30×30	4.02	Air Volume (CFM)	1206	1608	2010	2412
30×30	4.02	Static Pressure (in. w.g.)	0.015	0.03	0.045	0.06
36×36	5.85	Air Volume (CFM)	1755	2340	2925	3510
36×36	5.85	Static Pressure (in. w.g.)	0.015	0.03	0.042	0.058
