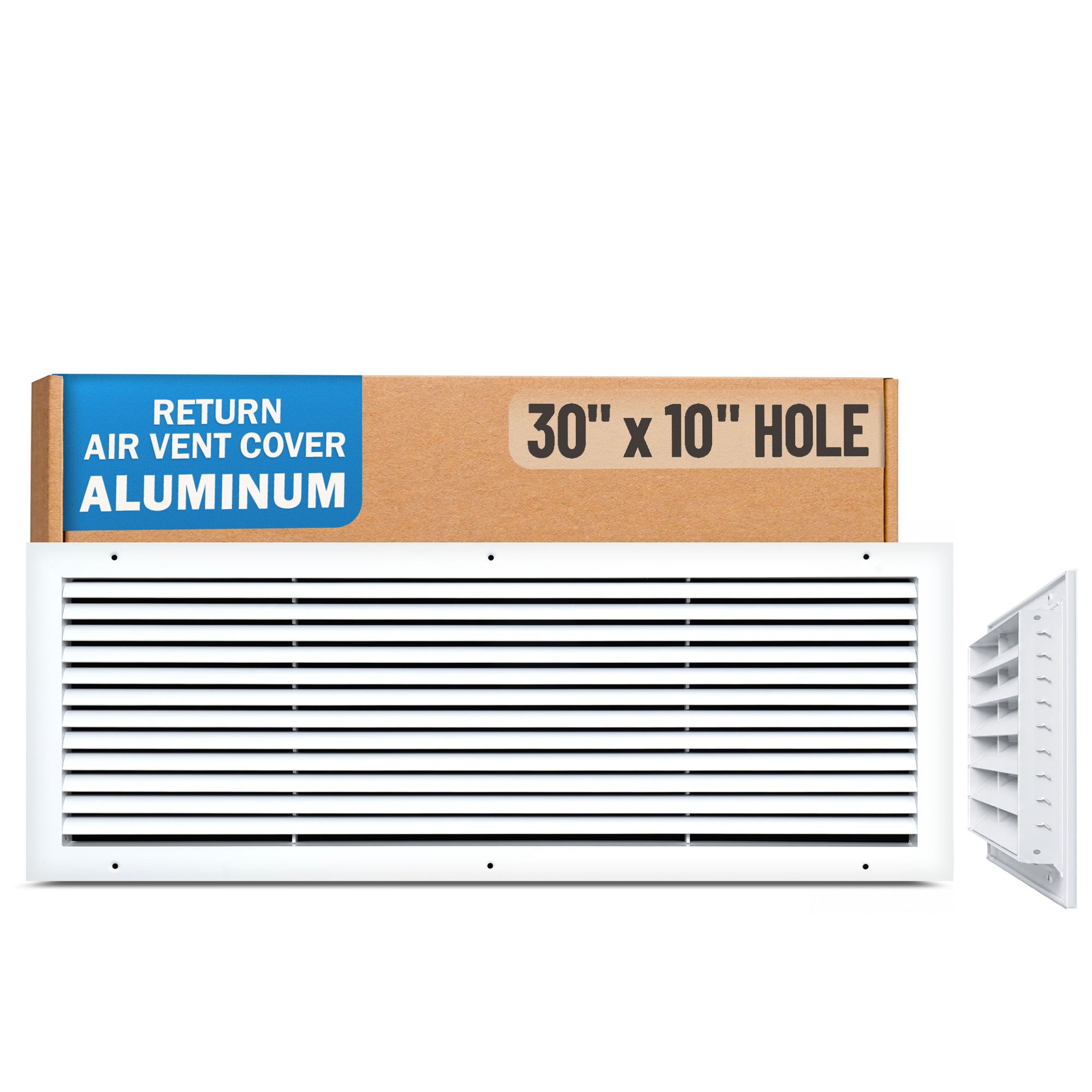

30 x 10-inch White Aluminum bar return grille, packaging
30 x 10-inch White Aluminum bar return grille, front view 2
30 x 10-inch White Aluminum bar return grille, frame corner detail
30 x 10-inch White Aluminum bar return grille, louver detail
30 x 10-inch White Aluminum bar return grille, frame profile detail
30 x 10-inch White Aluminum bar return grille, louver detail 2
30 x 10-inch White Aluminum bar return grille, front view
30 x 10-inch White Aluminum bar return grille, dimensions
30 x 10-inch White Aluminum bar return grille, angled view
30 x 10-inch White Aluminum bar return grille, packaging
30 x 10-inch White Aluminum bar return grille, front view 2
30 x 10-inch White Aluminum bar return grille, frame corner detail
30 x 10-inch White Aluminum bar return grille, louver detail
30 x 10-inch White Aluminum bar return grille, frame profile detail
30 x 10-inch White Aluminum bar return grille, louver detail 2

Item # 110108-19

30"x10" White Aluminum Rust-Free Return Air Grille, High-Airflow HVAC Cold Air Intake for Wall & Ceiling

$70.69
$0.00
$70.69
Order By Duct Opening Measurements30"W x 10"H
Outer Dimensions 31-13/16"W X 11-13/16"H overall faceplate size
Bulk Pricing
2-1011-2021-4950+100+
$67.16$65.04$62.92$60.09
Subtotal:
209 in stock - ready to ship

Available Sizes & Options

See all Aluminum Bar Return Grilles →
30 x 10-inch White Aluminum bar return grille, front view

30"x10" White Aluminum Rust-Free Return Air Grille, High-Airflow HVAC Cold Air Intake for Wall & Ceiling

$70.69
30 x 10-inch White Aluminum bar return grille, front view
30 x 10-inch White Aluminum bar return grille, dimensions
30 x 10-inch White Aluminum bar return grille, angled view
30 x 10-inch White Aluminum bar return grille, packaging
30 x 10-inch White Aluminum bar return grille, front view 2
30 x 10-inch White Aluminum bar return grille, frame corner detail
30 x 10-inch White Aluminum bar return grille, louver detail
30 x 10-inch White Aluminum bar return grille, frame profile detail
30 x 10-inch White Aluminum bar return grille, louver detail 2

30"x10" White Aluminum Rust-Free Return Air Grille, High-Airflow HVAC Cold Air Intake for Wall & Ceiling

$70.69
Description
Description
x

Product Overview

The 30"W x 10"H white aluminum linear bar grille carries return air back to the HVAC system through a ceiling and sidewall opening. Extruded aluminum resists rust in humid rooms, a stronger choice than lightweight plastic covers. Select this linear bar grille by its duct opening size, not the overall face size, so it seats correctly on the first fit.

Key Features

  • Aluminum construction: Aluminum keeps the linear bar grille rigid during installation and resists warping over time.
  • White finish: The white finish coordinates with common flooring, trim, and hardware.
  • Right-fit sizing: Ordered by duct opening size, this linear bar grille matches standard duct dimensions and cuts wrong-size returns.

Dimensions and Specifications

Product type Linear Bar Grille
Airflow function Return air
Nominal opening 30"W x 10"H
Overall face dimensions 31-13/16"W X 11-13/16"H
Material Aluminum
Finish White
Mounting location Ceiling and Sidewall
Airflow control Fixed
Order by Duct Opening
Pack quantity 1
MPN 110108-19
Brand AirGrilles.com

Is This the Right Vent for Your Opening?

Choose this linear bar grille if you need a return-air vent for a ceiling or sidewall opening. This linear bar grille carries return air and mounts on ceiling and sidewall surfaces. It is not designed for floor installation or foot traffic, exterior or outdoor use or dryer exhaust venting. Confirm the airflow function against your HVAC layout before ordering.

How to Measure for This Vent

Remove the existing vent and measure the width and height of the duct opening, not the outer face of the old cover. Match those two numbers to the nominal size above. The overall face measures 31-13/16"W X 11-13/16"H.

Installation

Position the linear bar grille over the duct opening with the bar face facing the room. Confirm the frame sits flush against the ceiling surface before marking the screw points. Secure it with the included screws without overtightening, since excess force can distort the frame.

What's Included

  • 1 x linear bar grille
  • Mounting screws

Ductwork, wall anchors, and installation tools are not included.

Care and Maintenance

Clean the linear bar grille with a soft, damp cloth and mild soap. Avoid abrasive chemicals that can damage the white finish. Dry the surface to keep moisture off the metal.

Compare Similar Options

Use this comparison to confirm the linear bar grille matches your opening and airflow need.

Option Best for Material Installation
This linear bar grille Return-air openings Aluminum Wall or ceiling
Return air filter grille Returns that hold a 1-inch filter Steel Wall or ceiling
Eggcrate return grille High-airflow commercial returns Aluminum Ceiling
Shipping & Return
Shipping & Return
x

Shipping

  • Free shipping over $250 (contiguous US). Otherwise calculated at checkout.
  • Order by 11:00 AM ET on a business day and it ships the same day — otherwise the next business day.
  • Delivery in about 4–5 days after dispatch (FedEx / UPS), with tracking emailed when your order ships.
  • US only. We cannot ship to P.O. boxes or APO/FPO addresses.

Returns

  • 30-day returns. Item must be unused and in its original packaging; opened packages incur a 20% restocking fee.
  • Start a return from your account or at help@airgrilles.com (authorization required). We email a prepaid return label and deduct return shipping from your refund (free if the return is our error); refunds are issued within 5 business days of approval.
  • Damaged, defective, wrong, or lost item? Tell us within 7 days with photos and your order number.
Technical Data
Technical Data
x

Airflow Performance Data

Duct Size (in)Ak (sq ft)MetricFace Velocity (FPM)
400.0500.0600.0700.0800.0900.01000.0
16×12 / 24×80.90Air Volume (CFM)360450540630720810900
Static Pressure (in. w.g.)0.0210.0320.0460.0620.0780.10.122
14×140.92Air Volume (CFM)368460552644736828920
Static Pressure (in. w.g.)0.020.0320.0460.0620.0790.1020.125
24×101.14Air Volume (CFM)45657068479891210261140
Static Pressure (in. w.g.)0.020.0320.0460.0620.0780.10.125
16×161.22Air Volume (CFM)48861073285497610981220
Static Pressure (in. w.g.)0.0210.0320.0450.0610.0780.1020.125
14×20 / 20×141.34Air Volume (CFM)536670804938107212061340
Static Pressure (in. w.g.)0.0220.0350.0510.0670.0840.1120.136
12×24 / 16×18 / 36×8 / 24×121.38Air Volume (CFM)552690828966110412421380
Static Pressure (in. w.g.)0.0150.0220.0320.0430.0550.070.085
16×20 / 20×161.54Air Volume (CFM)6167709241078123213861540
Static Pressure (in. w.g.)0.0190.0290.0410.0550.070.0920.113
18×181.56Air Volume (CFM)6247809361092124814041560
Static Pressure (in. w.g.)0.020.0320.0460.0620.0790.1020.124
14×24 / 24×141.62Air Volume (CFM)6488109721134129614581620
Static Pressure (in. w.g.)0.020.0320.0460.0610.0760.1020.124
14×251.69Air Volume (CFM)67684510141183135215211690
Static Pressure (in. w.g.)0.020.0320.0450.0610.0760.1020.124
12×30 / 20×18 / 30×121.74Air Volume (CFM)69687010441218139215661740
Static Pressure (in. w.g.)0.0130.020.0290.0390.0490.0630.077
24×161.86Air Volume (CFM)74493011161302148816741860
Static Pressure (in. w.g.)0.020.0320.0460.0630.0810.1020.126
20×201.94Air Volume (CFM)77697011641358155217461940
Static Pressure (in. w.g.)0.0210.0320.0460.0620.0790.1020.124
14×30 / 30×142.04Air Volume (CFM)816102012241428163218362040
Static Pressure (in. w.g.)0.0180.0290.0410.0550.0680.0920.112
18×24 / 24×182.10Air Volume (CFM)840105012601470168018902100
Static Pressure (in. w.g.)0.020.030.0450.0620.0780.1020.124
20×24 / 24×20 / 30×162.34Air Volume (CFM)936117014041638187221062340
Static Pressure (in. w.g.)0.020.0320.0460.0620.0790.1020.124
20×25 / 25×202.44Air Volume (CFM)976122014641708195221962440
Static Pressure (in. w.g.)0.0210.0320.0450.0620.0790.1010.124
18×30 / 30×182.64Air Volume (CFM)1056132015841848211223762640
Static Pressure (in. w.g.)0.0210.0320.0450.0620.0790.1010.124
20×282.74Air Volume (CFM)1096137016441918219224662740
Static Pressure (in. w.g.)0.020.0320.0450.0620.0780.1020.124
24×242.82Air Volume (CFM)1128141016921974225625382820
Static Pressure (in. w.g.)0.0210.0320.0480.0640.0860.1060.128
20×30 / 30×202.94Air Volume (CFM)1176147017642058235226462940
Static Pressure (in. w.g.)0.020.0320.0450.0620.0780.1010.124
36×183.18Air Volume (CFM)1272159019082226254428623180
Static Pressure (in. w.g.)0.0220.0340.050.0680.0940.120.134
24×303.54Air Volume (CFM)1416177021242478283231863540
Static Pressure (in. w.g.)0.0220.0340.050.0670.090.1110.134
36×244.26Air Volume (CFM)1704213025562982340838344260
Static Pressure (in. w.g.)0.0260.0390.0560.0780.1040.130.155
Values are given across face velocities (FPM). Ak = effective area, An = neck area. Static pressure in inches of water gauge (in. w.g.); throw in feet. The highlighted row is this product’s size. A dash (–) means the value is not published.
