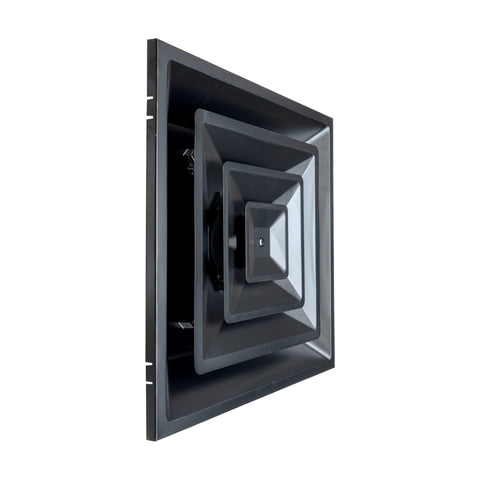

Fits 24"x24" Black Steel T-Bar Drop Ceiling Diffuser, 2x2 Lay-In 3-Cone, 8" Round Neck

Product Overview

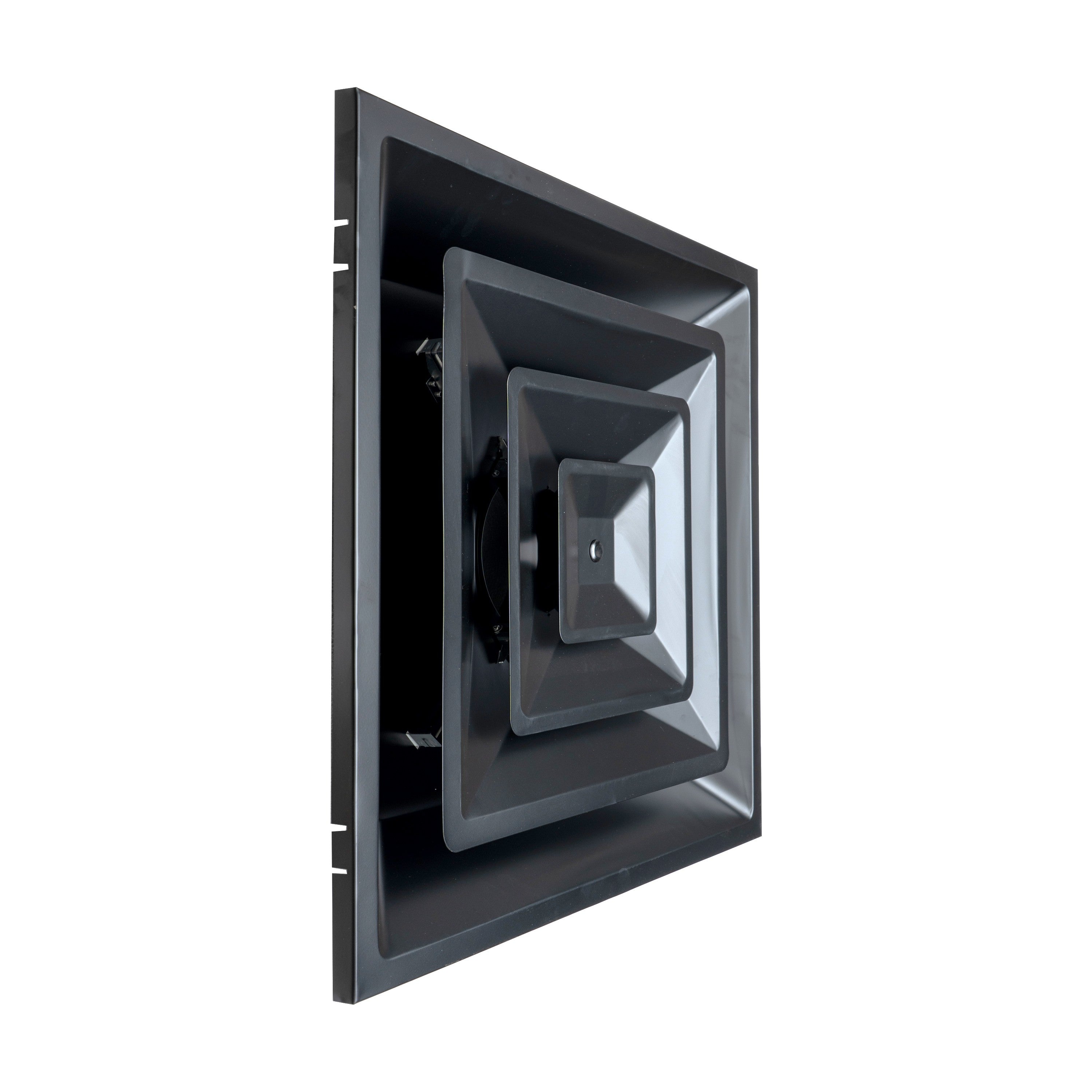

The 24"W x 24"H black steel T-bar cone diffuser carries supply air into the room through a ceiling opening. Powder-coated steel resists dents and rust for years of use, a stronger choice than lightweight plastic covers. Select this T-bar cone diffuser by its neck size size, not the overall face size, so it seats correctly on the first fit.

Key Features

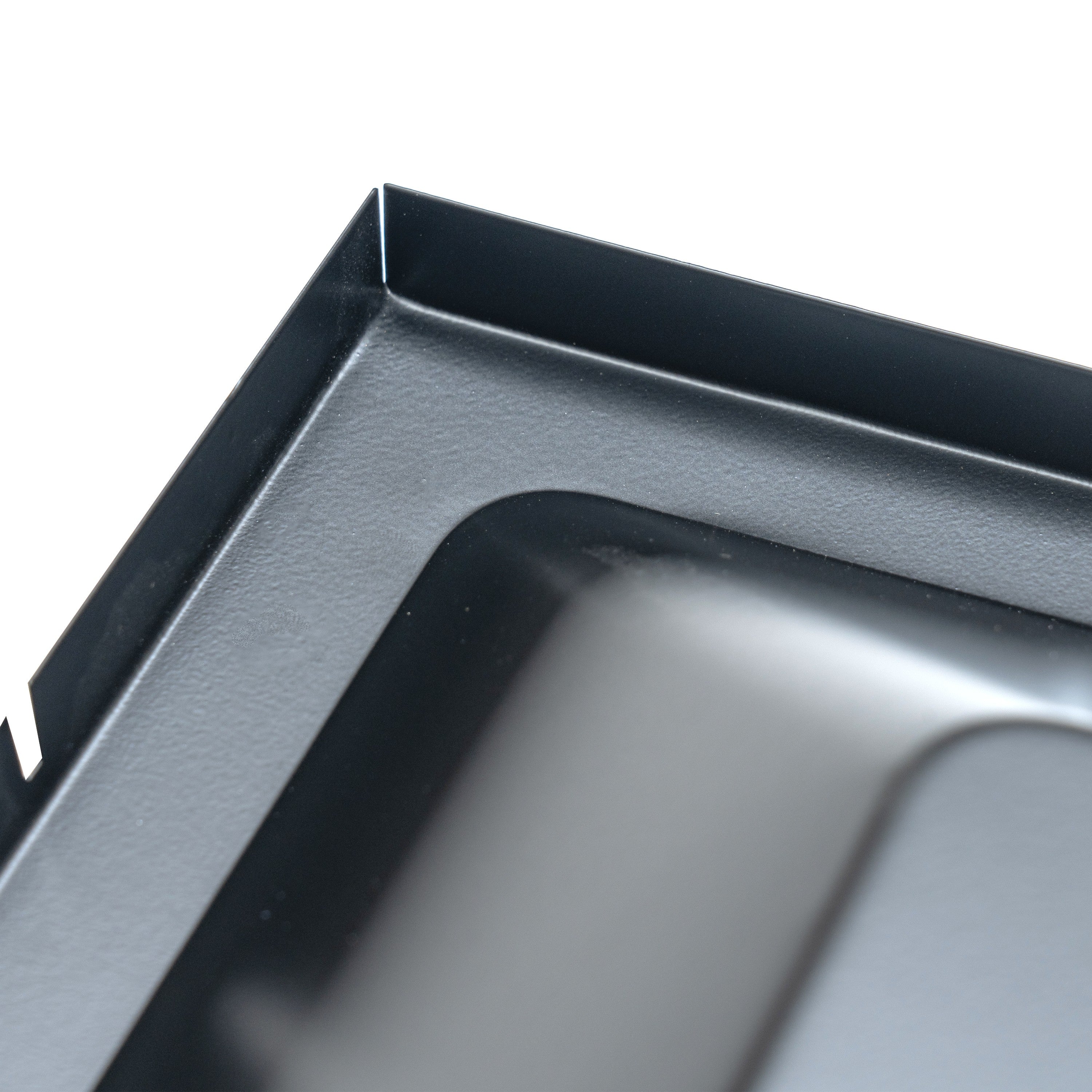

• Steel construction: Steel keeps the T-bar cone diffuser rigid during installation and resists warping over time.
• Black finish: The black finish coordinates with common flooring, trim, and hardware.

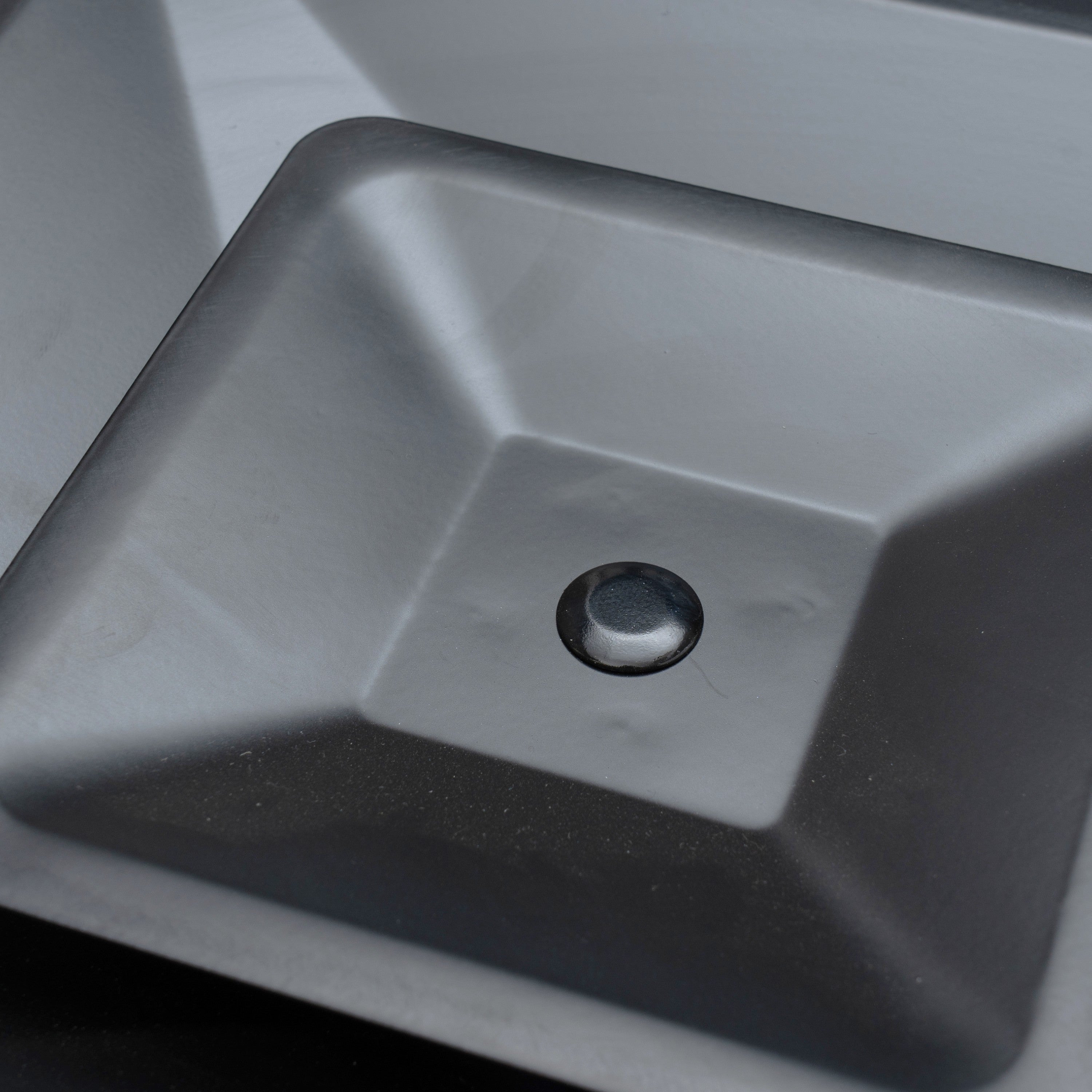

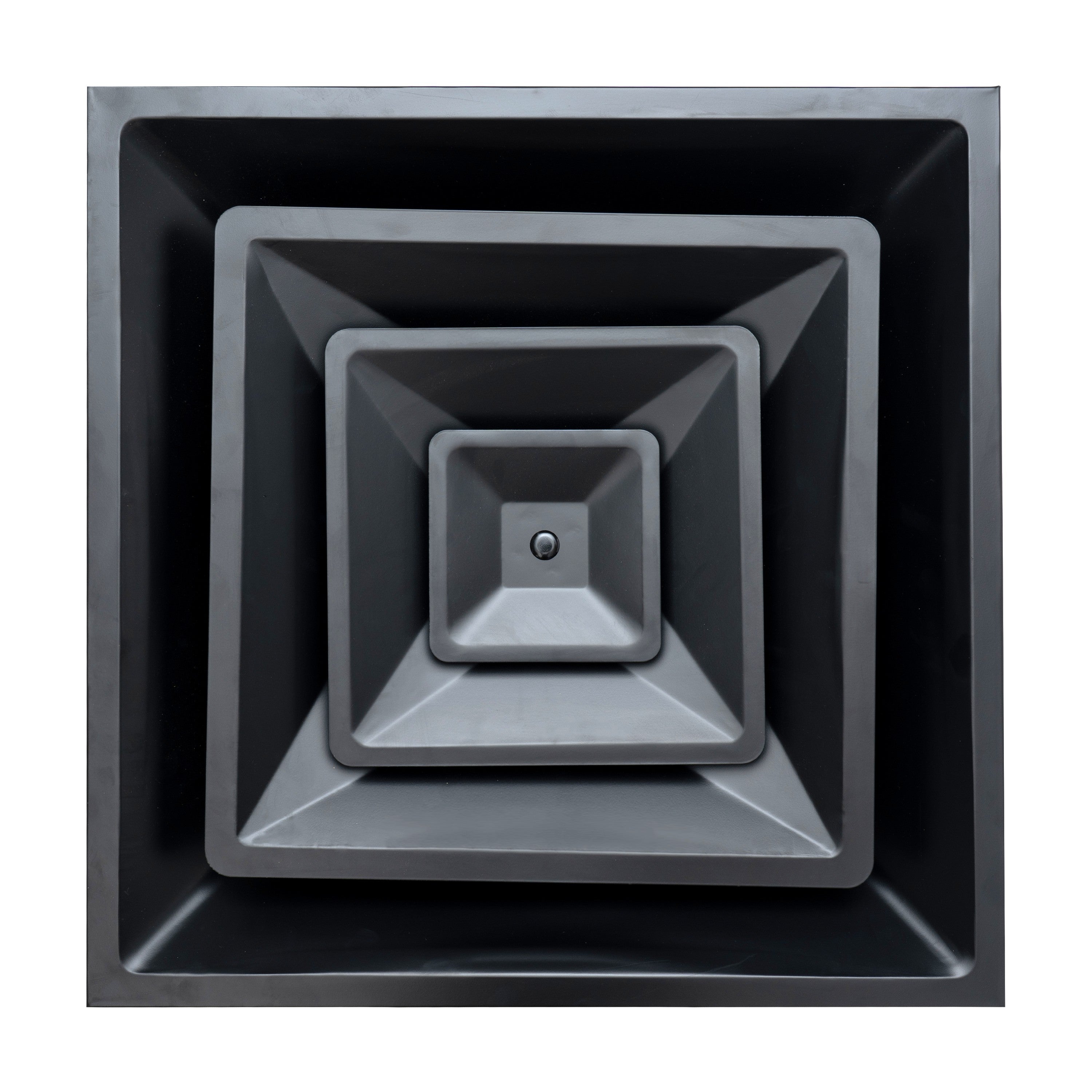

• 3 Coned cone: The 3 coned configuration widens the supply-air throw across the ceiling.
• Right-fit sizing: Ordered by neck size, this T-bar cone diffuser matches standard duct dimensions and cuts wrong-size returns.

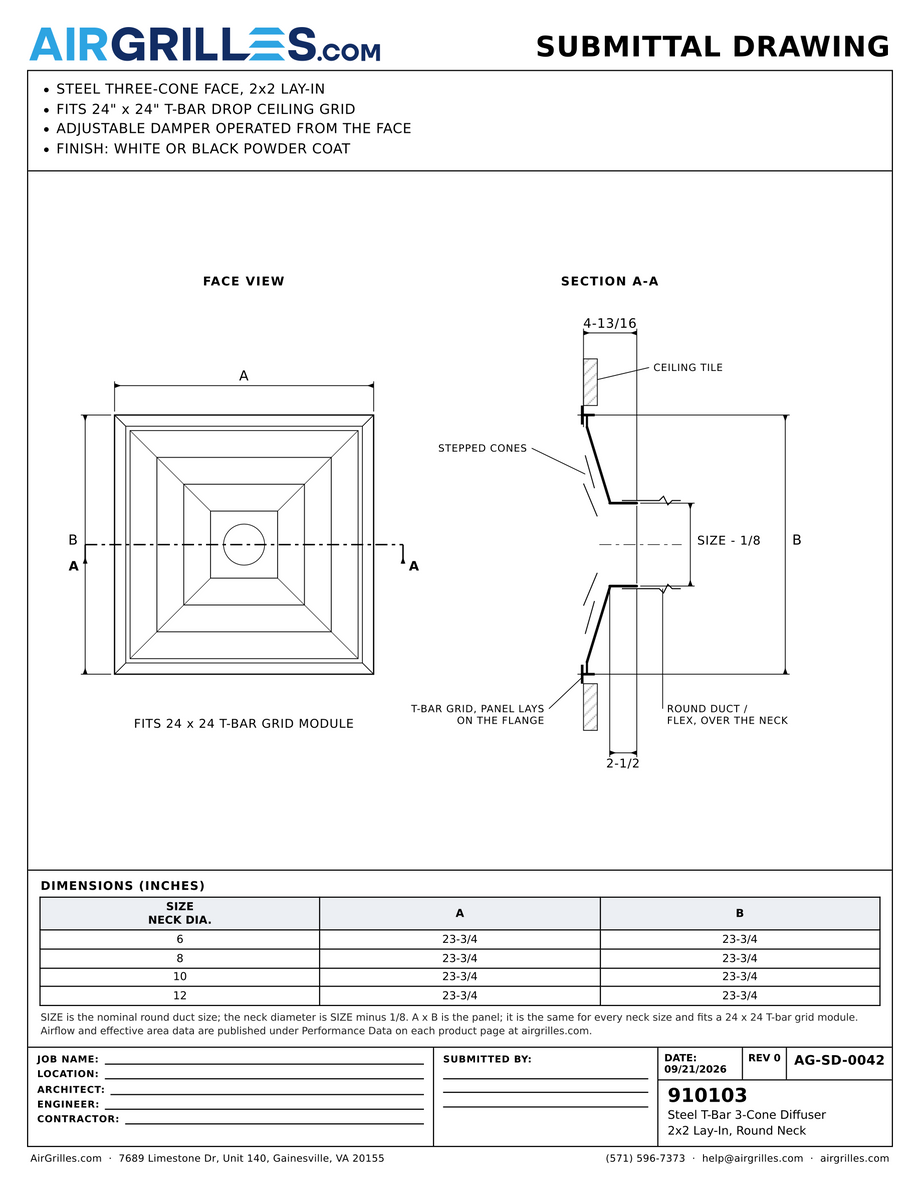

Dimensions and Specifications

Is This the Right Vent for Your Opening?

Choose this T-bar cone diffuser if you need a supply-air vent for a ceiling opening. This T-bar cone diffuser carries supply air and mounts on ceiling surfaces. It is not designed for floor installation or foot traffic, exterior or outdoor use, dryer exhaust venting or use as a filter-holding return grille. Confirm the airflow function against your HVAC layout before ordering. It drops into a standard 24x24 inch (2 feet by 2 feet) T-bar ceiling grid.

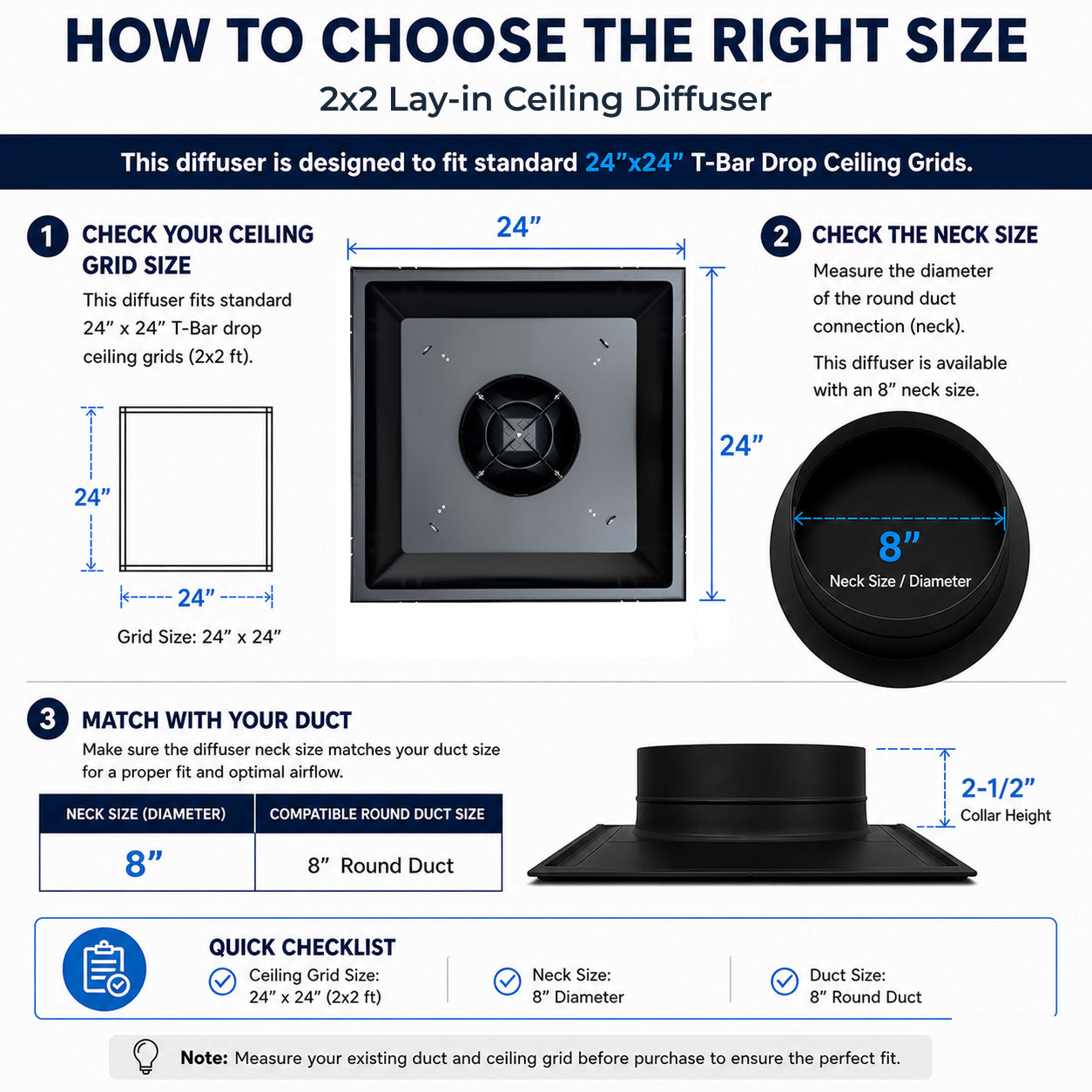

How to Measure for This Vent

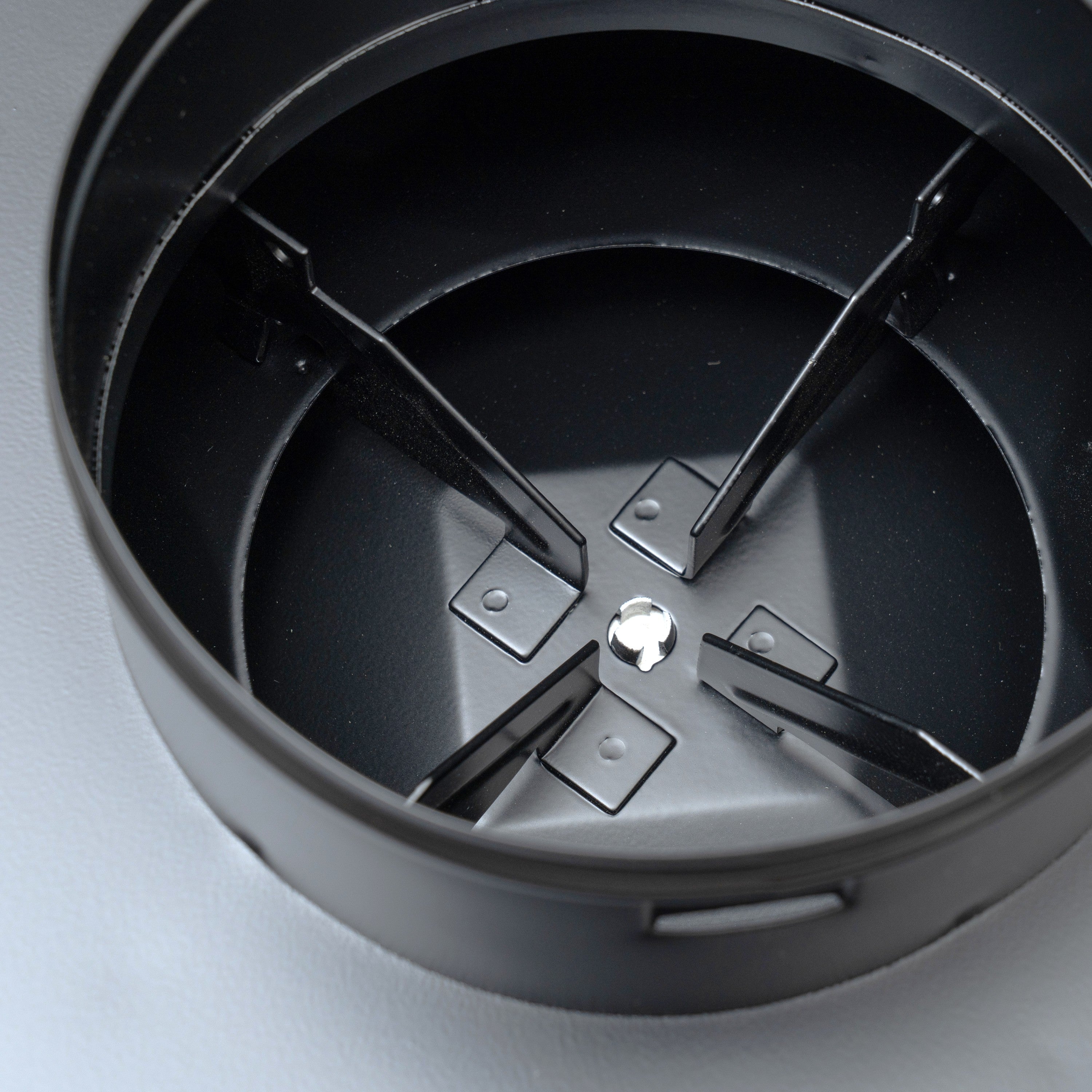

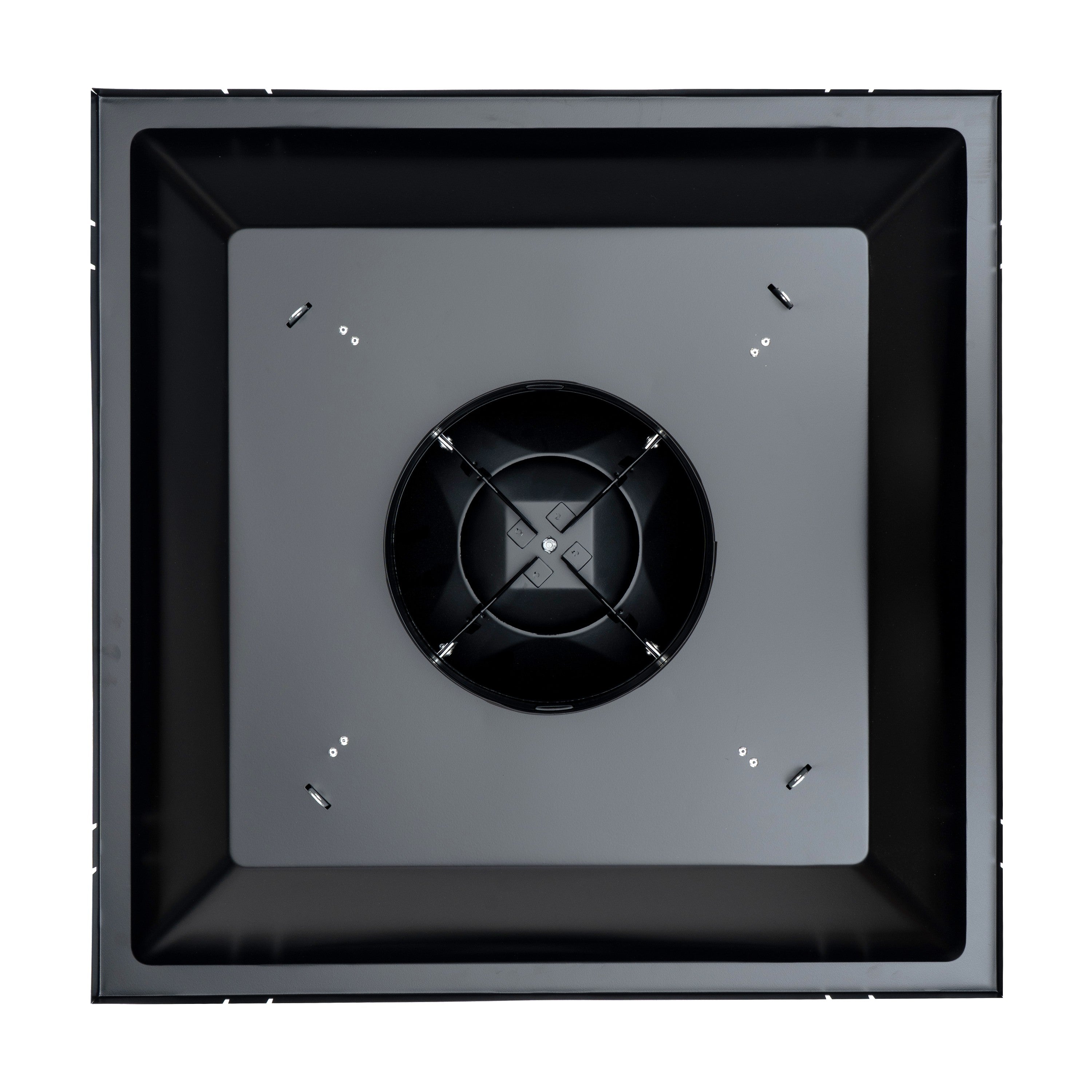

This diffuser drops into a standard 24 x 24 inch T-bar ceiling grid. Confirm your grid openings are 2 by 2 feet, then match the 24"W x 24"H neck to your duct collar. The panel face measures 23-3/4"W x 23-3/4"H.

Installation

Position the T-bar cone diffuser over the duct neck opening with the louvers facing the room. Confirm the frame sits flush against the ceiling surface before marking the screw points. Secure it with the included screws without overtightening, since excess force can distort the frame.

What's Included

• 1 x T-bar cone diffuser
• Mounting screws

Ductwork, wall anchors, and installation tools are not included.

Care and Maintenance

Clean the T-bar cone diffuser with a soft, damp cloth and mild soap. Avoid abrasive chemicals that can damage the black finish. Dry the surface to keep moisture off the metal.

Compare Similar Options

Use this comparison to confirm the t-bar cone diffuser matches your opening and airflow need.
