Item # 310106-1

12"x6" White Steel Triangular Baseboard Grille, Efficient Airflow, 3-13/16" Depth

$11.09
$0.00
$11.09
Order By Duct Opening Measurements12"W x 6"H
Outer Dimensions 13-3/4"W X 6-5/8"H overall faceplate size
Bulk Pricing
2-1011-2021-4950+100+
$9.43$8.88$8.32$7.77
Subtotal:
151 in stock - ready to ship

Available Sizes & Options

See all Steel Triangle Baseboard Return Grilles →
12 x 6-inch White Steel triangle baseboard return grille, angled view

12"x6" White Steel Triangular Baseboard Grille, Efficient Airflow, 3-13/16" Depth

$11.09
12 x 6-inch White Steel triangle baseboard return grille, angled view
12 x 6-inch White Steel triangle baseboard return grille, angled view 2
12 x 6-inch White Steel triangle baseboard return grille, front view
12 x 6-inch White Steel triangle baseboard return grille, rear view
12 x 6-inch White Steel triangle baseboard return grille, dimensions
12 x 6-inch White Steel triangle baseboard return grille, louver detail
12 x 6-inch White Steel triangle baseboard return grille, louver detail 2
12 x 6-inch White Steel triangle baseboard return grille, mounting screw detail
12 x 6-inch White Steel triangle baseboard return grille, frame corner detail
12 x 6-inch White Steel triangle baseboard return grille, frame corner detail 2

12"x6" White Steel Triangular Baseboard Grille, Efficient Airflow, 3-13/16" Depth

$11.09
Description
Description
x

Product Overview

The 12"W x 6"H white steel triangle baseboard return grille carries return air back to the HVAC system through a baseboard opening. Powder-coated steel resists dents and rust for years of use, a stronger choice than lightweight plastic covers. The 1-way blade pattern directs air across the room. Select this triangle baseboard return grille by its duct opening size, not the overall face size, so it seats correctly on the first fit.

Key Features

  • Steel construction: Steel keeps the triangle baseboard return grille rigid during installation and resists warping over time.
  • White finish: The white finish coordinates with common flooring, trim, and hardware.
  • 1-Way air pattern: The 1-way throw sends conditioned air where the space needs it.
  • Right-fit sizing: Ordered by duct opening size, this triangle baseboard return grille matches standard duct dimensions and cuts wrong-size returns.

Dimensions and Specifications

Product type Triangle Baseboard Return Grille
Airflow function Return air
Nominal opening 12"W x 6"H
Overall face dimensions 13-3/4"W X 6-5/8"H
Material Steel
Finish White
Mounting location Baseboard
Airflow pattern 1-Way
Airflow control Fixed
Order by Duct Opening
Pack quantity 1
MPN 310106-1
Brand AirGrilles.com

Is This the Right Vent for Your Opening?

Choose this triangle baseboard return grille if you need a return-air vent for a baseboard opening. This triangle baseboard return grille carries return air and mounts on baseboard surfaces. It is not designed for floor installation or foot traffic, exterior or outdoor use or dryer exhaust venting. Confirm the airflow function against your HVAC layout before ordering.

How to Measure for This Vent

Measure the open space between the baseboard and the floor where air passes, then match it to the 12"W x 6"H size above. Do not measure the outer flange. The overall face measures 13-3/4"W X 6-5/8"H.

Installation

Position the triangle baseboard return grille over the duct opening with the finished face facing the room. Confirm the frame sits flush against the baseboard surface before marking the screw points. Secure it with the included screws without overtightening, since excess force can distort the frame.

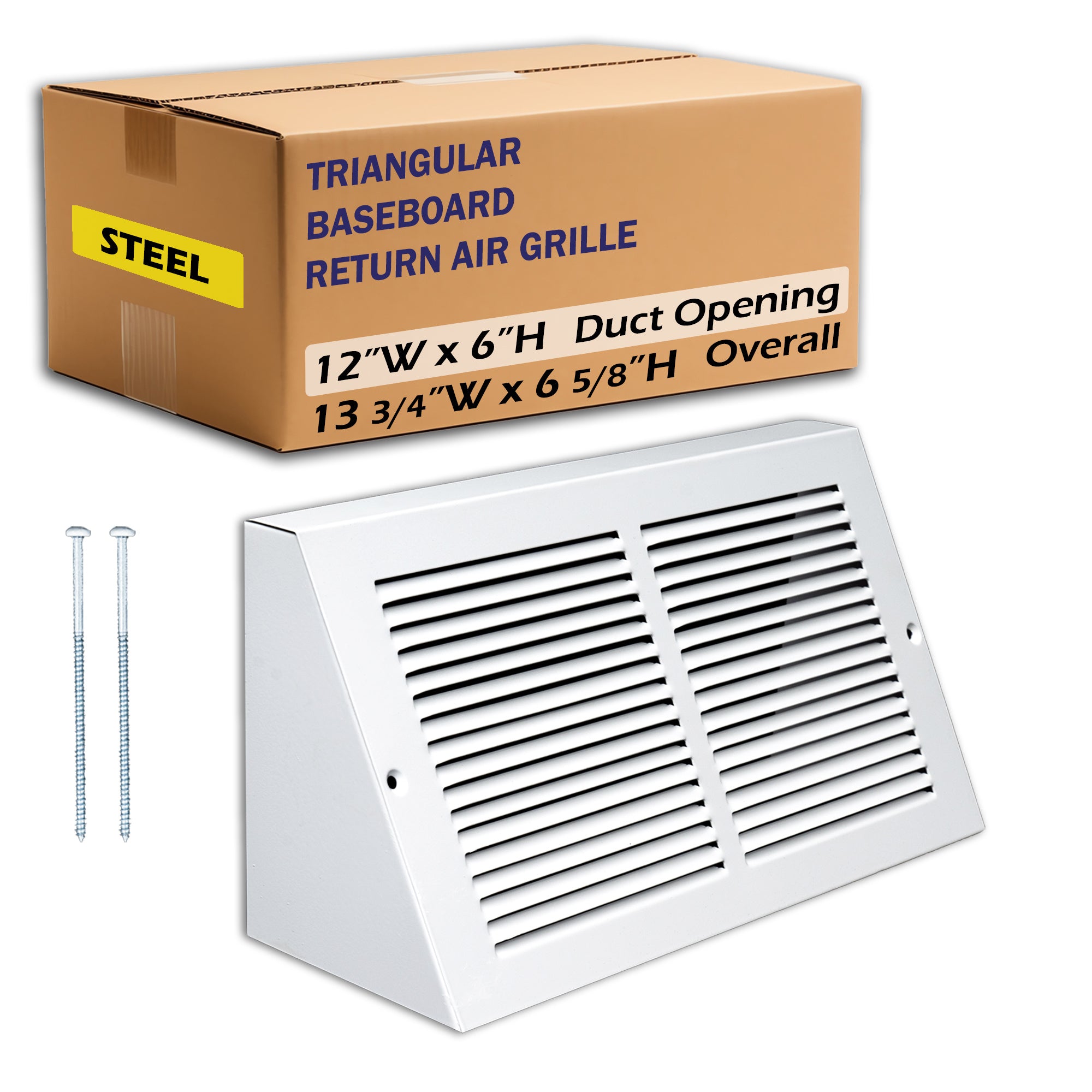

What's Included

  • 1 x triangle baseboard return grille
  • Mounting screws

Ductwork, wall anchors, and installation tools are not included.

Care and Maintenance

Clean the triangle baseboard return grille with a soft, damp cloth and mild soap. Avoid abrasive chemicals that can damage the white finish. Dry the surface to keep moisture off the metal.

Compare Similar Options

Use this comparison to confirm the triangle baseboard return grille matches your opening and airflow need.

Option Best for Material Installation
This triangle baseboard return grille Baseboard return openings Steel Baseboard
Return air filter grille Returns that hold a 1-inch filter Steel Wall or ceiling
Eggcrate return grille High-airflow commercial returns Aluminum Ceiling
